Lubrication Recommendations

Check and lubricate all components at the intervals outlined in the Periodic Maintenance Chart beginning on Periodic Maintenance Chart, or more often under severe use, such as wet or dusty conditions. Items not listed in the chart should be lubricated at the general lubrication interval.

Item Lube Method
Engine Oil

PS-4 5W-50 4-Cycle Oil and PS-4 Extreme Duty 0W-50 4-Cycle Oil

 See Oil and Filter Change.
Brake Fluid

DOT 4 Brake Fluid

 Maintain level between fill lines. See Brake Fluid.
Transmission Oil (Main Gearcase)

AGL Gearcase Lubricant & Transmission Fluid

 See Transmission (Main Gearcase).
Front Gearcase Fluid (Demand Drive)

Demand Drive Fluid

 See Demand Drive Fluid Check.
Prop Shaft

U-Joint Grease

Access through the skid plate access hole. Grease the fitting.
Rear Stabilizer Bar Bushings

All Season Grease or grease conforming to NLGI No. 2

Remove engine access panel and grease 2 fittings (one on each side of vehicle).

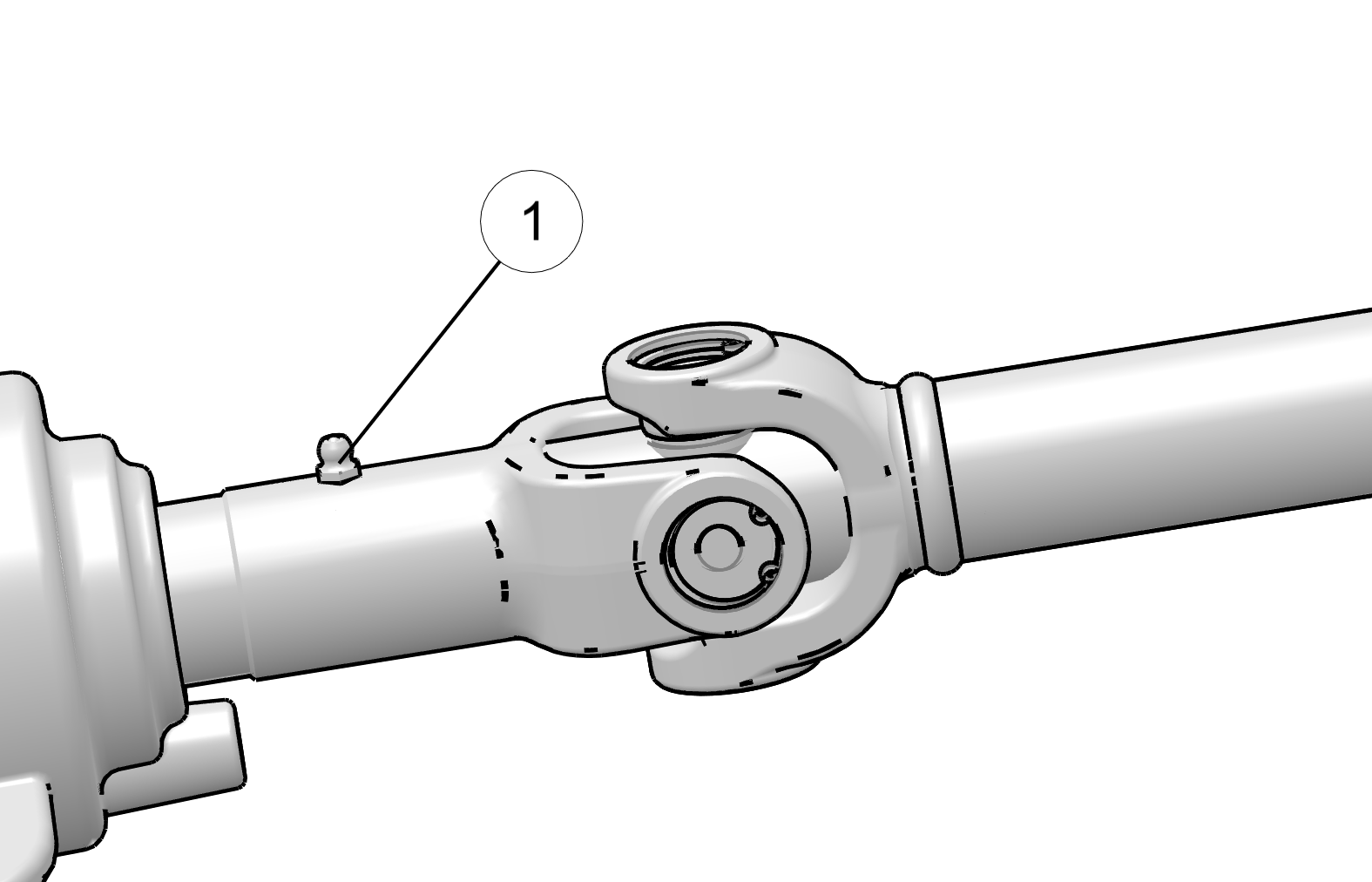

  • 1 Middle Prop Shaft Grease Fitting

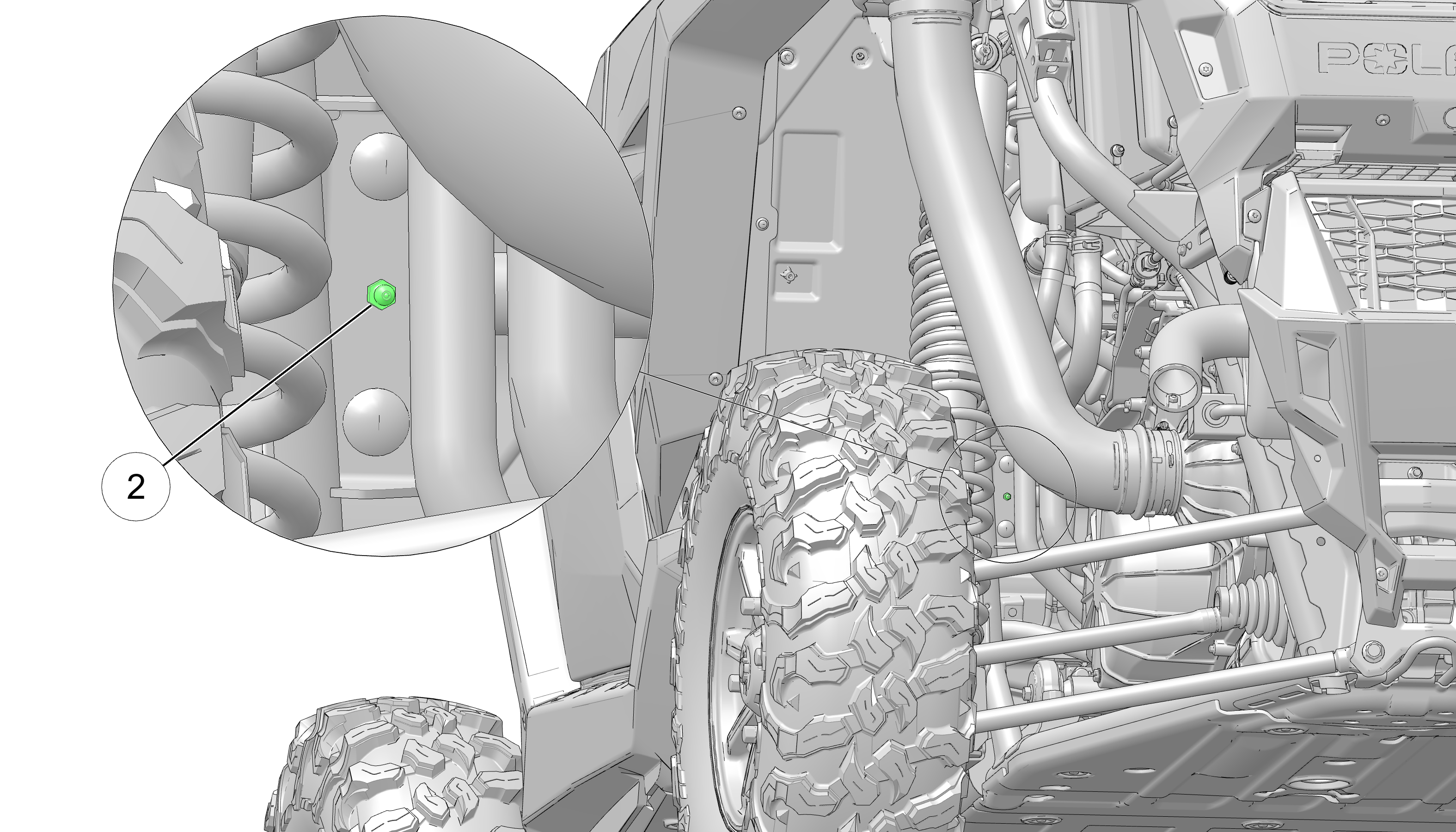

  • 2 Rear Stabilizer Bar Bushings (one on each side of vehicle)
