Seat Adjustments

Driver’s Seat Adjustment

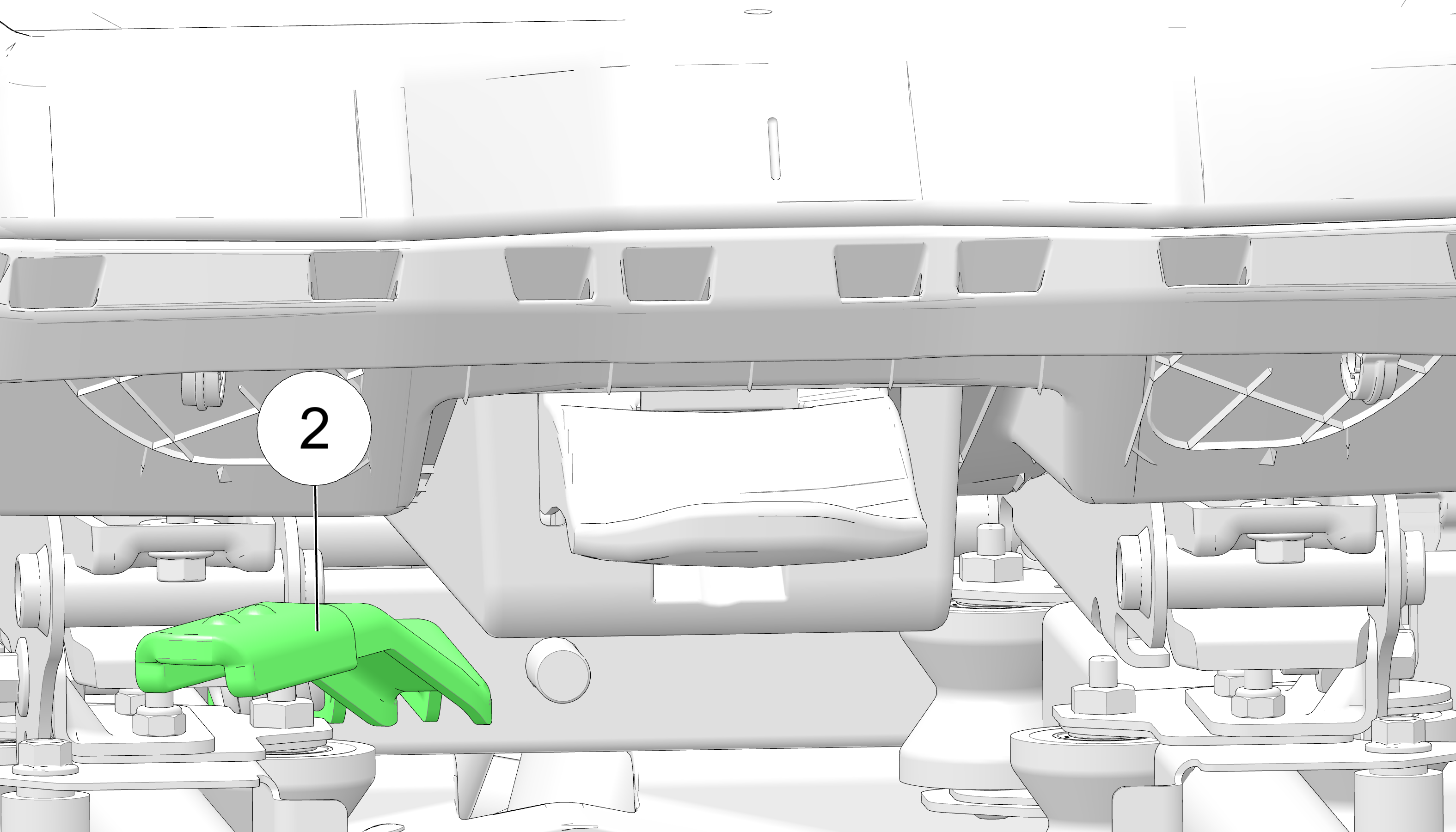

On seats equipped with an adjustment lever 2 under the front edge of the seat, pull the lever to the left. Slide the seat forward or rearward to the desired position. Release the lever. The seat will lock into the new position.

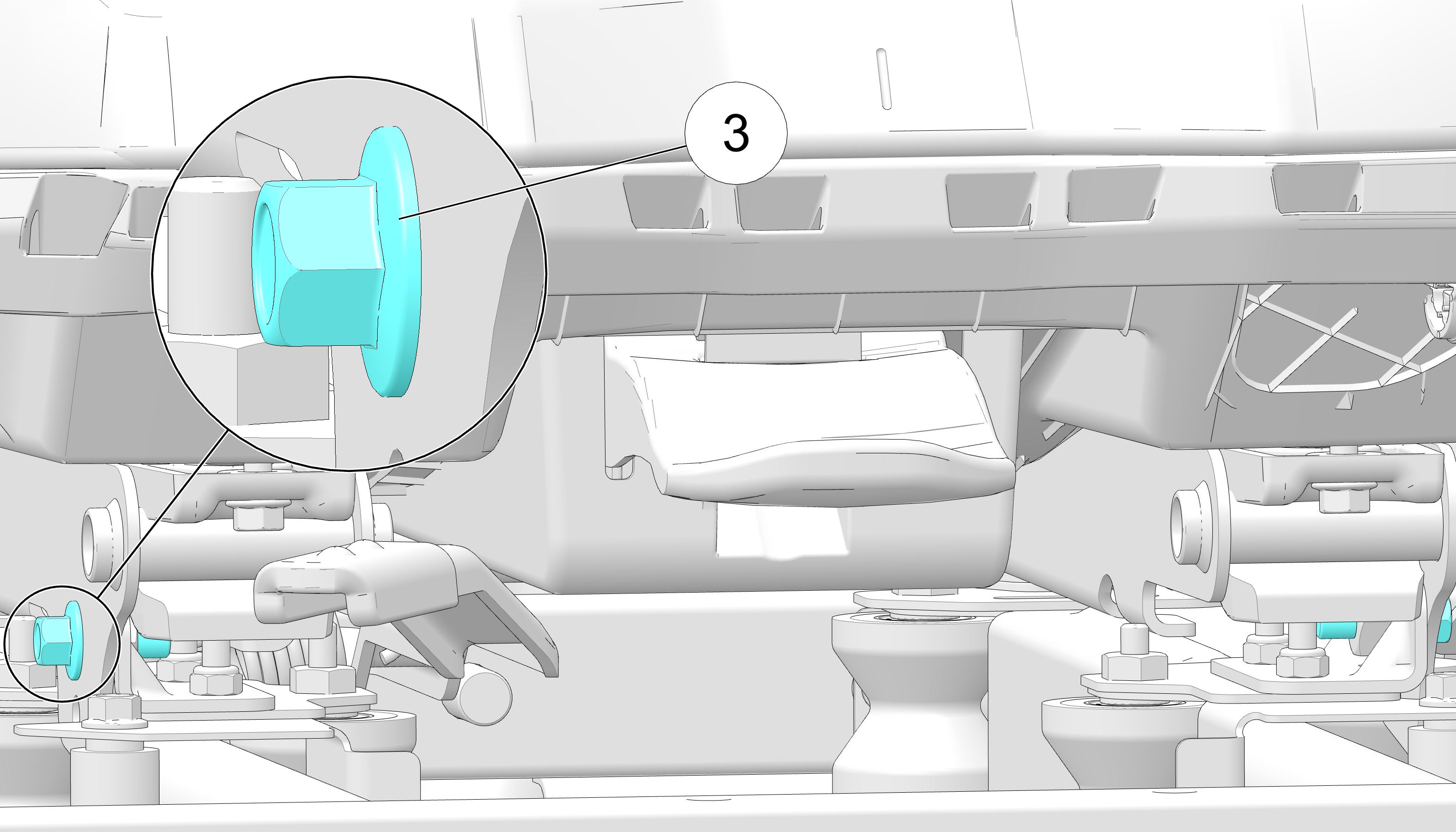

To adjust seat tilt, adjustment bolts can be removed and re-installed at a different tilt setting. The driver side has two adjustment bolts 3, one on each side, and has two tilt hole options. Re-install the bolts to specification when finished with adjustments.
