Rear Seat Removal

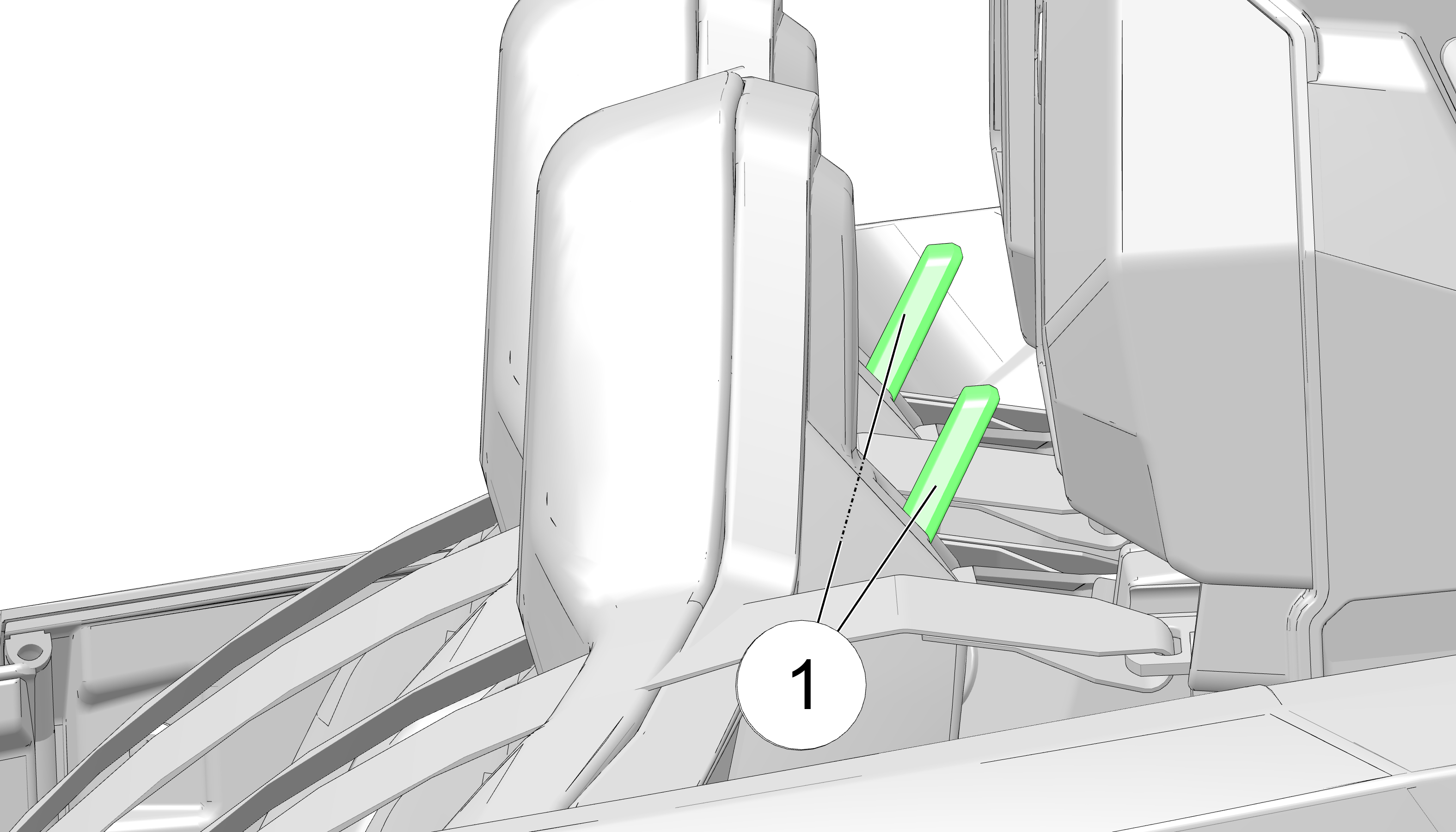

  1. Reach behind the headrest and pull on the latch1 to release the seat back.

    OPTIONAL: The seat back can be removed entirely or reinstalled once seat base is flipped, depending on preference.

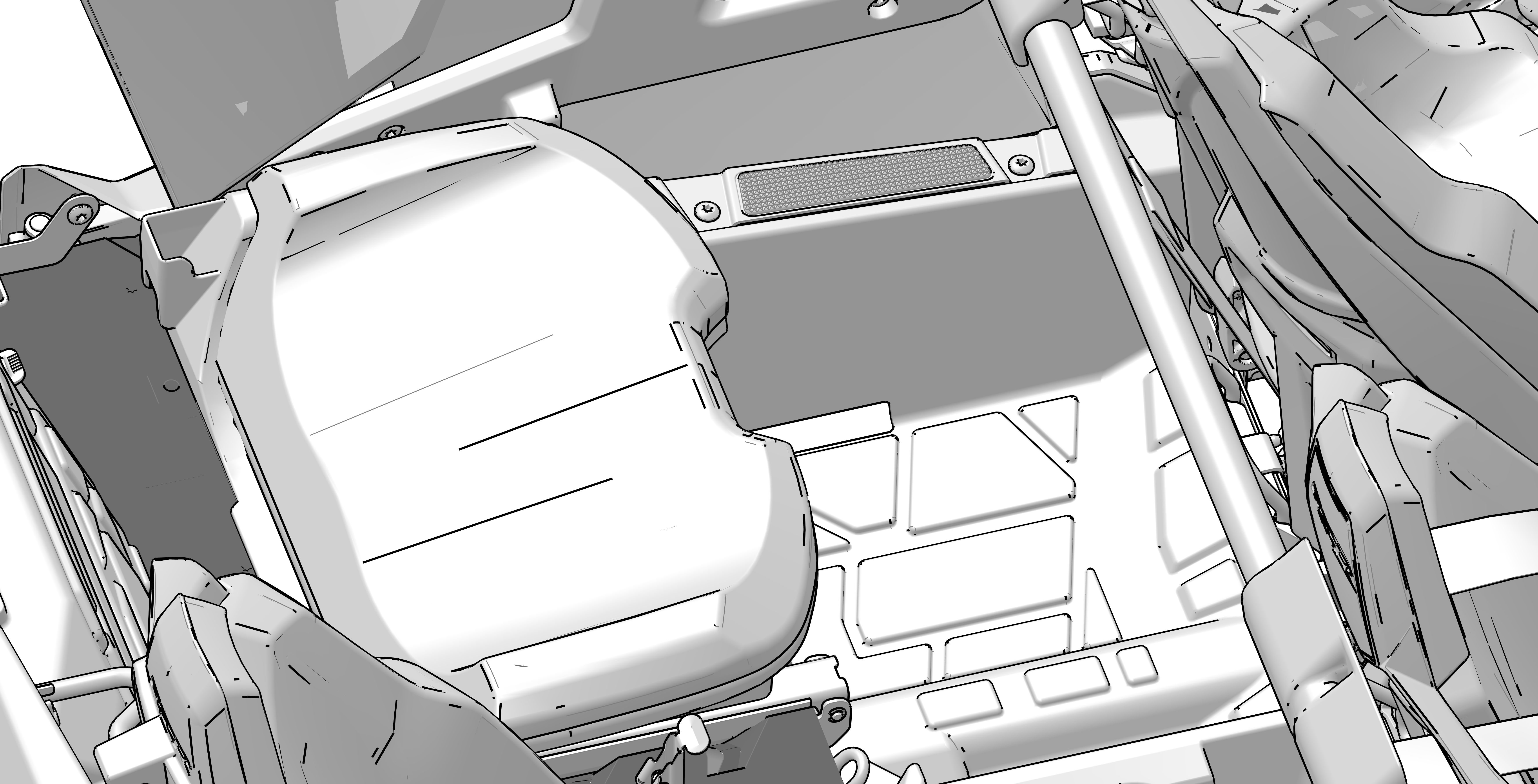

  2. Once the seat back is removed, grab one of the straps2 at the rear of the seat base.

  3. Use the straps to pull upward and flip the seat base completely over.

  4. To reinstall the seat back, align the bottom stems with their appropriate housings. Once aligned, push the seat headrest back until the latch makes an audible ‘click’ sound.

Parent topic: Seats
