Spare Belt Holder / Tools

A driven clutch L-wrench and a spare belt container are provided with the snowmobile. The spare belt holder has provisions for two spark plugs and is secured to the front bumper with the spark plug / Torx screw tool. Open the left side panel to access the tools.

The L-wrench 1 is used to open and close the driven clutch when working with the drive belt. The L-wrench, when properly engaged in the bracket, secures the fender to the console. To retrieve the L-wrench, rotate it counterclockwise and slide it upward from the bracket. When it’s not in use, return the L-wrench to the bracket and rotate it clockwise.

To retrieve the spark plug wrench 2, rotate it counterclockwise and slide it outward from the bracket. When it’s not in use, return the spark plug wrench to the bracket and rotate it clockwise.

The spare belt holder 3 is attached to the clutch guard. Use the following procedure to remove the spare belt holder from the snowmobile.

1. Open the left compartment door panel.

2. Rotate the 1/4 turn fastener 4 at the top of the spare belt holder.

3. Slide the spare belt holder outward to release it from the mount 5 on the footrest.

   NOTICE

   Fender has been removed for image clarity.

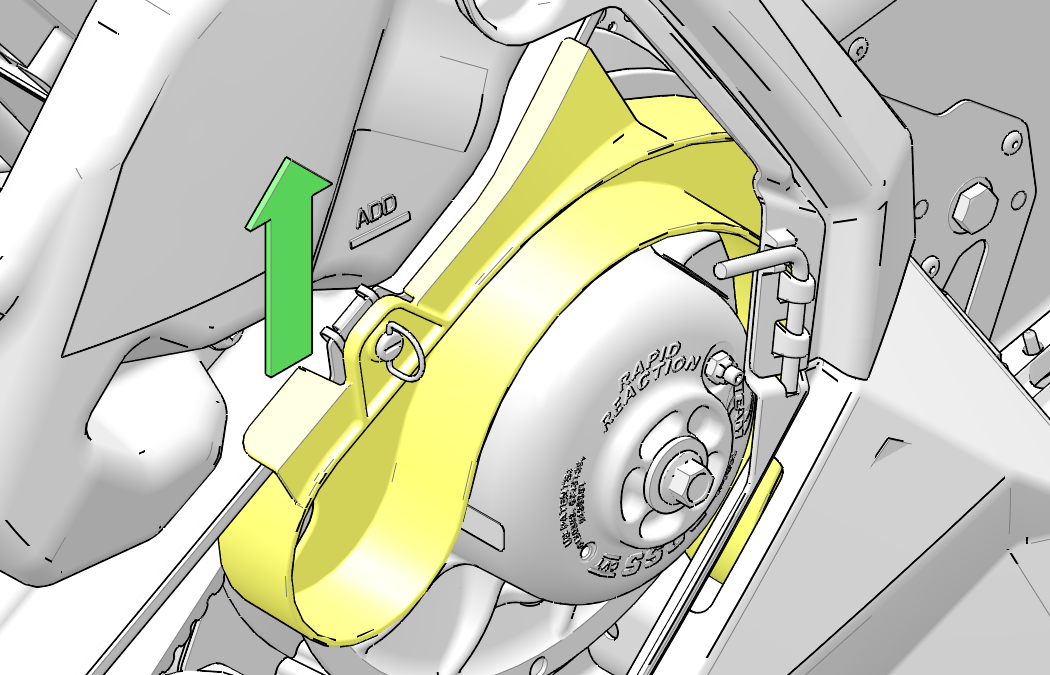

4. Lift upward and remove the spare belt holder.

5. Reinstall the drive belt into the spare belt holder.

1. Install and align spare belt holder mounting points.

2. Slide the belt holder inward to secure it to the mount on the footrest.

3. Rotate the 1/4 turn fastener to secure the spare belt holder.
