Torsion Spring Adjustments

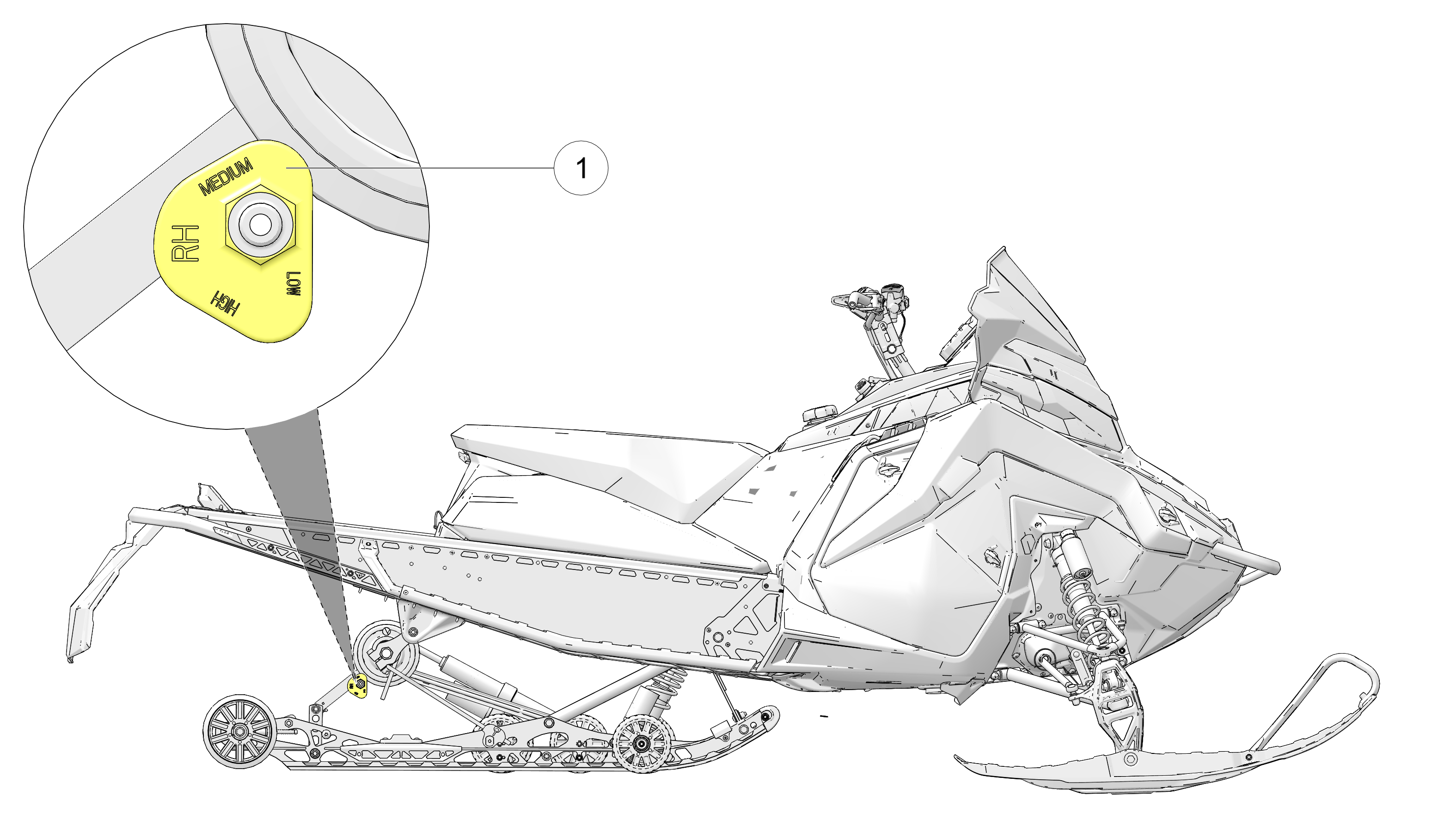

To adjust rear torsion spring preload, rotate the three-position cam 1 using the engine spark plug tool. Adjustment is easiest when the cam is rotated from low to medium, and then to high. Rotating directly from low to high will require significantly more effort. Different rate torsion springs are available for the ride desired. See your dealer for more information.
| Torsion Spring Setting | Recommended Usage |
|---|---|
|
Low |
Rider(s) and gear = 140-180 lb (63.5-81.5 kg) If less than 140 lb (63.5 kg), use the optional spring chart for softer springs. |
|
Medium |
Rider(s) and gear = 180-220 lb (81.5-100 kg) |
|
High |
Rider(s) and gear = 220-260 lb (100-118 kg) If above 260 lb (118 kg), use the optional spring chart for heavier springs. |
