Track Inspection

WARNING
Broken track rods can cause a rotating track to come off the snowmobile, which could cause serious injury or death. Never operate with a damaged track. Never rotate a damaged track under power.
NOTICE
The figures below are for reference only. Your model may differ slightly.

  1. Using a hoist, safely lift and support the rear of the snowmobile off the ground.

  2. Rotate the track by hand to check for damage.

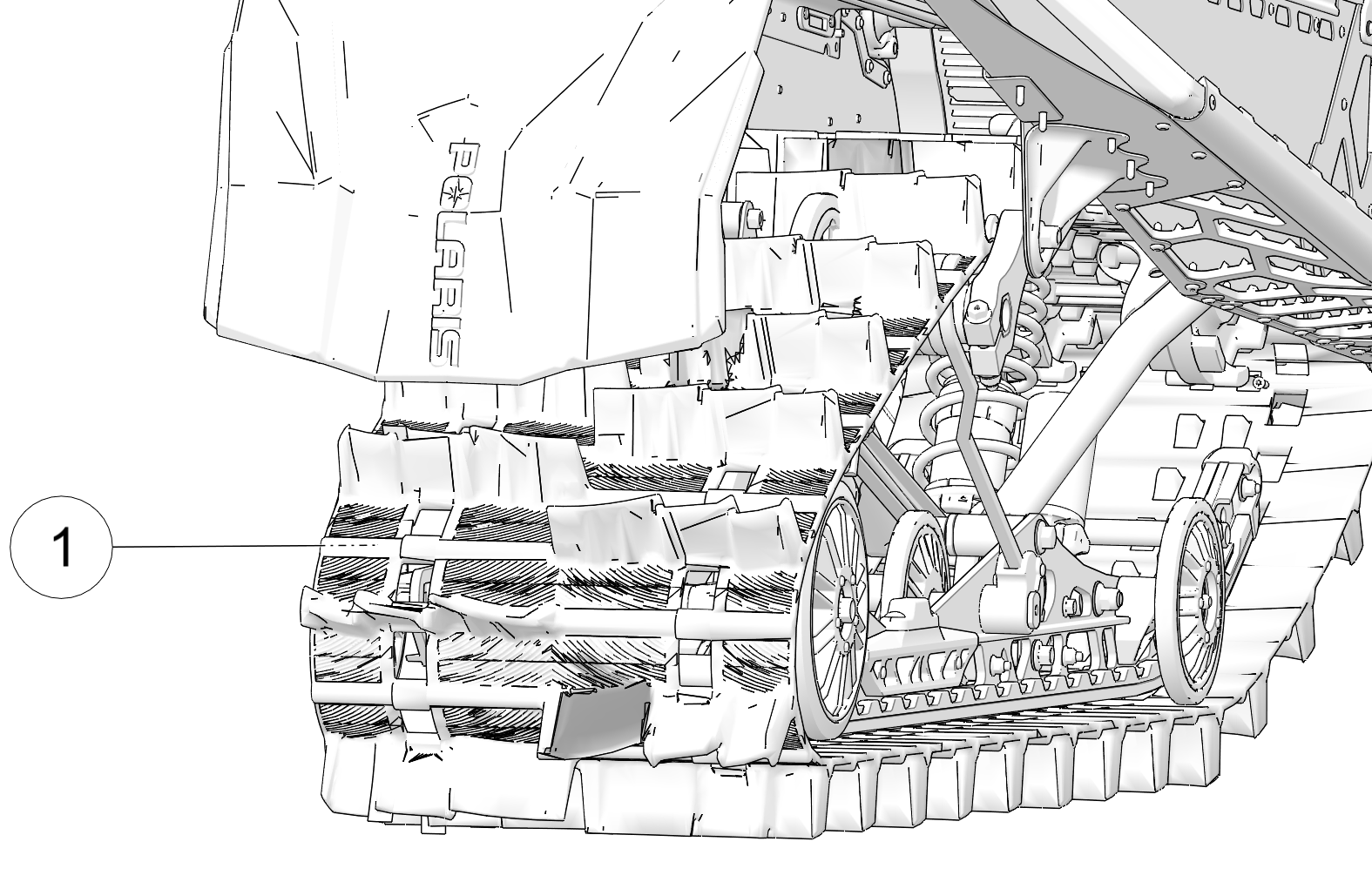

  3. Carefully examine the track along the entire length of each rod 1. Bend the track to check for breakage.

  4. Replace the track if any rod damage is found.
WARNING
Use of traction products such as studs increases the possibility of track damage and/or failure. Driving at high speeds for extended periods of time in marginal lubrication could severely damage track rods, break track edges, and cause other track damage. Examples of marginal lubrication would include frozen bodies of water without snow cover, icy trails, and no-snow conditions.
Parent topic: Track Maintenance
