Suspension Control Module (SCM) Overview

The brain of DYNAMIX is the Suspension Control Module (SCM). The SCM senses driver inputs and dynamic vehicle movement using a 6-axis Inertial Measurement Unit (IMU). Using each real-time input, the SCM applies its patented logic to continuously control the compression damping of each shock, delivering the best trail handling and comfort on the snow.

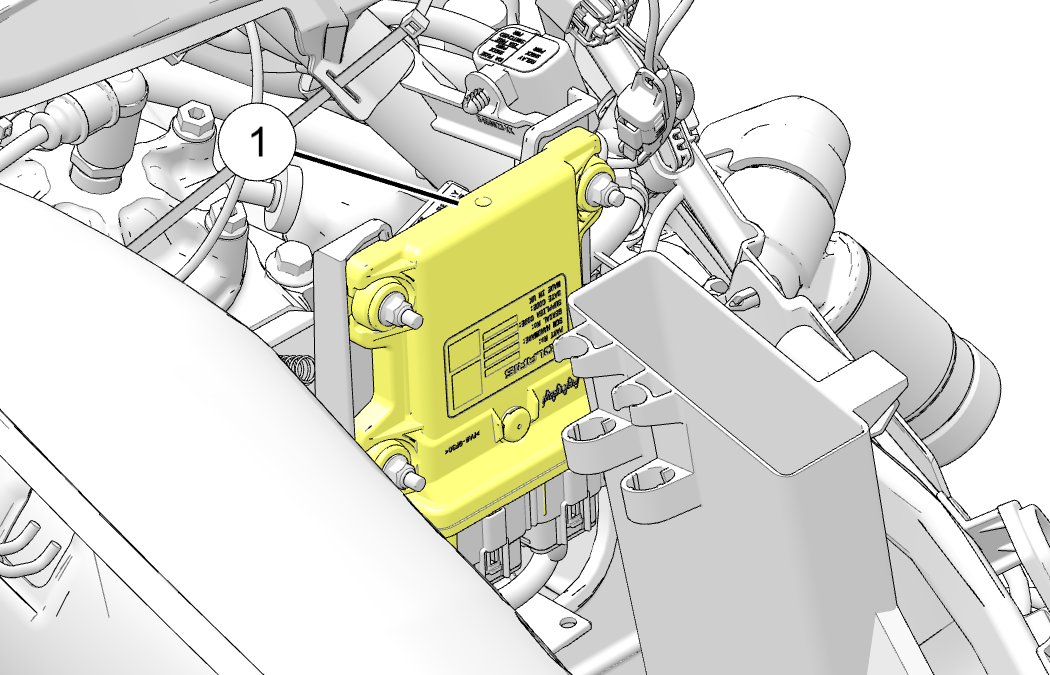

The SCM 1 is mounted to the suspension control module mount that is secured to the shock tower tube.

CAUTION
Moving or altering the SCM may have an adverse effect on snowmobile handling. Never move the SCM from its factory mounting location.

Advanced Diagnostics

The system continuously monitors the health and state of all input and output signals. If a fault is detected, the system reverts to a safe operating state and alerts the operator of a component or system problem.

Parent topic: Dynamix Active Suspension (If Equipped)
