Spark Plug Inspection

Spark plug condition is indicative of engine operation. The spark plug firing end condition should be read after the engine has been warmed up and the vehicle has been driven at higher speeds. Immediately check the spark plug for correct color.

WARNING
A hot exhaust system and engine can cause burns. Wear protective gloves when removing a spark plug for inspection.

  1. Remove the left side panel and hood.

  2. Remove the spark plug cap.

  3. Using the spark plug wrench provided in the tool kit, rotate the spark plug counterclockwise to remove it.

  4. Reverse the procedure for spark plug installation. Torque to specification.

  5. Reinstall the spark plug cap. Listen for an audible “click” when installing the plug cap.

  6. Make sure the caps are fully seated on each spark plug.

    NOTICE

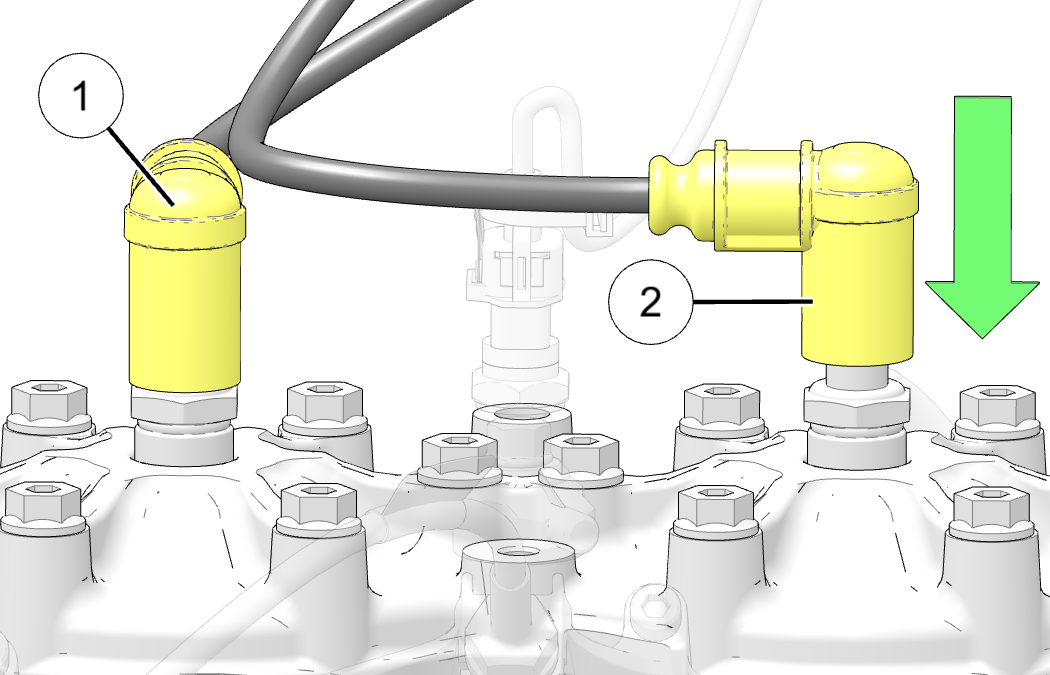

    The left cap 1 is correctly installed, but the right cap 2 needs to be pushed down farther to complete the installation.
