Throttle Block Alignment

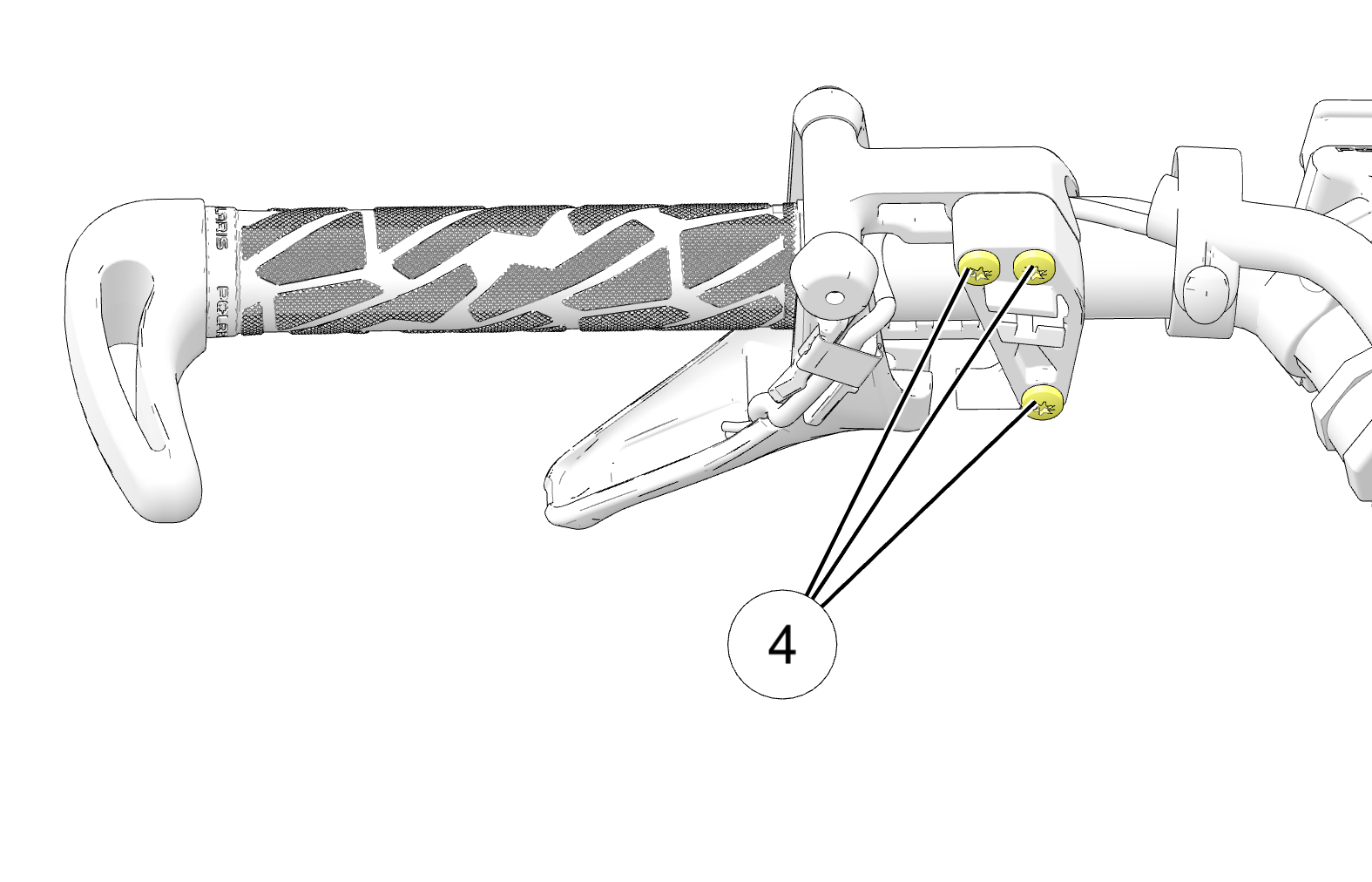

  1. Slightly loosen the set screw 4 on the bottom of the throttle block housing.

  2. Move the control block to desired position.

  3. Torque the set screw to specification. Do not over-torque.

  4. With the engine off, test throttle lever movement after tightening the screw.


TORQUE

Throttle Block Set Screw

27 in-lbs (3 N·m)

Parent topic: Handlebar Component Alignment
