Front Compartment Components

To access the front compartment components, first unlock the latches on each side of the front rack and lift the cover. Then remove the front storage compartment by rotating the two quarter-turn fasteners and lifting the compartment out of the vehicle.

NOTICE

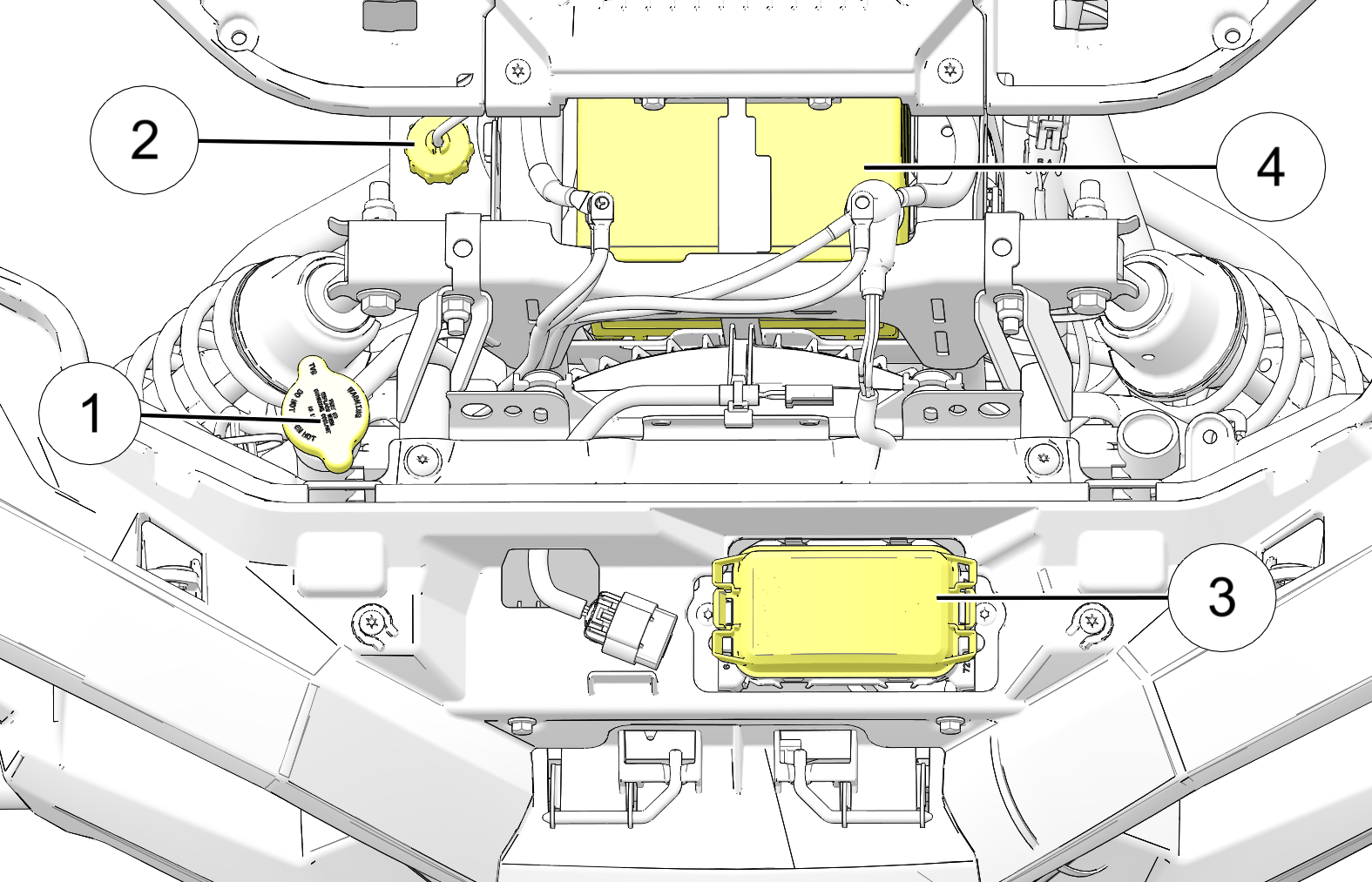

Image is for reference only. Your model might differ slightly.

  • 1 Radiator Pressure Cap

  • 2 Coolant Recovery Bottle Cap

  • 3 Electrical / Fuse / Relay

  • 4 Battery
