IMPORTANT

The Owner's Manual for this vehicle contains warnings, instructions and other information you must read and fully understand before safely riding or performing maintenance on this vehicle. Always follow the warnings and instructions in Owner's Manual.

Click the link above for the Table Of Contents, or download a full PDF of the Owner Manual in the Owner Support area of Polaris.com.

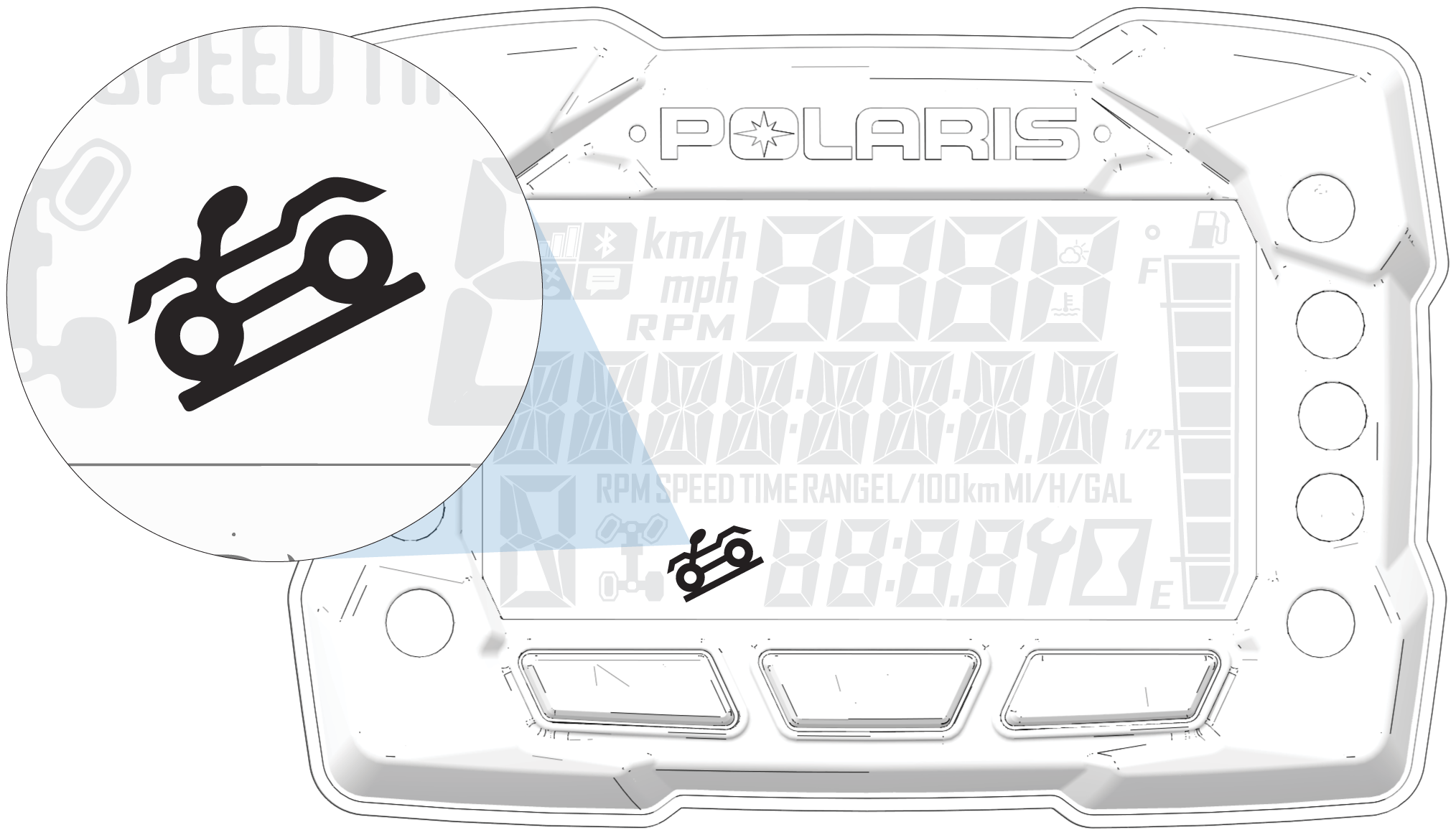

Active Descent Control (ADC) System

The ADC system allows engine braking to all four wheels when the vehicle descends a hill or incline. Always move the AWD momentary switch to ADC before ascending or descending a hill.

Engaging Active Descent Control

The ADC system will automatically engage when all of the following conditions occur:

  • The momentary switch must be in the ADC position

  • The throttle must be closed (throttle lever released)

  • The transmission must be in gear (high, low or reverse)

IMPORTANT

The calibration is set to enable ADC at 6 mph (9 kph).

Disengaging Active Descent Control

The ADC system will automatically disengage if at least one of the following conditions occur:

  • The momentary switch is moved out of the ADC position

  • The throttle is open (throttle is applied)

  • The transmission is shifted to neutral or park

  • The vehicle is on flat ground, or not actively descending a hill

IMPORTANT

The calibration is set to disable ADC at 7 mph (12 kph).
