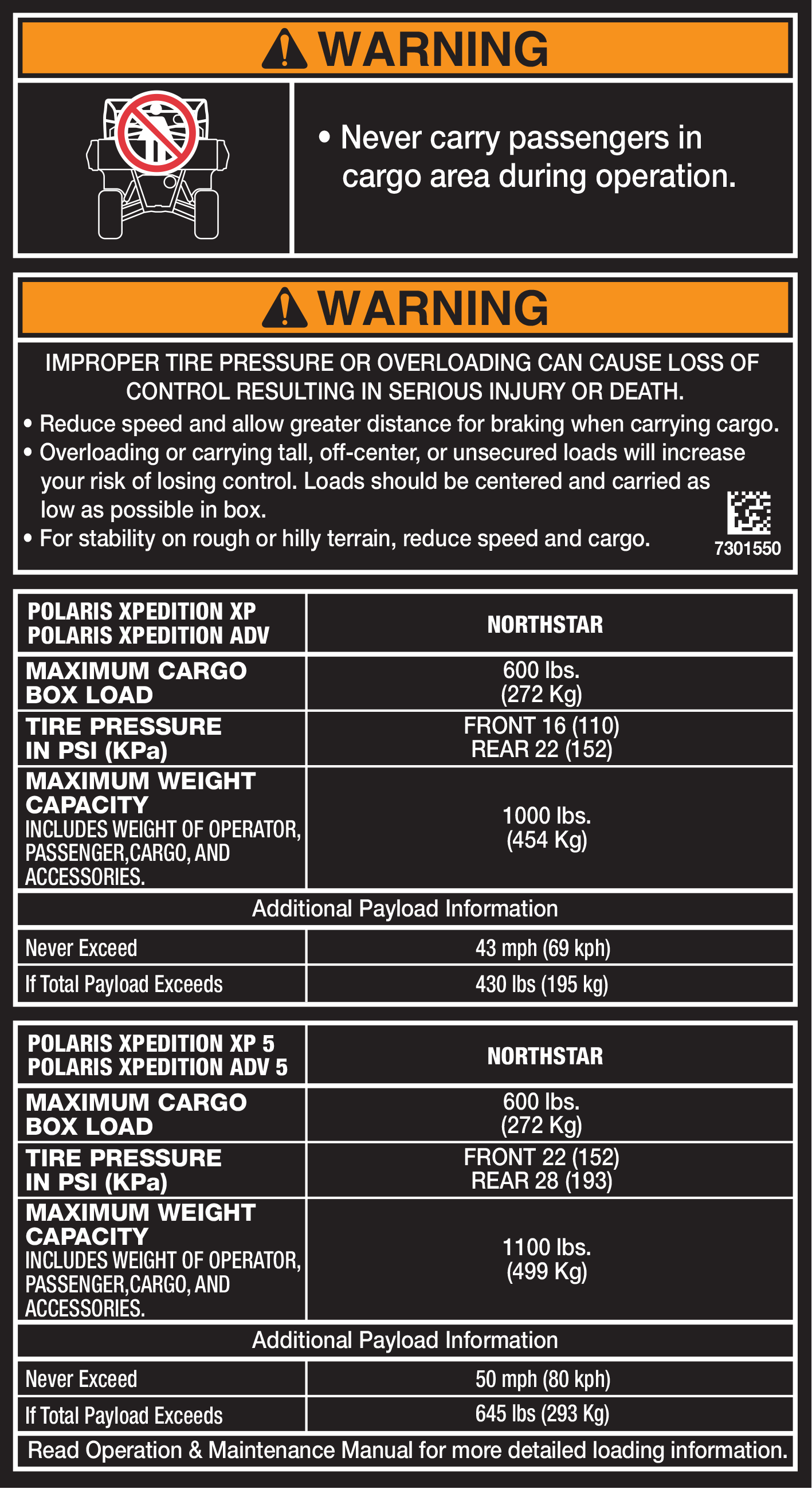

Maximum Payload/ Tire Pressure Warning
The Maximum Payload/ Tire Pressure Warning label is located in the cargo box area.
WARNING
-
Never carry passengers in cargo area during operation.
-
If total payload is greater than 500 lbs, the vehicle must be operated in LOW range.
WARNING
IMPROPER TIRE
PRESSURE OR OVERLOADING CAN CAUSE LOSS OF CONTROL RESULTING IN SERIOUS
INJURY OR DEATH.
-
Reduce speed and allow greater distance for braking when carrying cargo.
-
Overloading or carrying tall, off-center, or unsecured loads will increase your risk of losing control. Loads should be centered and carries as low as possible in box.
-
For stability on rough or hilly terrain, reduce speed and cargo.
| POLARIS XPEDITION XP POLARIS XPEDITION ADV |
NORTHSTAR |
|---|---|
| MAXIMUM CARGO BOX LOAD | 600 lb (272 kg) |
| TIRE PRESSURE IN PSI (KPa) |
Front: 16 PSI (110 kPa) Rear: 22 PSI (152 kPa) |
| MAXIMUM WEIGHT CAPACITY INCLUDES WEIGHT OF OPERATOR, PASSENGER, CARGO, AND ACCESSORIES. |
1000 lbs (454 kg) |
Additional Payload Information
| Never Exceed | 43 mph (69 kph) |
| If Total Payload Exceeds | 430 lbs (195 kg) |
| POLARIS XPEDITION XP 5 POLARIS XPEDITION ADV 5 |
NORTHSTAR |
|---|---|
| MAXIMUM CARGO BOX LOAD | 600 lbs |
| TIRE PRESSURE IN PSI (KPa) |
Front: 22 PSI (152 kPa) Rear: 28 PSI (193 kPa) |
| MAXIMUM WEIGHT CAPACITY INCLUDES WEIGHT OF OPERATOR, PASSENGER, CARGO, AND ACCESSORIES. |
1100 lbs (499 kg) |
Additional Payload Information
| Never Exceed | 50 mph (80 kph) |
| If Total Payload Exceeds | 645 lbs (293 kg) |
Read Operation & Maintenance Manual for more detailed loading information.
Part number: 7301550 (English), 7301550–F (French Canadian)
