IMPORTANT

The Owner's Manual for this vehicle contains warnings, instructions and other information you must read and fully understand before safely riding or performing maintenance on this vehicle. Always follow the warnings and instructions in Owner's Manual.

Click the link above for the Table Of Contents, or download a full PDF of the Owner Manual in the Owner Support area of Polaris.com.

Seat Installation

TOURING MODELS

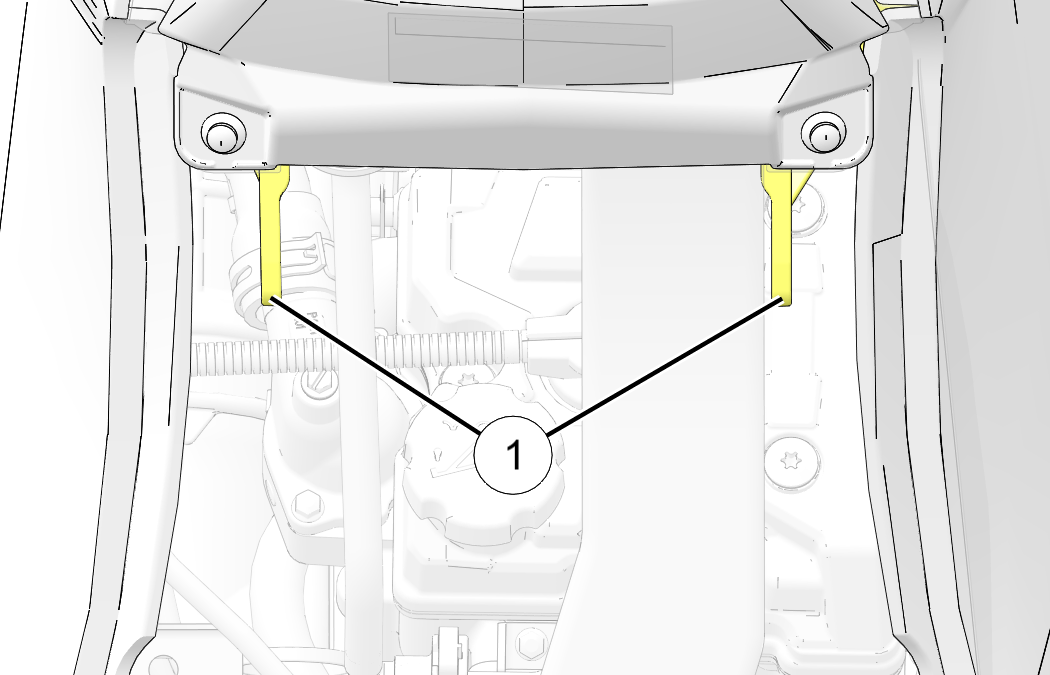

  1. Align the two openings in the bottom of the driver seat with the two seat base brackets 1.

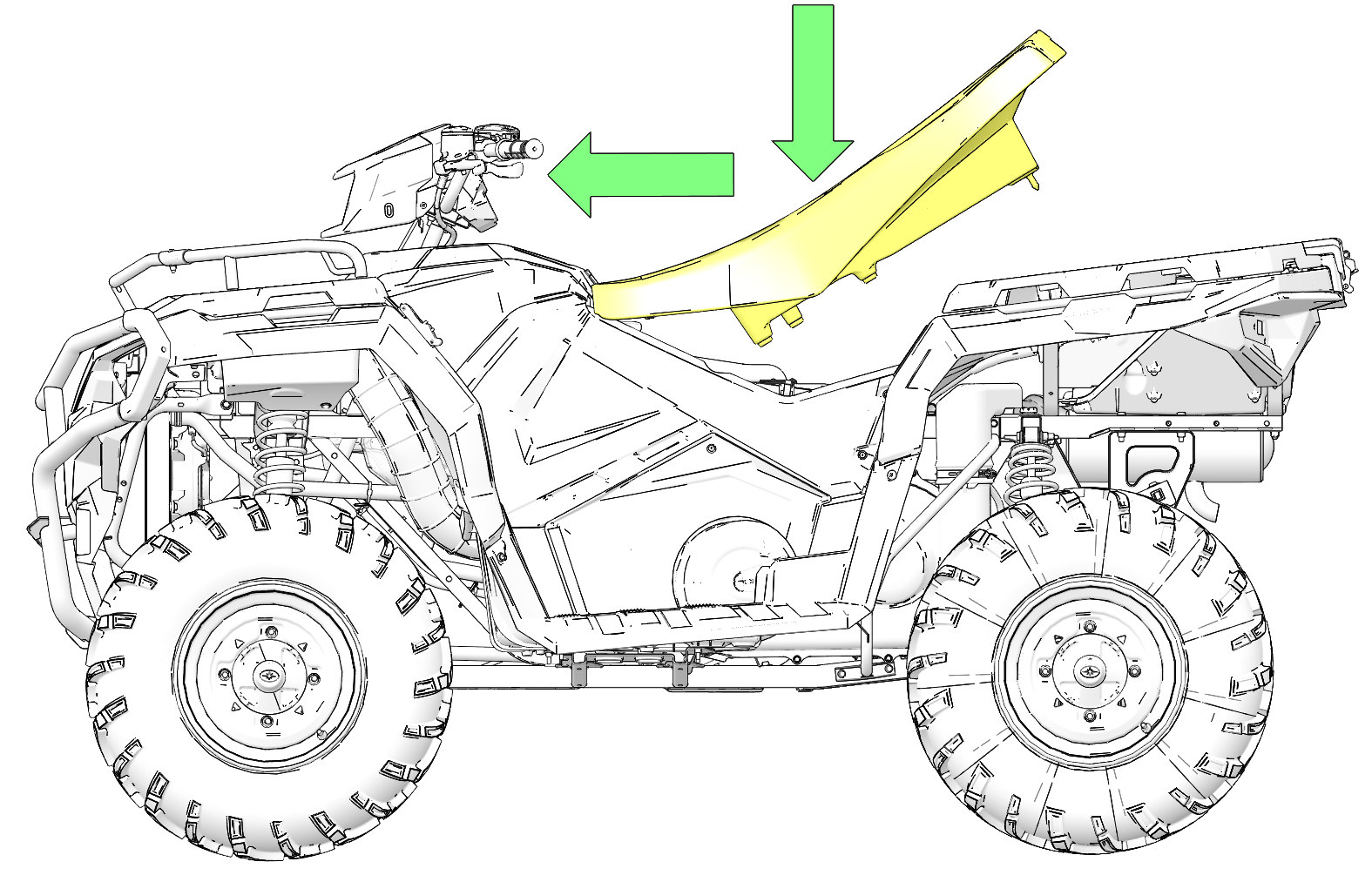

  2. Slide the driver seat forward and lower the rear.

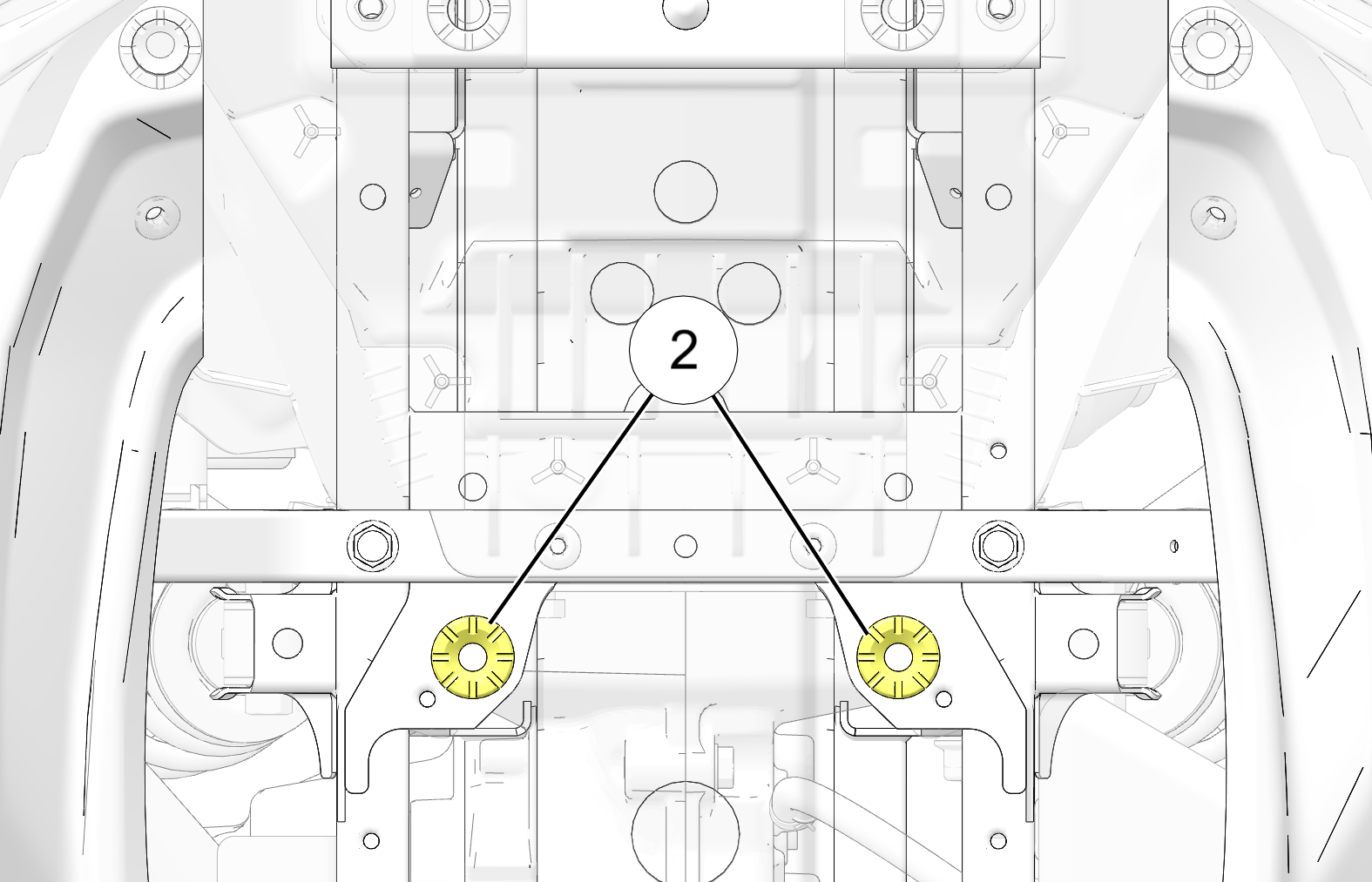

  3. Press the rear of the driver seat down firmly to seat the two pins into the grommets 2.

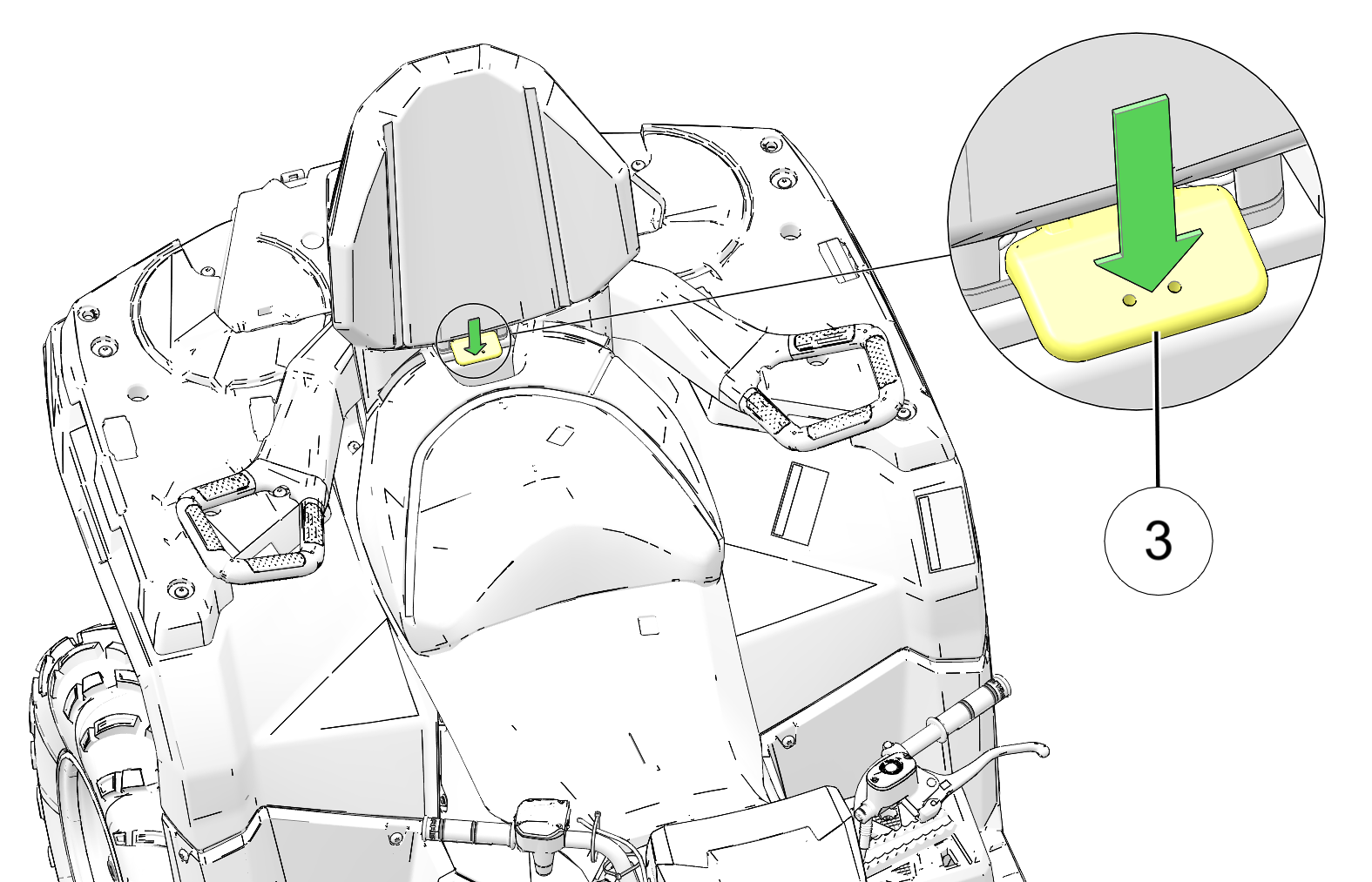

  4. Install the passenger seat onto the vehicle by pushing back on the backrest and down on the passenger seat latch lever 3 until you feel and hear a click.

    WARNING
    Severe injury or death can result from improper seat installation. Make sure you push the passenger seat latch lever all of the way down so that it latches into place.

X2 MODELS

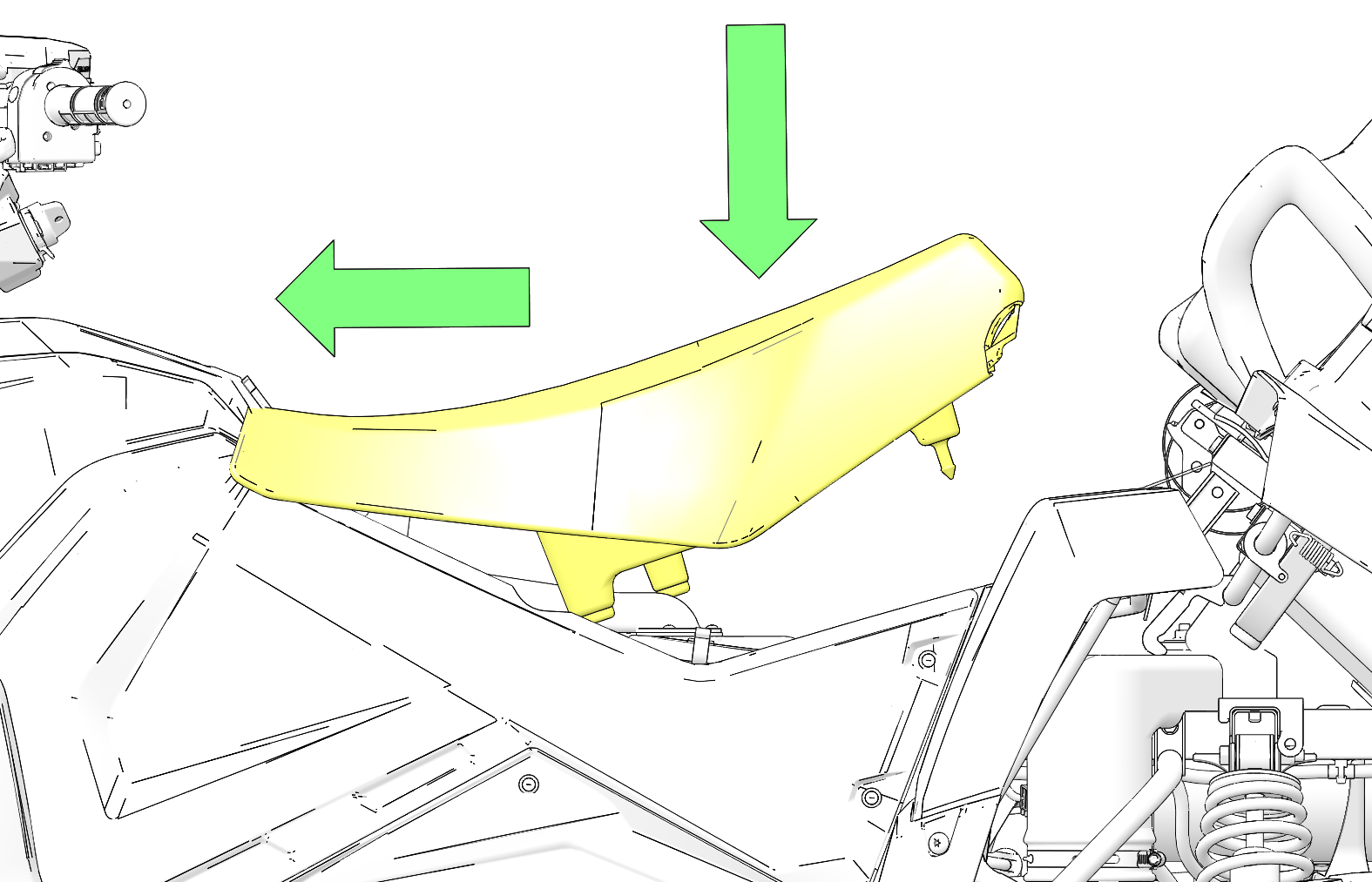

  1. Slide the driver seat forward and lower the rear.

  2. Tilt the cargo box to the upright position.

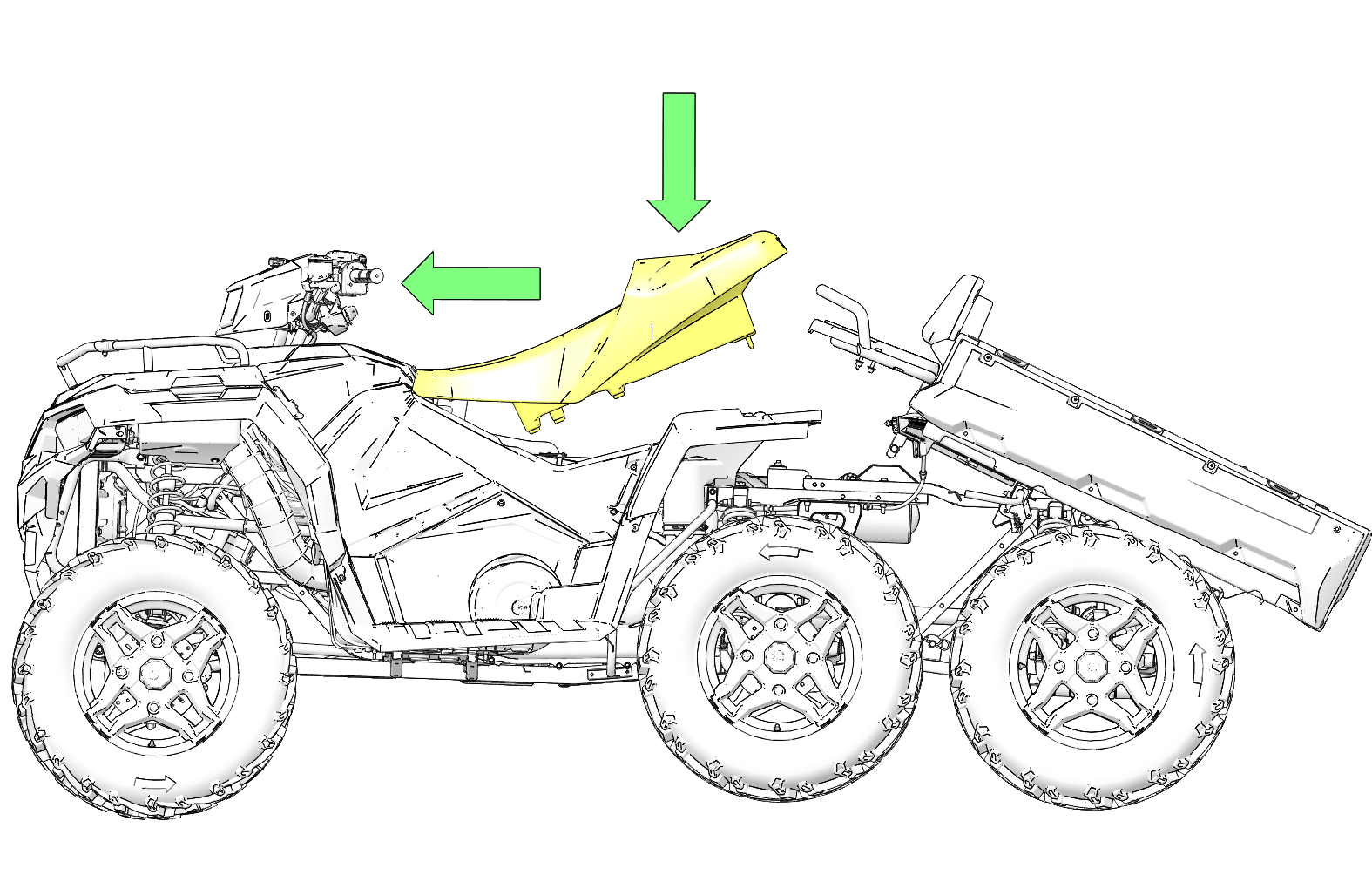

6X6 MODELS

  1. Slide the driver seat forward and lower the rear.

  2. Tilt the cargo box to the upright position.
