Drive Belt Removal

  1. Position the vehicle on a level surface. Put the transmission in PARK (P) and lock the temporary brake lock.

  2. Remove the seat.

  3. Remove the left side panel / footwell. See Side Panel / Footwell Removal.

  4. Remove the three fasteners from the rear passenger foot support bracket.

  5. Remove the 10 fasteners securing the outer PVT cover to the inner PVT cover.

  6. Using care, pull the outer PVT cover out the side of the vehicle.

  7. Remove the three inner PVT cover fasteners.

  8. Note the orientation of the drive belt so that it can be installed in the same direction.

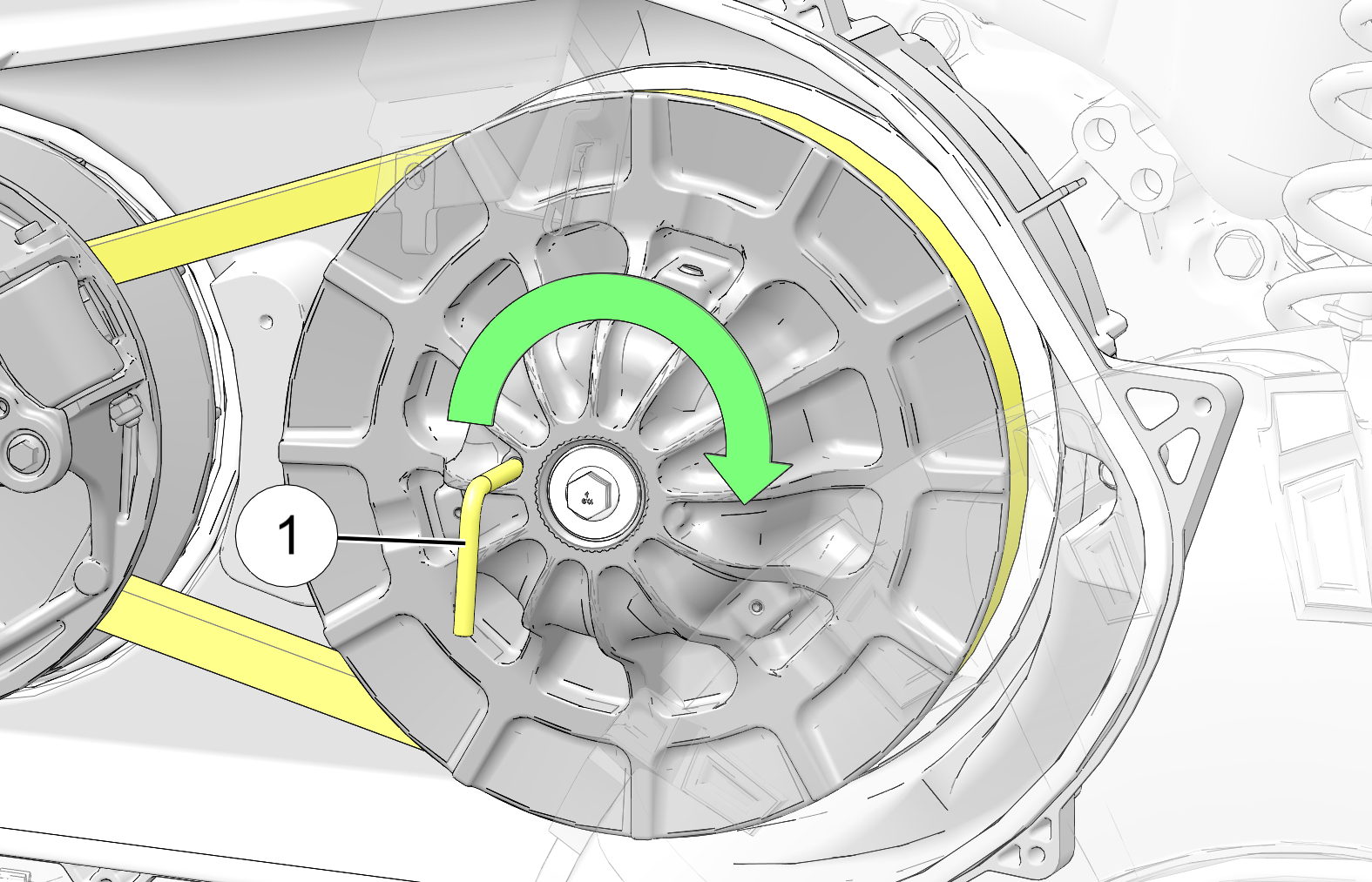

  9. Insert the Clutch Spreader Tool 1 (included in your vehicle’s toolkit) into the threaded hole on the driven clutch as shown and turn clockwise to spread the clutch.

  10. Carefully walk the belt off the driven clutch and remove from the drive clutch.

Parent topic: PVT System
