Wheel Installation

  1. Stop the engine, put the transmission in PARK (P), and lock the temporary brake lock.

  2. Place the wheel on the hub with the valve stem toward the outside and rotation arrows on the tire pointing toward forward rotation (if equipped).

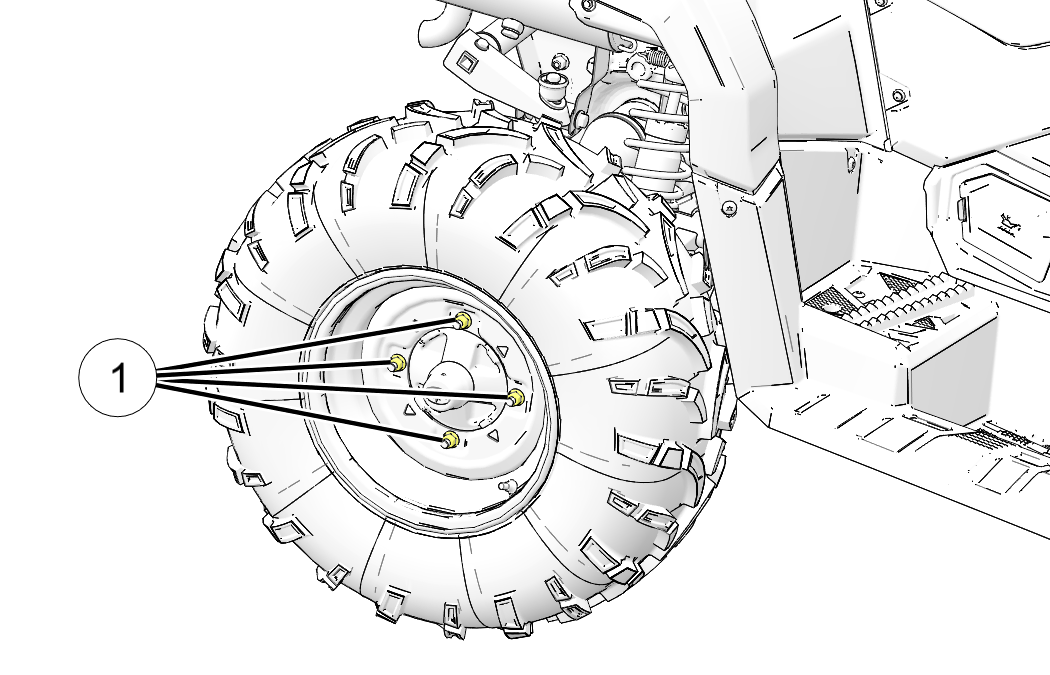

  3. Install the wheel nuts 1 and finger-tighten them.

  4. Lower the vehicle to the ground.

  5. Torque the wheel nuts to specification.
