IMPORTANT

The Owner's Manual for this vehicle contains warnings, instructions and other information you must read and fully understand before safely riding or performing maintenance on this vehicle. Always follow the warnings and instructions in Owner's Manual.

Click the link above for the Table Of Contents, or download a full PDF of the Owner Manual in the Owner Support area of Polaris.com.

Oil Level Check

IMPORTANT

Check the oil level when the engine is cold. Never check the oil with the engine running or damage to the dipstick and / or engine could occur.

  1. Position the vehicle on a level surface. Put the transmission in PARK (P) and lock the temporary brake lock. Turn the engine off.

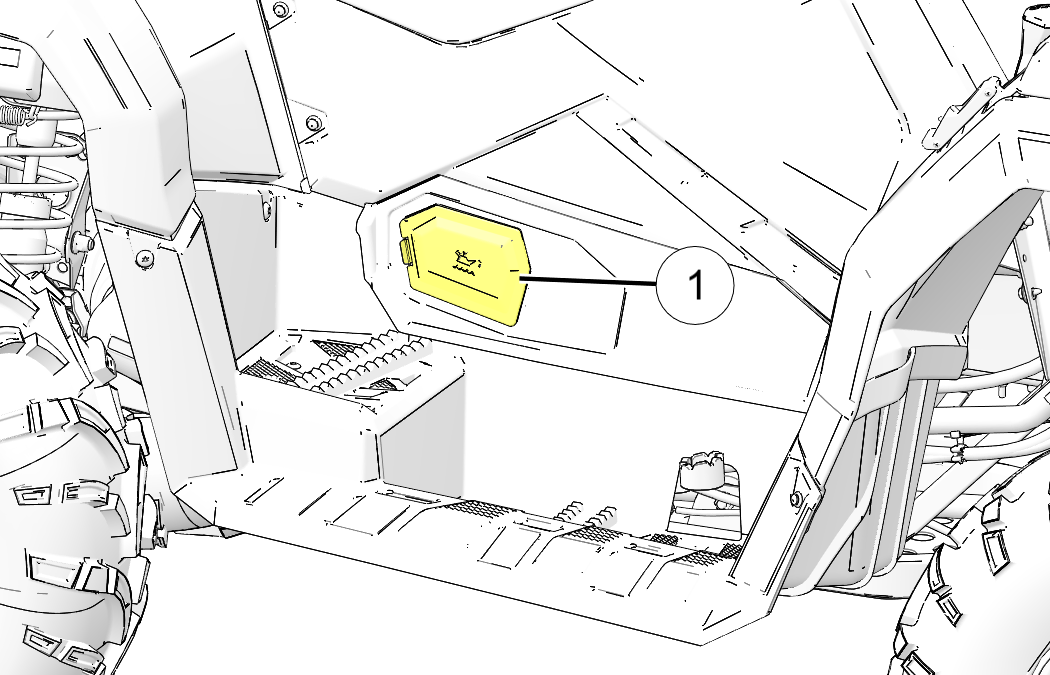

  2. Remove the engine access panel 1 on the right side of the vehicle.

  3. Clean the area around the dipstick.

  4. With the engine off, remove the dipstick. Wipe it dry with a clean cloth.

  5. Install the dipstick and tighten it all of the way to ensure an accurate measurement.

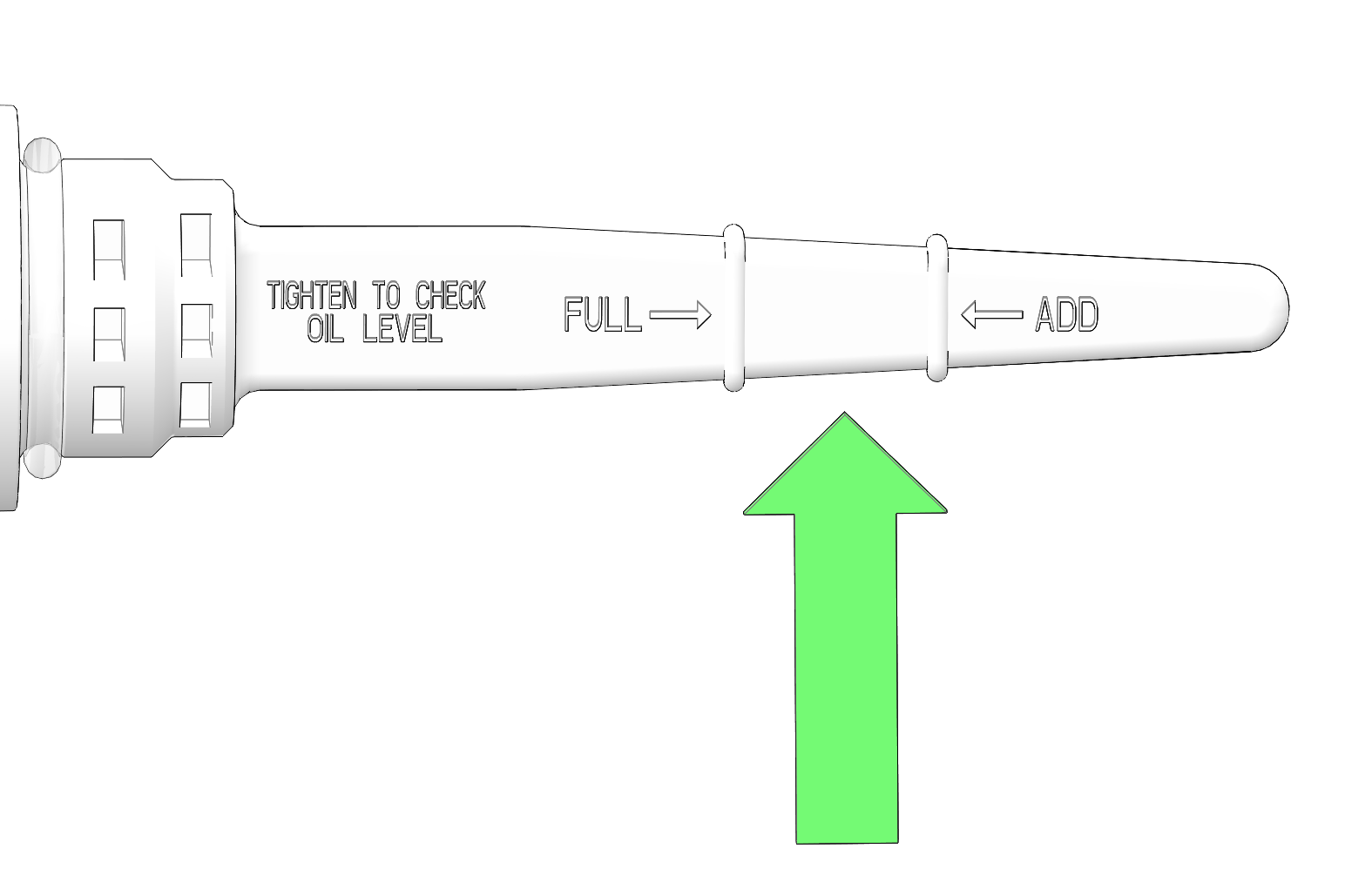

  6. Remove the dipstick and check the oil level. The oil level should be between the full and add lines on the dipstick.

  7. If needed, use a funnel to slowly add the recommended oil as indicated by the level on the dipstick. Do NOT overfill.

  8. Install the dipstick and the engine access panel.

Parent topic: Engine Oil
