Seat Removal

NOTICE

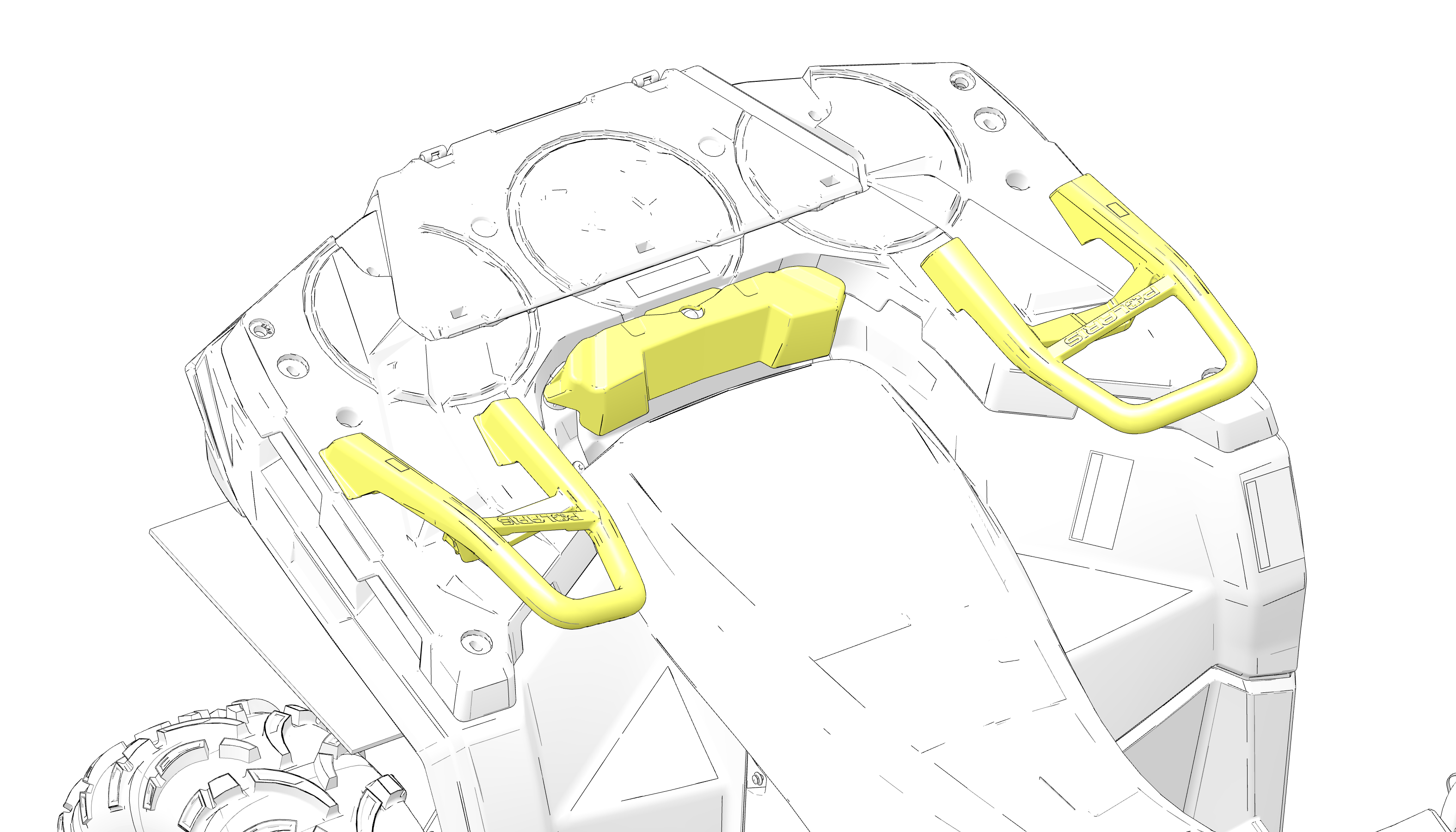

A passenger may ride without the passenger seat installed with the installation of kit 2891377. This kit consists of new handgrips and an additional cover. See your POLARIS dealer or other qualified person for more information.

TOURING MODELS

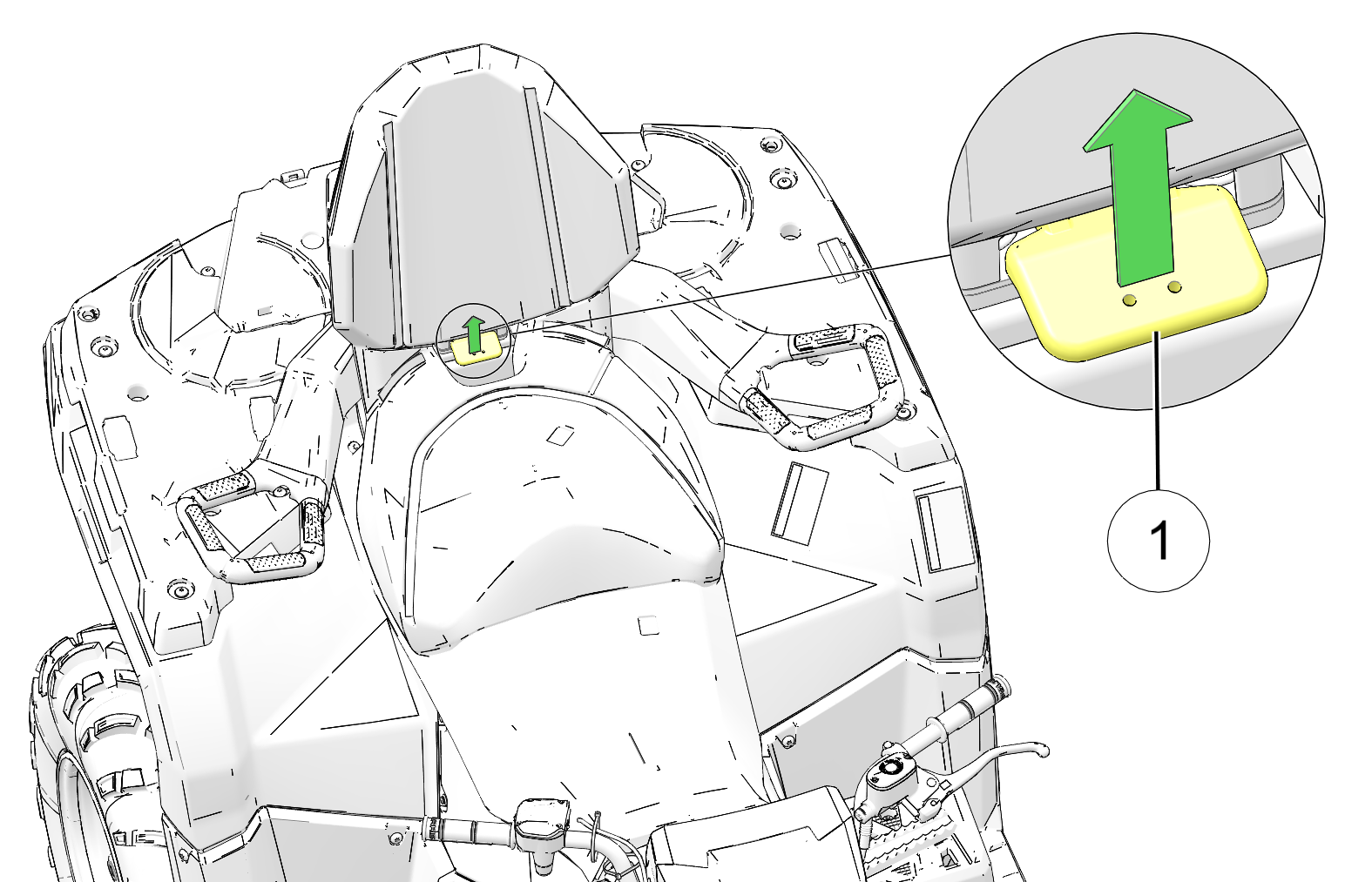

  1. Pull up on the passenger seat latch lever 1.

  2. Tilt the passenger seat forward and then lift up to remove the seat from the vehicle.

  3. Lift the rear of the driver seat and slide the seat towards the back of the vehicle to remove it.

X2 MODELS

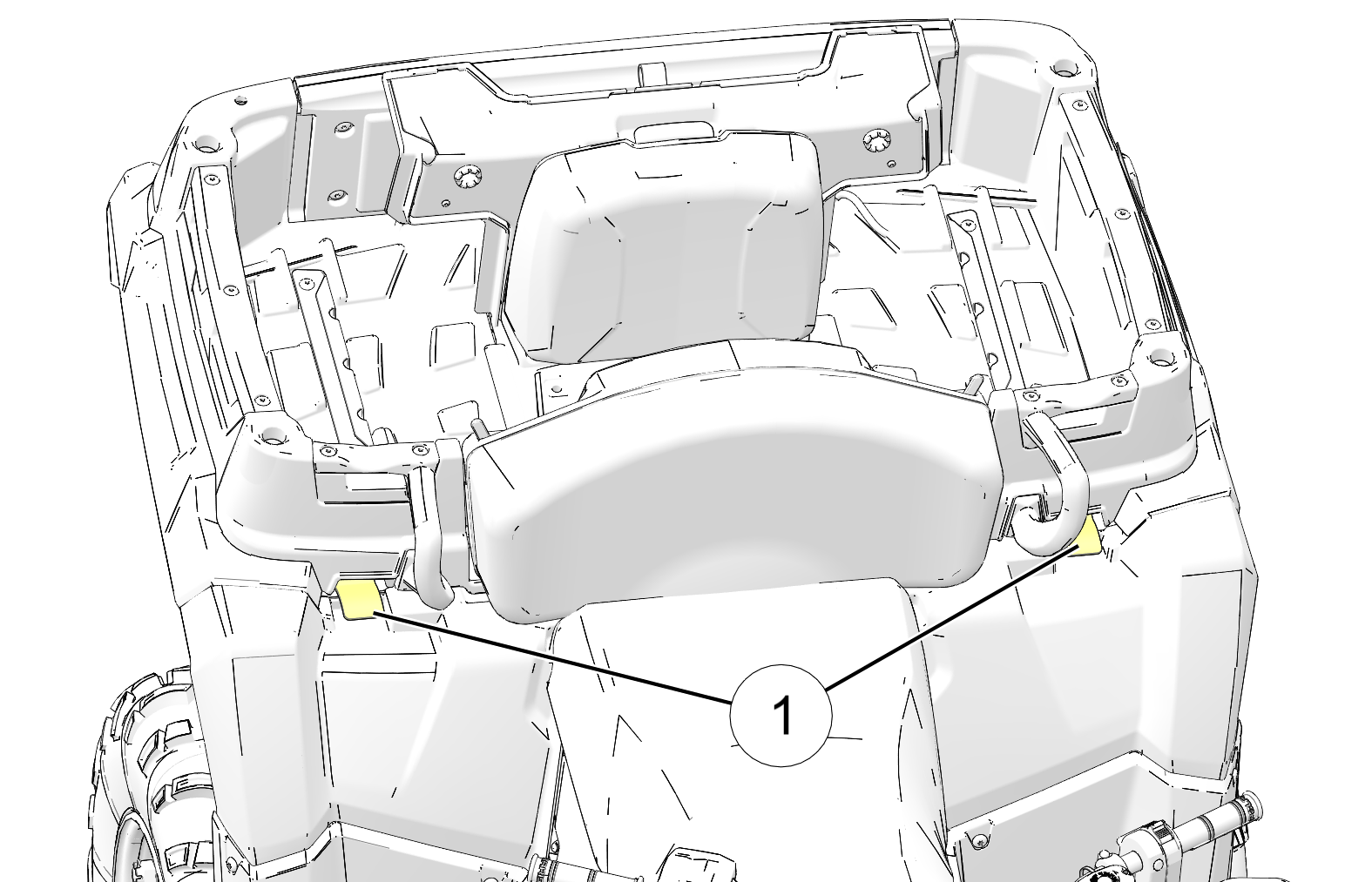

  1. Pull up on one of the cargo box latch levers 1 and tilt the cargo box backwards.

  2. Lift the rear of the driver seat and slide the seat towards the back of the vehicle to remove it.

    NOTICE
    The rear seat can be adjusted to three different positions. See Seat Conversion (X2 Models) for details.

6X6 MODELS

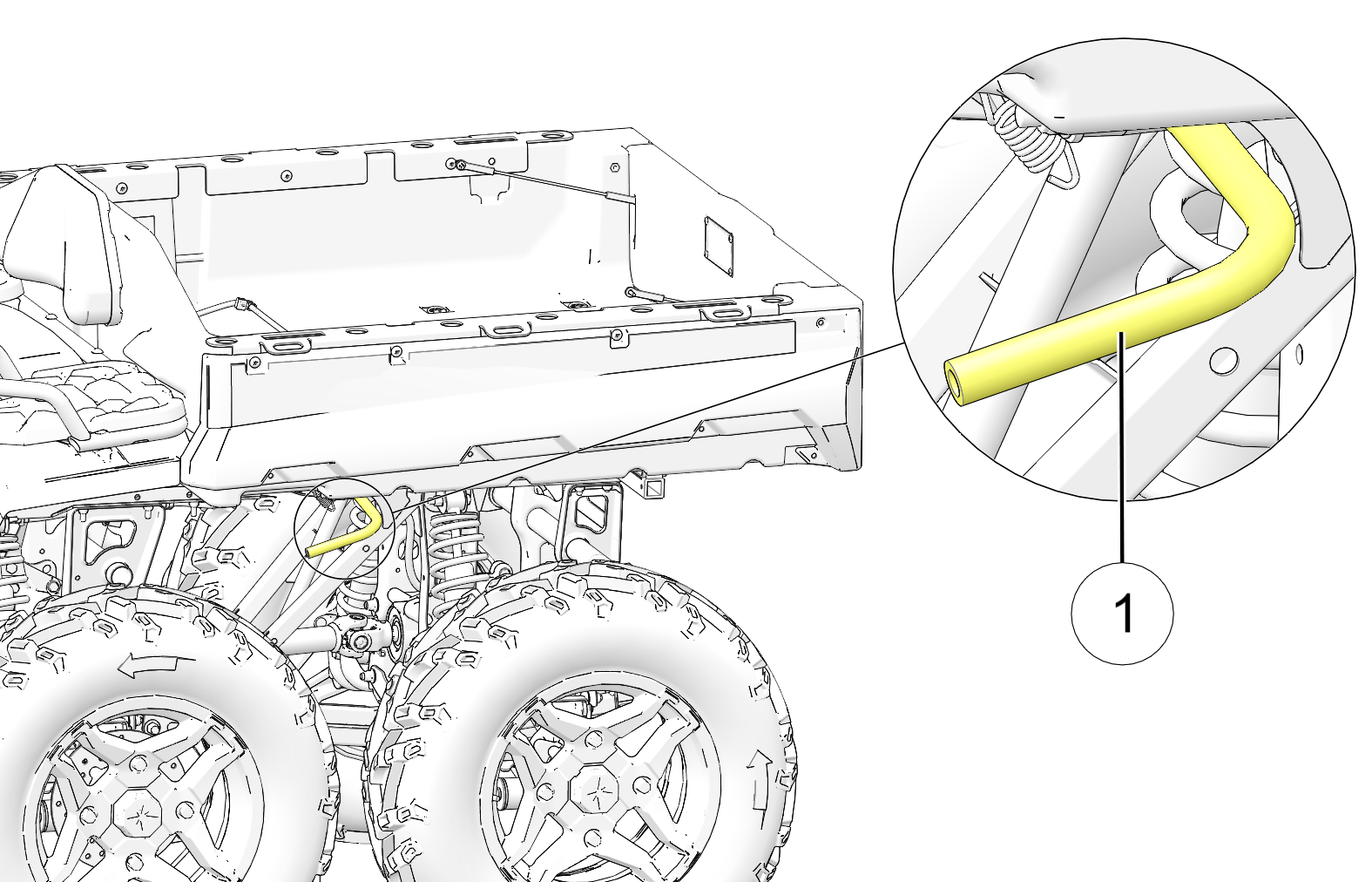

  1. Lift up on the cargo box release lever 1 on either side of the vehicle and tilt the cargo box backwards.

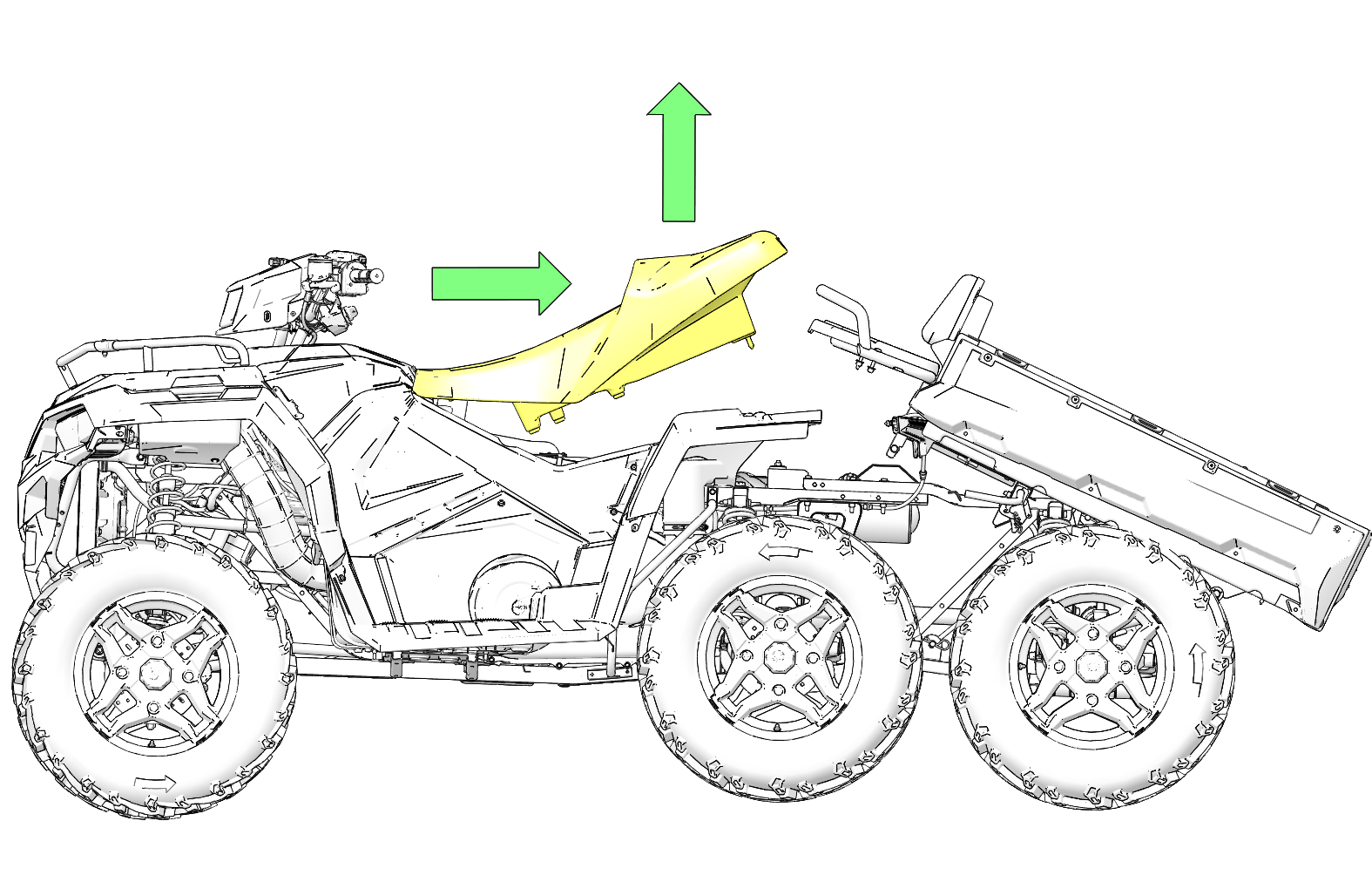

  2. Lift the rear of the driver seat and slide the seat towards the back of the vehicle to remove it.
