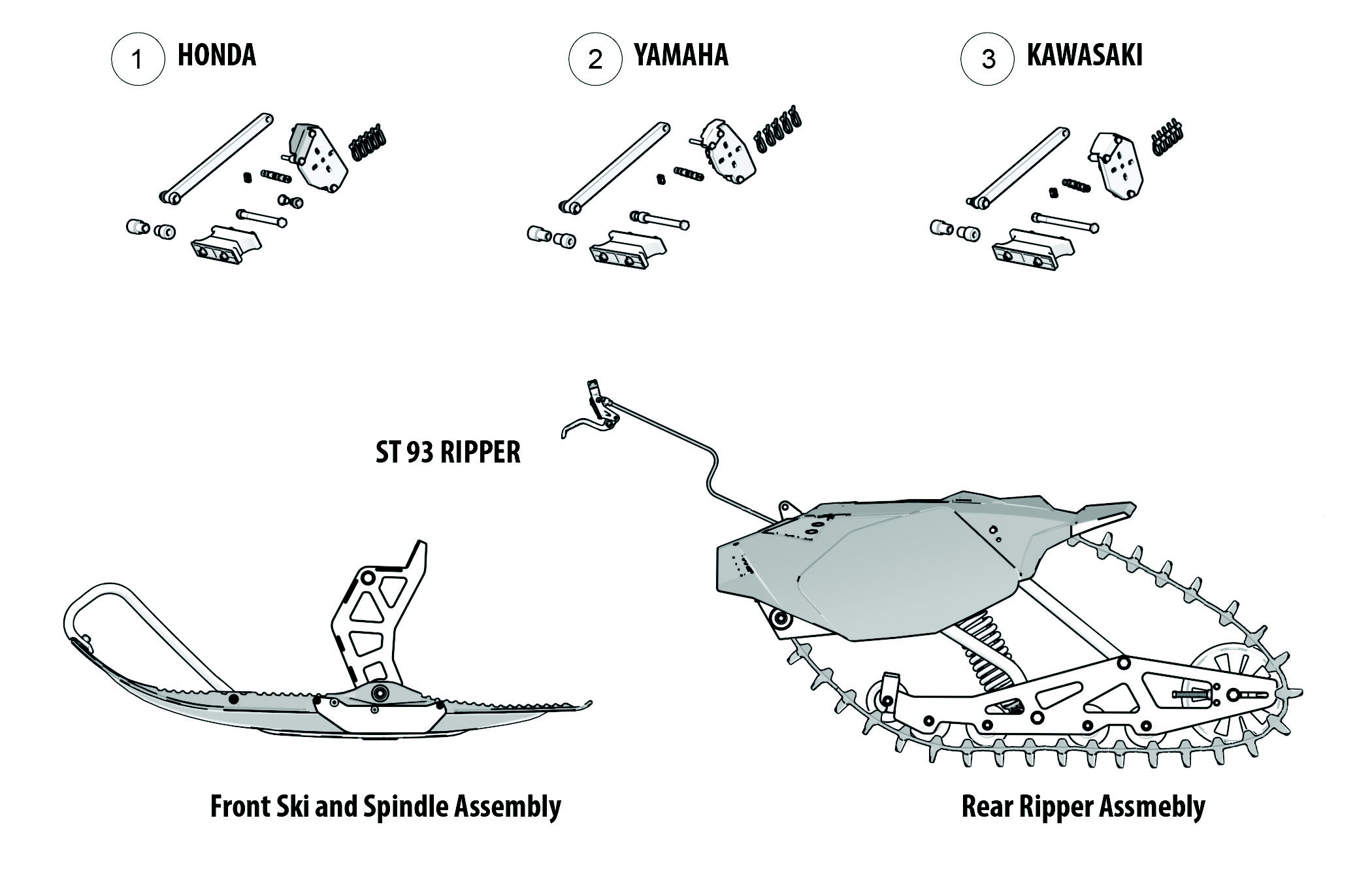

Kit Contents
The Timbersled Ripper ST 93 Install Kit includes: Qty.– 1, Install kit for your specific model. Timbersled Ripper models are sold separately.
| Ref | Qty | Part Description | Part Number |
|---|---|---|---|
| 1* | 1 | Honda® Install Kit | 2883777 |
| 2* | 1 | Yamaha® Install Kit | 2883778 |
| 3* | 1 | Kawasaki® Install Kit | 2883779 |
| – | 1 | Timbersled Ripper ST 93 Install Kit instructions | 9929172 |
Items marked (*) are specific to your make and model of bike. Only items specific to your make and model of bike are included in the Install Kit. See Install Kit drawings and parts lists for items specific to each Install Kit.

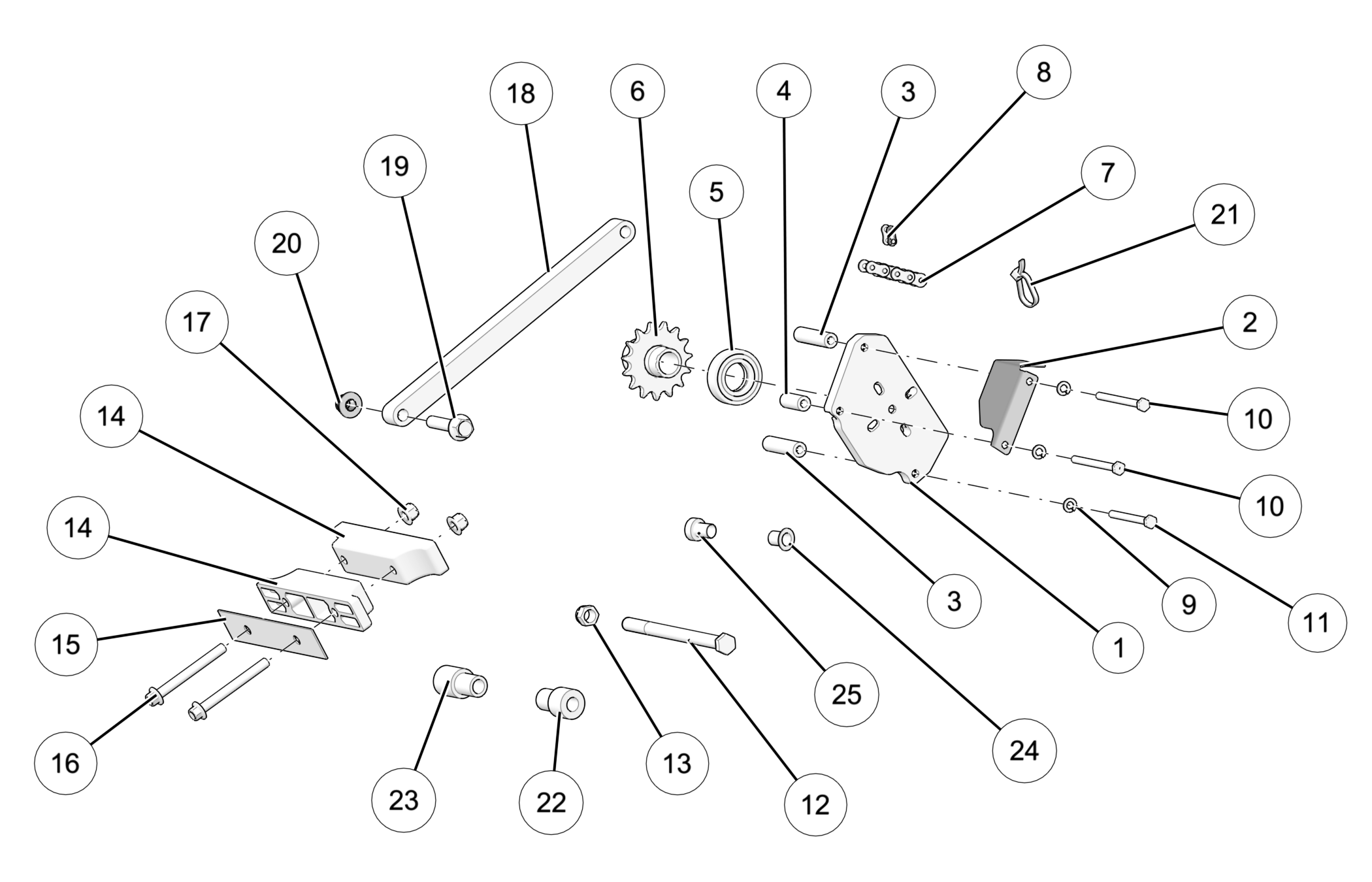

INSTALL KIT: 2883777
This install kit is specific to the Honda® models listed in the application section:
| Ref | Qty | Part Description | Part Number |
|---|---|---|---|
| 1 | 1 | Asm, Backer Plate — Honda® | 1334174 |
| 2 | 1 | Bracket, Chain Guard — Honda® | 5266683–458 |
| 3 | 2 | Backer Spacer, Long — Honda® | 5142459 |
| 4 | 1 | Backer Spacer, Short — Honda® | 5142460 |
| 5 | 1 | Bearing-Ball | 3514549 |
| 6 | 1 | Drive Sprocket — Honda® | 1333882–329 |
| 7 | 1 | Chain, 420 — Timbersled Ripper | 3222364 |
| 8 | 1 | Master Link, 420 Chain | 3222285 |
| 9 | 3 | Lock Washer-Split | 7557064 |
| 10 | 2 | Screw — M6 X 1.0 X 75 | 7520729 |
| 11 | 1 | Screw — M6 X 1.0 X 75 | 7520729 |
| 12 | 1 | Screw — 7/16–14 X 6.5 | 7520726 |
| 13 | 1 | Nut, Locking, 7/16–14 | 7542525 |
| 14 | 2 | Clamp, Fork Tube — Timbersled Ripper | 5455474 |
| 15 | 1 | Plate, Fork Tube, Clamp | 5264330–458 |
| 16 | 2 | Screw — M8 X 1.25 X 75 | 7519948 |
| 17 | 2 | Nut, Locking — M8 X 1.25 | 7547332 |
| 18 | 1 | Strut, Fixed — Timbersled Ripper (260 mm) | 5141221 |
| 19 | 1 | Screw — M10 X 1.5 X 50 | 7518971 |
| 20 | 1 | Nut, Locking — M10 X 1.5 | 7547423 |
| 21 | 5 | Cable Tie | 7081504 |
| 22 | 1 | Reducer-Spindle — Honda®, LH | 5141390 |
| 23 | 1 | Reducer-Spindle — Honda®, RH | 5141389 |
| 24 | 1 | Reducer, Timbersled Ripper LH — Honda® | 5141218 |
| 25 | 1 | Reducer, Timbersled Ripper RH — Honda® | 5141219 |

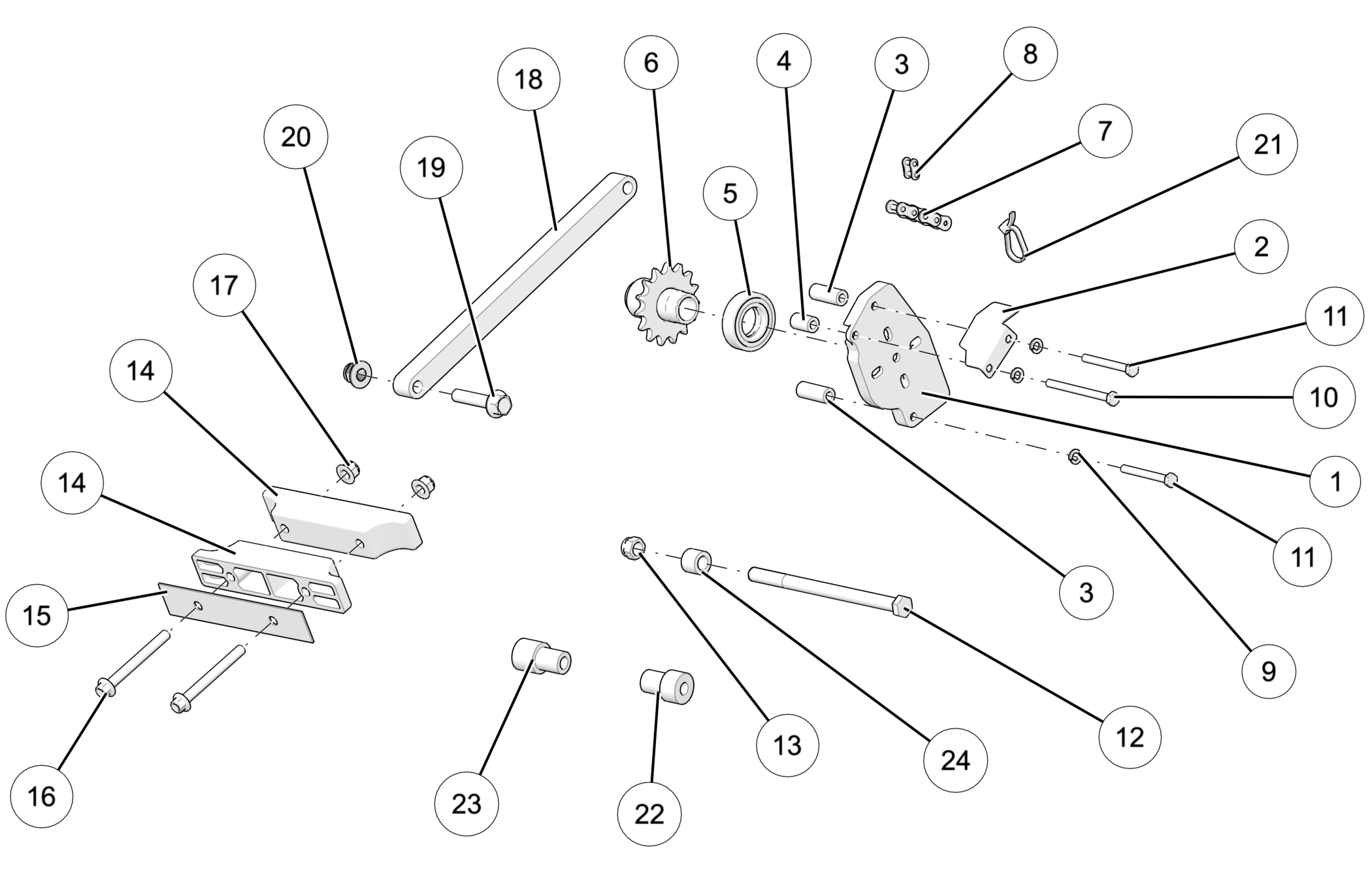

INSTALL KIT: 2883778
This install kit is specific to the Yamaha® models
listed in the application section:
| Ref | Qty | Part Description | Part Number |
|---|---|---|---|
| 1 | 1 | Asm, Backer Plate — Yamaha® | 1334172 |
| 2 | 1 | Bracket, Chain Guard — Yamaha® | 5266675–458 |
| 3 | 2 | Backer Spacer, Long — Yamaha® | 5142451 |
| 4 | 1 | Backer Spacer, Short — Yamaha® | 5142452 |
| 5 | 1 | Bearing-Ball | 3514549 |
| 6 | 1 | Drive Sprocket — Yamaha® | 1333888–329 |
| 7 | 1 | Chain, 420 — Timbersled Ripper | 3222364 |
| 8 | 1 | Master Link, 420 Chain | 3222285; 3222342 |
| 9 | 3 | Lock Washer-Split | 7557064 |
| 10 | 1 | Screw — M6 X 1.0 X 80 | 7521016 |
| 11 | 2 | Screw — M6 X 1.0 X 55 | 7520728 |
| 12 | 1 | Screw — 7/16–14 X 6.5 | 7520726 |
| 13 | 1 | Nut, Locking, 7/16–14 | 7542525 |
| 14 | 2 | Clamp, Fork Tube — Timbersled Ripper | 5455474 |
| 15 | 1 | Plate, Fork Tube, Clamp | 5264330–458 |
| 16 | 2 | Screw — M8 X 1.25 X 75 | 7519948 |
| 17 | 2 | Nut, Locking — M8 X 1.25 | 7547332 |
| 18 | 1 | Strut, Fixed — Timbersled Ripper (260 mm) | 5141221 |
| 19 | 1 | Screw — M10 X 1.5 X 50 | 7518971 |
| 20 | 1 | Nut, Locking — M10 X 1.5 | 7547423 |
| 21 | 5 | Cable Tie | 7081504 |
| 22 | 1 | Reducer-Spindle — Yamaha®, LH | 5411394 |
| 23 | 1 | Reducer-Spindle — Yamaha®, RH | 5141393 |
| 24 | 1 | Spacer, Timbersled Ripper — Yamaha® | 5141220 |

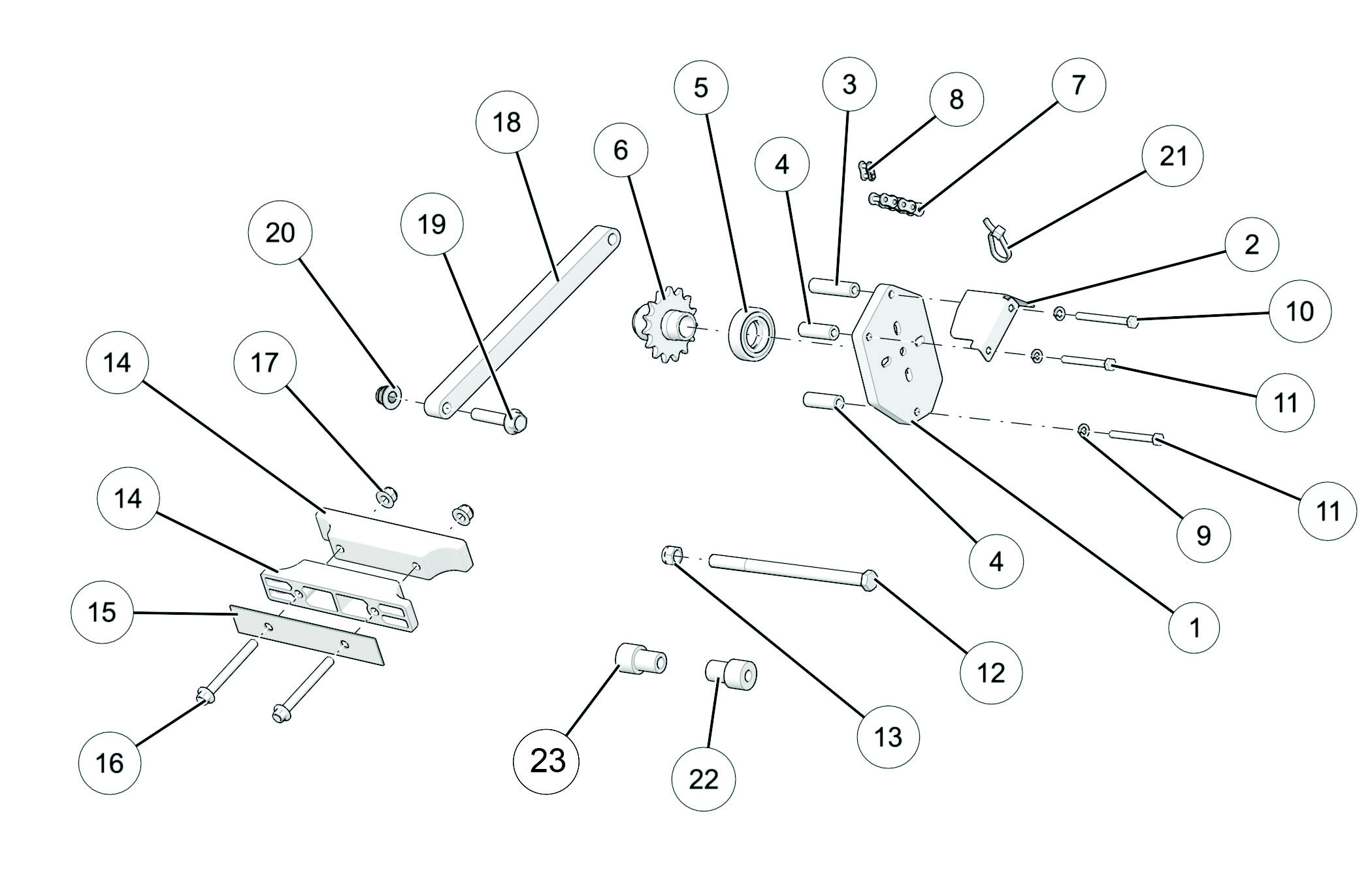

INSTALL KIT: 2883779
This install kit is specific to the Kawasaki® models
listed in the application section:
| Ref | Qty | Part Description | Part Number |
|---|---|---|---|
| 1 | 1 | Asm, Backer Plate — Kawasaki® | 1334173 |
| 2 | 1 | Bracket, Chain Guard — Kawasaki® | 5266678–458 |
| 3 | 1 | Backer Spacer, Long — Kawasaki® | 5142454 |
| 4 | 2 | Backer Spacer, Short — Kawasaki® | 5142455 |
| 5 | 1 | Bearing-Ball | 3514549 |
| 6 | 1 | Drive Sprocket — Kawasaki® | 1333885–329 |
| 7 | 1 | Chain, 420 — Timbersled Ripper | 3222364 |
| 8 | 1 | Master Link, 420 Chain | 3222285 |
| 9 | 3 | Lock Washer-Split | 7557064 |
| 10 | 1 | Screw — M6 X 1.0 X 65 | 7520729 |
| 11 | 2 | Screw — M6 X 1.0 X 55 | 7520728 |
| 12 | 1 | Screw — 7/16–14 X 6.5 | 7520726 |
| 13 | 1 | Nut, Locking, 7/16–14 | 7542525 |
| 14 | 2 | Clamp, Fork Tube — Timbersled Ripper | 5455474 |
| 15 | 1 | Plate, Fork Tube, Clamp | 5264330–458 |
| 16 | 2 | Screw — M8 X 1.25 X 75 | 7519948 |
| 17 | 2 | Nut, Locking — M8 X 1.25 | 7547332 |
| 18 | 1 | Strut, Fixed — Timbersled Ripper (235 mm) | 5141388 |
| 19 | 1 | Screw — M10 X 1.5 X 50 | 7518971 |
| 20 | 1 | Nut, Locking — M10 X 1.5 | 7547423 |
| 21 | 5 | Cable Tie | 7081504 |
| 22 | 1 | Reducer-Spindle — Kawasaki®, LH | 5141392 |
| 23 | 1 | Reducer-Spindle — Kawasaki®, RH | 5141392 |
