IMPORTANT

The Owner's Manual for this vehicle contains warnings, instructions and other information you must read and fully understand before safely riding or performing maintenance on this vehicle. Always follow the warnings and instructions in Owner's Manual.

Click the link above for the Table Of Contents, or download a full PDF of the Owner Manual in the Owner Support area of Polaris.com.

Blind Spot Warning

When riding, there is an area behind each side of the motorcycle and rider that is not always visible to the rider even when using the mirrors. These are referred to as the blind spot zones. Blind Spot Warning alerts the rider to vehicles in these blind spots zones. It uses the rear radar to monitor adjacent lanes and activates visual warnings on the display and mirrors when vehicles enter or are approaching the blind spot zones. Blind Spot Warning will only be active above 10 mph (16 km/h). A Blind Spot Warning will not appear if the motorcycle is passing another vehicle faster than 8 mph (13 km/h) relative to the other vehicle.

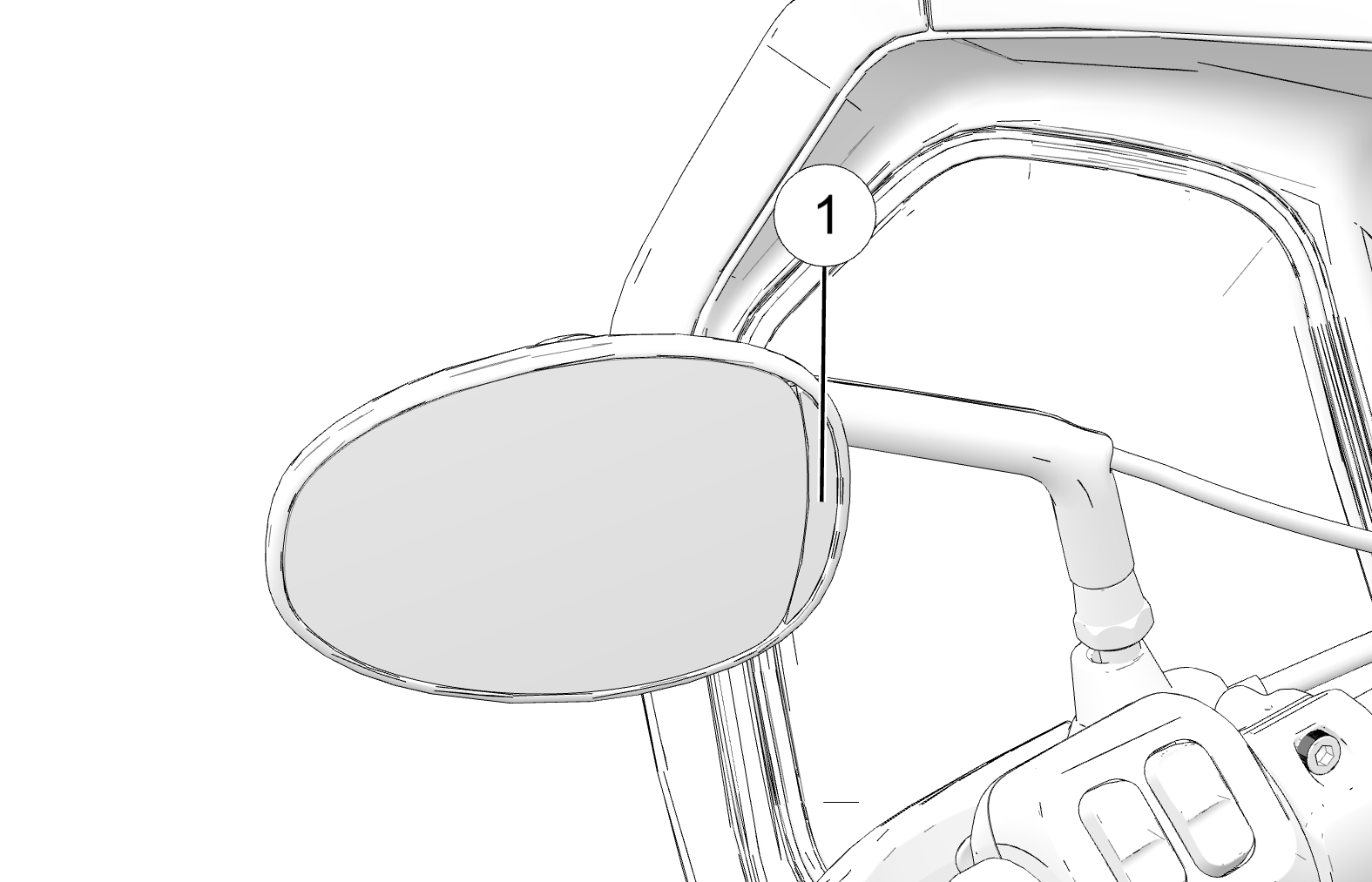

Rear View Mirrors—Blind Spot Warning Light

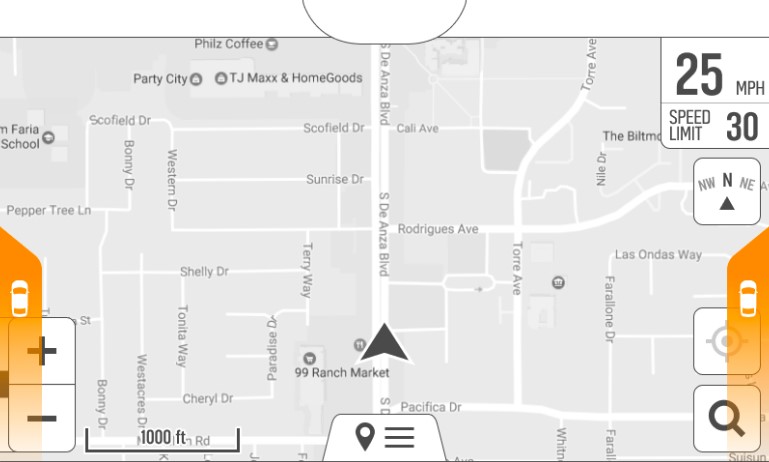

Blind Spot Warning Shown on the Display Screen

Rear Radar Sensor area

WARNING

The Blind Spot Warning is an aid. It does not replace the need for the rider to be aware of all situations when riding.

The rider must always maintain a high level of awareness and concentration while riding, always use the mirrors and check the blind spots. The rider must not solely rely on the Blind Spot Warnings. The rider must also look over their shoulder (head check) prior to overtaking or changing lanes.

The rider is responsible for detecting all other vehicles, estimating the distance between them and the motorcycle, and then maneuvering the motorcycle in a safe and responsible way to avoid any collision.

The rider must also obey all speed limits, observe all road signs and road markings, and react accordingly to any environmental influences such as thick fog, heavy rain, etc.

Operating and riding the motorcycle safely and correctly is always the rider’s sole responsibility.

WARNING

The performance of the rear radar sensor may be affected by smaller vehicles such as bicycles or motorcycles, or vehicles with large flat surfaces such as trailers.

Riders may be warned with a delay, or not at all, due to the time required for the system to calculate and inform the rider of vehicles approaching and entering the blind spot zones at higher speeds.

WARNING

The rear radar sensor cover may become covered by road dirt, mud, rain, ice, snow, etc.

Always make sure to check and carefully clean the rear radar sensor cover before riding the motorcycle. Ensure only soapy water and a soft sponge are used to clean the rear radar sensor cover and avoid using any abrasive material or chemicals that could damage the cover.

Do not paint over, attach stickers to, or attach other objects to the rear radar sensor.

The rear radar sensor’s ability to detect a vehicle in the rider’s blind spot may be effected and give incorrect indications. This may lead to a motorcycle accident.

WARNING

Always make sure that no accessories, luggage, or passenger’s items cover or obscure the rear radar sensor cover or sensor range.

When riding with a passenger make sure that their clothing does not overhang the seat and cover the rear radar sensor cover.

The rear radar sensor’s ability to detect a vehicle in the rider’s blind spot zone will be affected if foreign objects enter or cover the rear radar’s field of view and could send incorrect or missing warnings. This may lead to a motorcycle accident.

NOTICE
The performance of the rear radar may be affected by incorrectly set rear suspension preload. Refer to the Shock Preload Adjustment section to ensure the rear suspension preload is set correctly for the loading conditions.

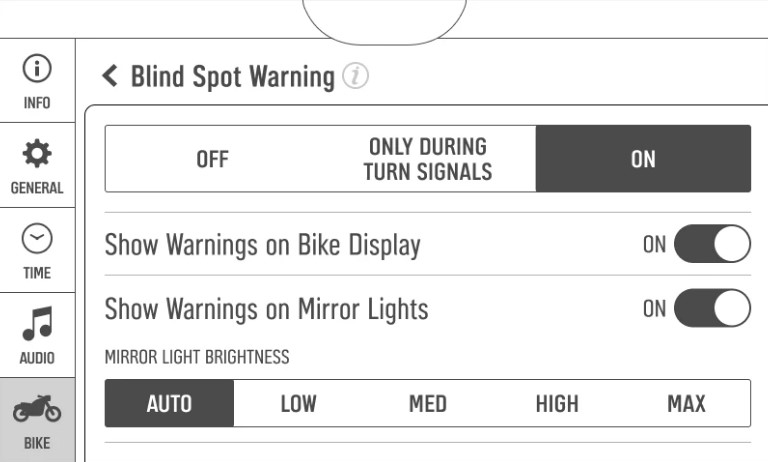

Blind Spot Warning Settings

The Blind Spot Warning system can be enabled and disabled manually by the rider.

The mirror light brightness can be changed in the Blind Spot Warning settings. The AUTO setting will continuously adjust the mirror light brightness to account for the ambient light conditions.

There are two levels of warnings when this feature detects a vehicle.

  1. Level 1 activates when a vehicle moves into or is approaching the blind spot zone. A warning bar shows on the side of the display and the mirror light activates on the side the vehicle is located.

  2. Level 2 activates when a vehicle is in or is approaching the blind spot zone and the rider activates the turn signal on that side of the bike. The car icon in the display warning bar and the mirror light flash.

The ON setting allows both Level 1 and Level 2 warnings. The ONLY DURING TURN SIGNALS setting allows only Level 2 warnings. The OFF setting disables all warnings. Warnings on the bike display or on the mirror can be disabled individually.
