Headlight Aim Adjustment

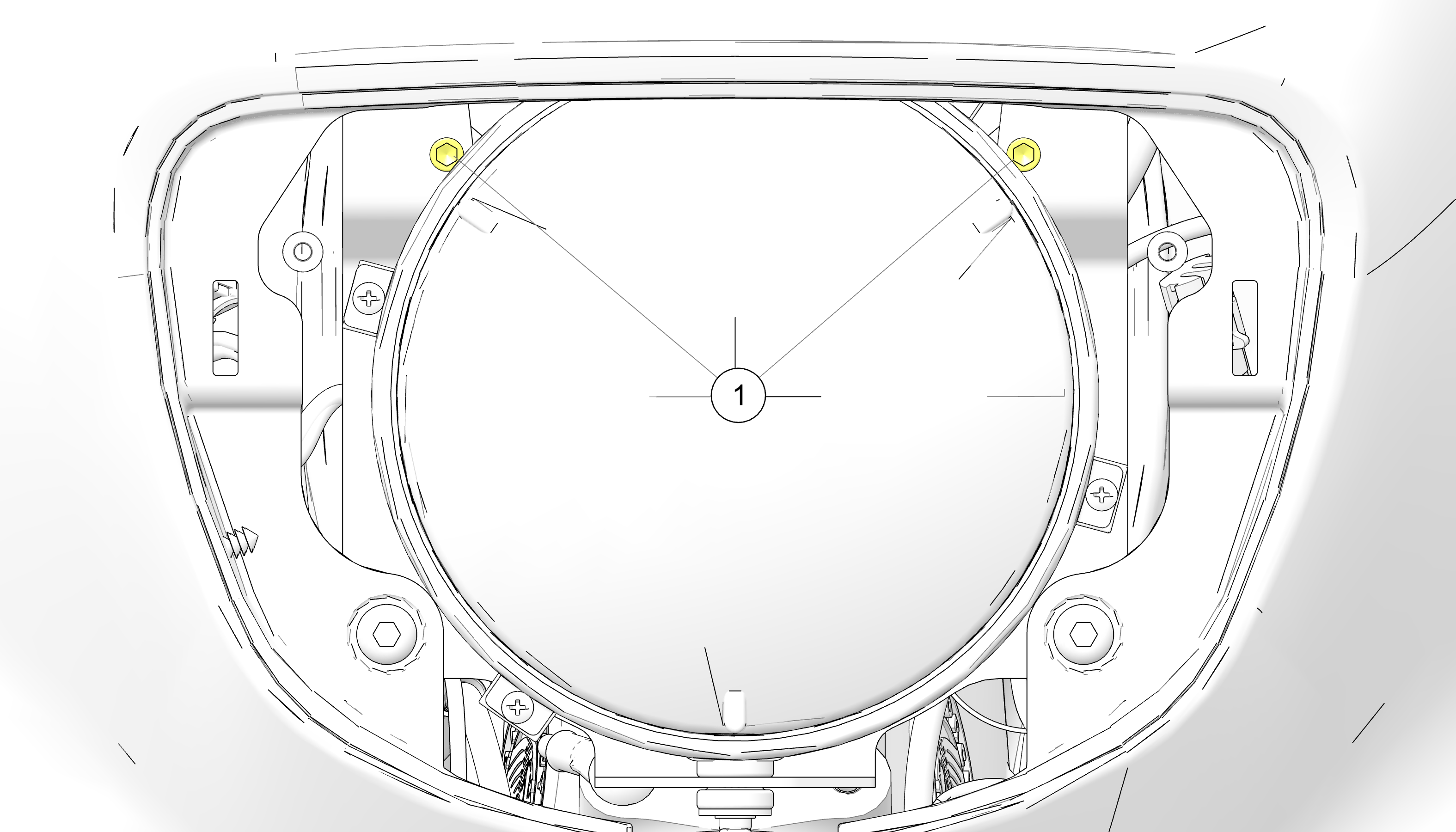

Challenger and Pursuit Models

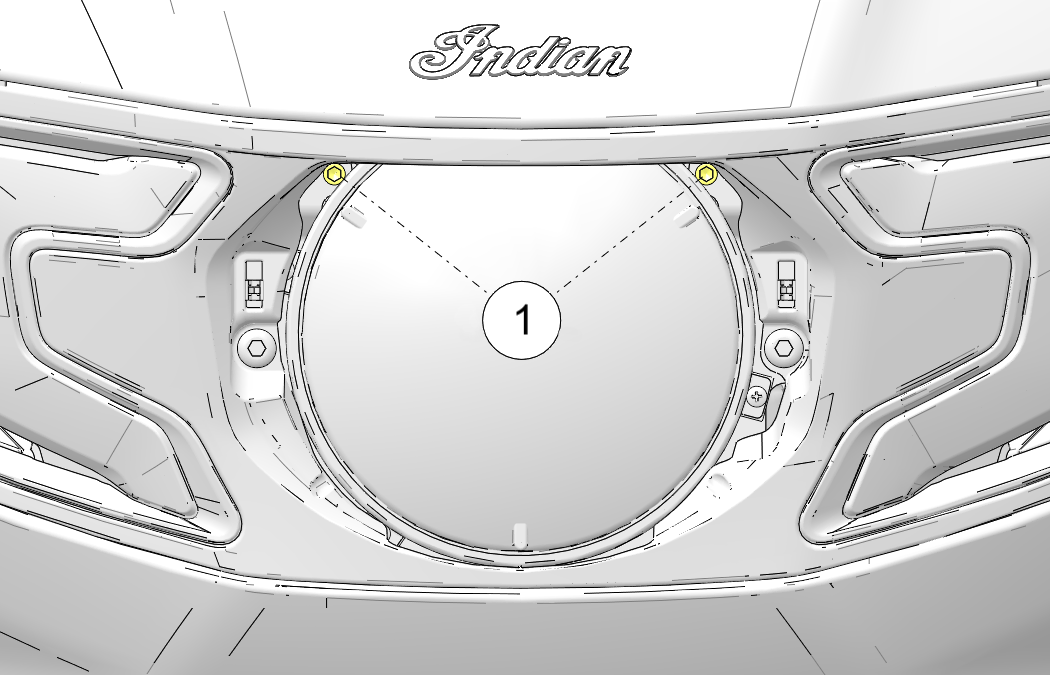

Chieftain PowerPlus and Roadmaster PowerPlus Models

The headlamp adjustment screws 1 are located inside the headlamp housing.

  1. Remove the headlight bezel by prying down at the top center to release the retention detent. Then pull forward from the top to release the side retention clips.

  2. To adjust the headlamp vertically, tighten both top adjustment screws equally to adjust the beam upward. Loosen both screws equally to adjust the beam downward.

    Tool: M4 hex wrench or universal tool

  3. To adjust the headlamp horizontally, while facing the headlight, loosen the left side screw to adjust the beam to the left. Loosen the right side screw to adjust the beam to the right.
