Front Brake Lever

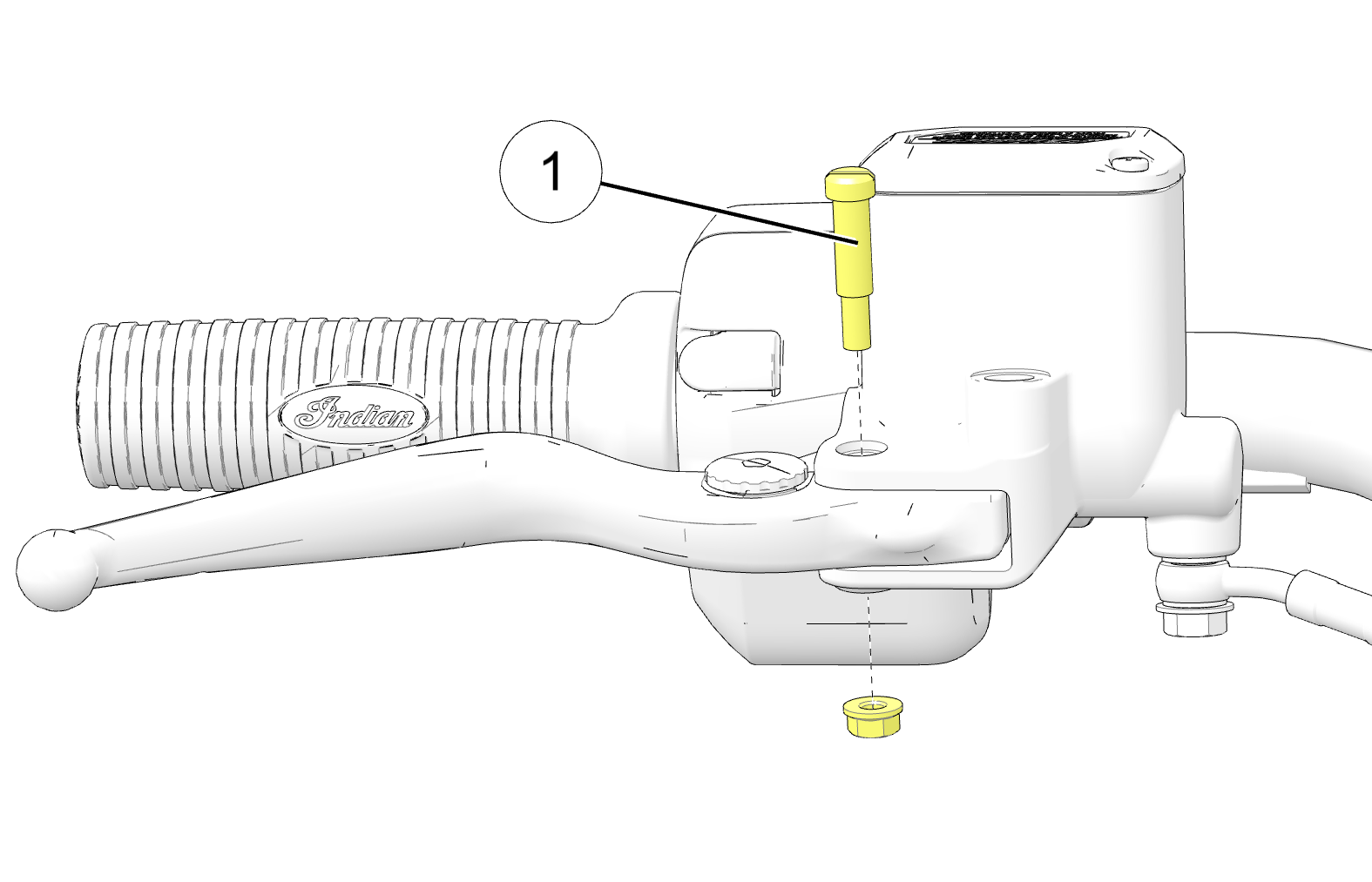

  1. Lubricate the pivot pin 1 and brake lever hinge points at the intervals recommended in the Periodic Maintenance Table. Also lubricate any time binding is evident. Use all-purpose grease.

  2. Inspect brake pads as outlined on Brake Pads.

TORQUE

Pivot Pin:

8.85 in-lbs (1 N·m)

Pivot Pin Nut:

53 in-lbs (6 N·m)
