Side Panel / Footwell Removal

LEFT SIDE PANEL / FOOTWELL

  1. Remove the seat.

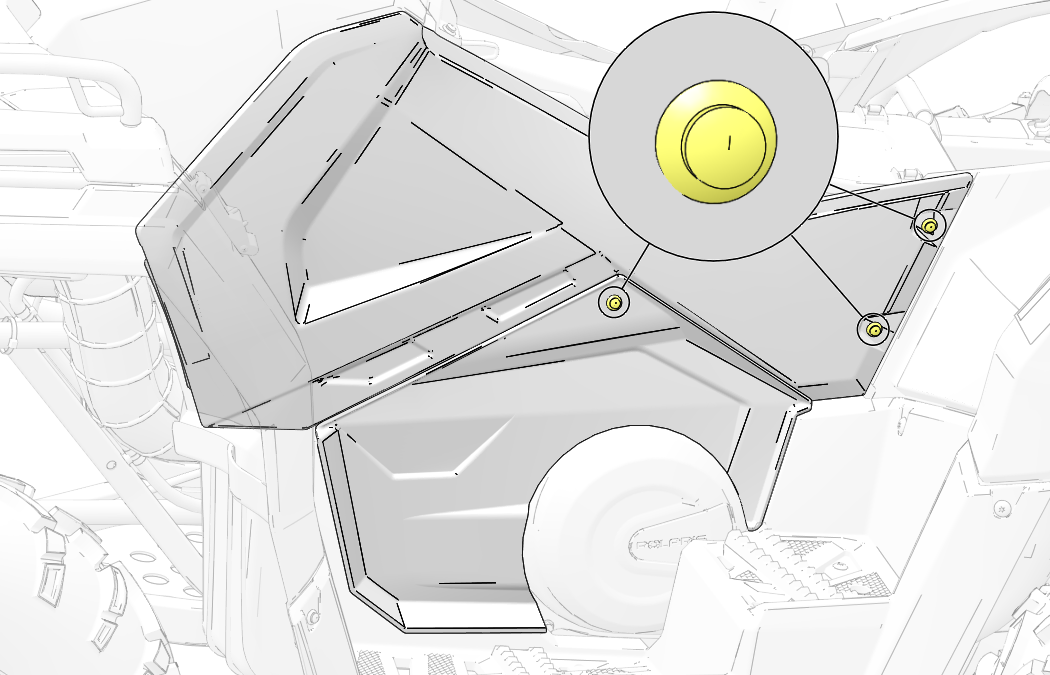

  2. Use the multi-function pliers (included in your vehicle’s toolkit) to remove the three push rivets from the side panel and close off panel.

  3. Grasp the rear of the side panel. With a firm motion, pull the side panel outward to disengage it from the vehicle.

  4. Remove the close off panel.

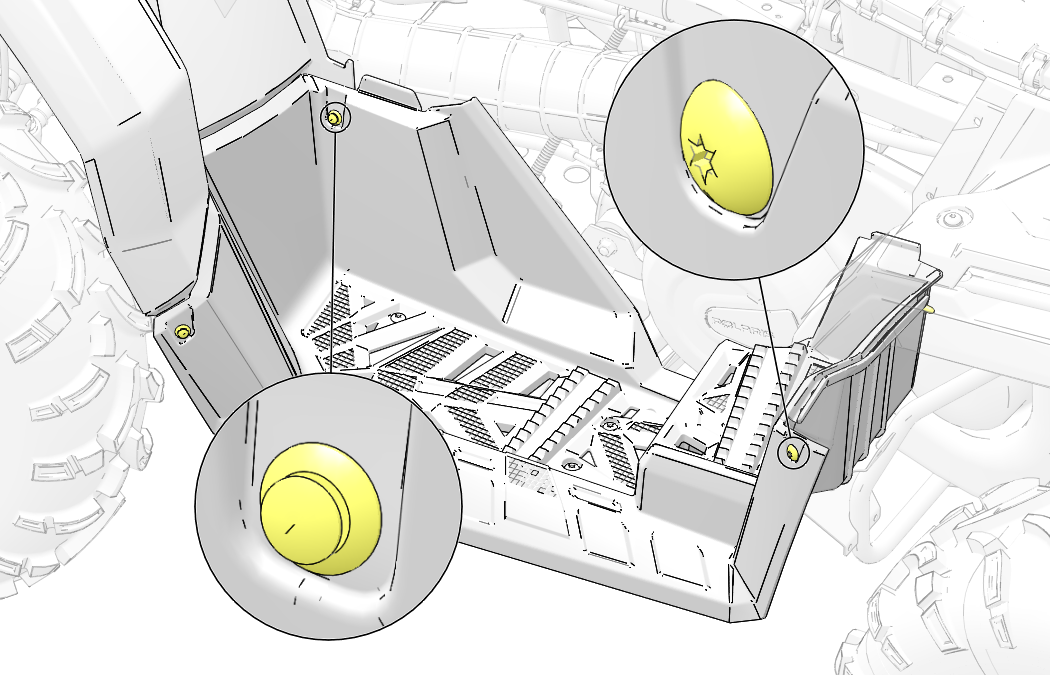

  5. Remove the two screws and two push rivets from the footwell.

  6. Remove the six screws and nuts from the bottom of the footwell. Pull the footwell downward and outward to remove it.

RIGHT SIDE PANEL / FOOTWELL

  1. Remove the seat.

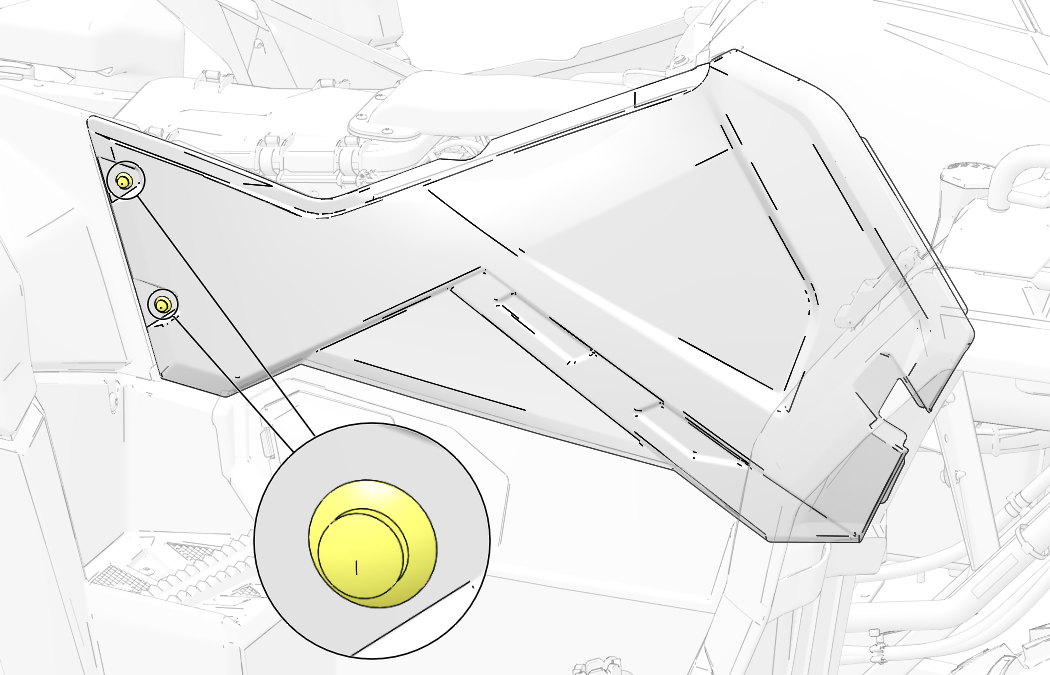

  2. Use the multi-function pliers (included in your vehicle’s toolkit) to remove the two push rivets from the side panel.

  3. Grasp the rear of the side panel. With a firm motion, pull the side panel outward to disengage it from the vehicle.

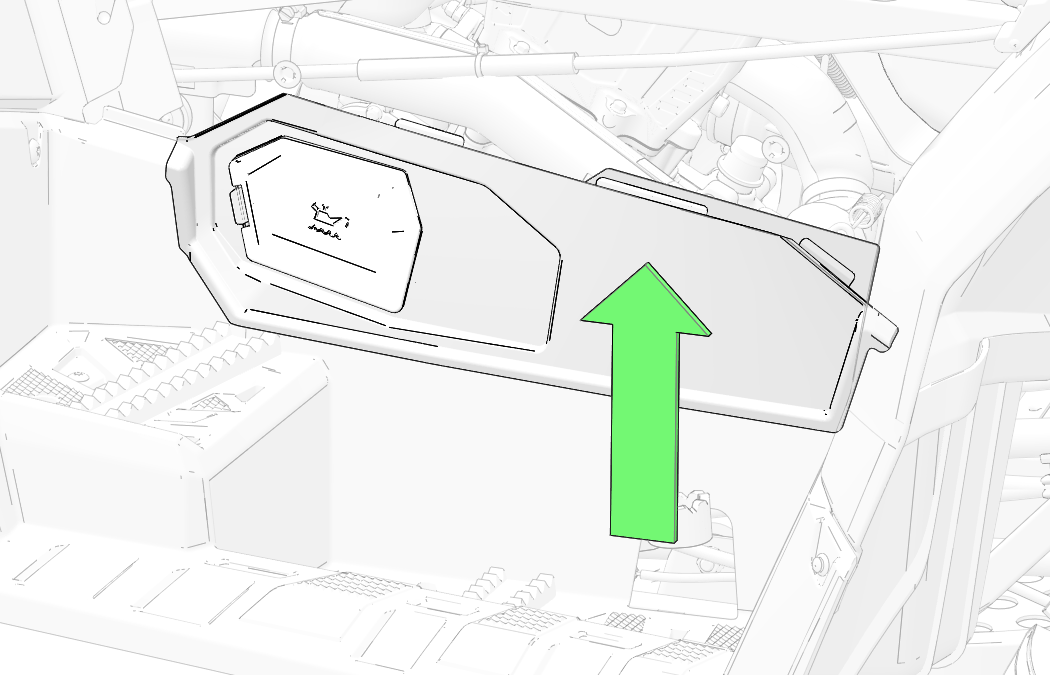

  4. Lift the close off shield out of the vehicle.

    NOTICE
    The engine access panel is also removed.

  5. Remove the two screws and two push rivets from the footwell.

  6. Remove the six screws and nuts from the bottom of the footwell. Pull the footwell downward and outward to remove it.
