IMPORTANT

The Owner's Manual for this vehicle contains warnings, instructions and other information you must read and fully understand before safely riding or performing maintenance on this vehicle. Always follow the warnings and instructions in Owner's Manual.

Click the link above for the Table Of Contents, or download a full PDF of the Owner Manual in the Owner Support area of Polaris.com.

Oil Level Check

IMPORTANT

Check the oil level when the engine is cold. Never check the oil with the engine running or damage to the dipstick and / or engine could occur.

  1. Position the vehicle on a level surface and put the transmission in PARK (P). Stop the engine and lock the temporary brake lock.

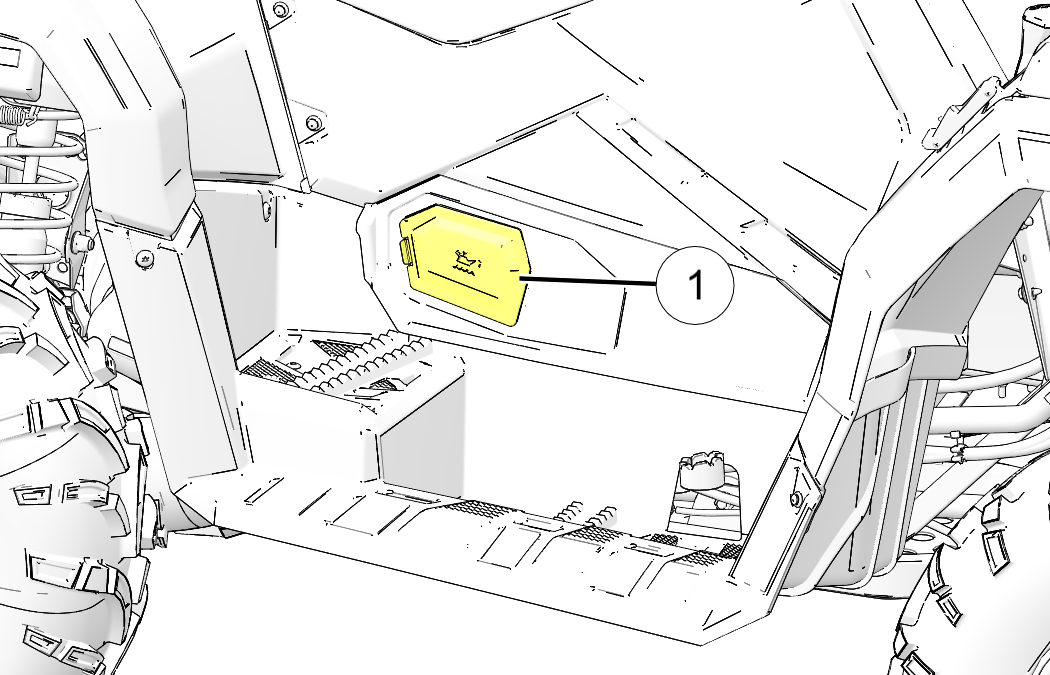

  2. Remove the engine access panel 1 on the right side of the vehicle.

  3. Clean the area around the dipstick.

  4. Remove the dipstick by twisting it counter-clockwise until it can be pulled out. Wipe it dry with a clean cloth.

  5. Install the dipstick and tighten it all of the way to ensure an accurate measurement.

  6. Remove the dipstick and check the oil level.

    The oil level should be within the safe range (between the FULL and ADD marks) on the dipstick.

  7. Use a funnel to slowly add the recommended oil as needed. Do not overfill.

  8. Reinstall the dipstick and the engine access panel.

    TIP

    A rising oil level between checks in cool weather driving may indicate contaminants, such as gas or moisture, collecting in the engine crankcase. If the oil level is over the FULL mark, change the oil immediately.
