Halogen Front Bumper Headlight
Adjustment (If Equipped)

The halogen front bumper lights can be adjusted slightly upward or downward.

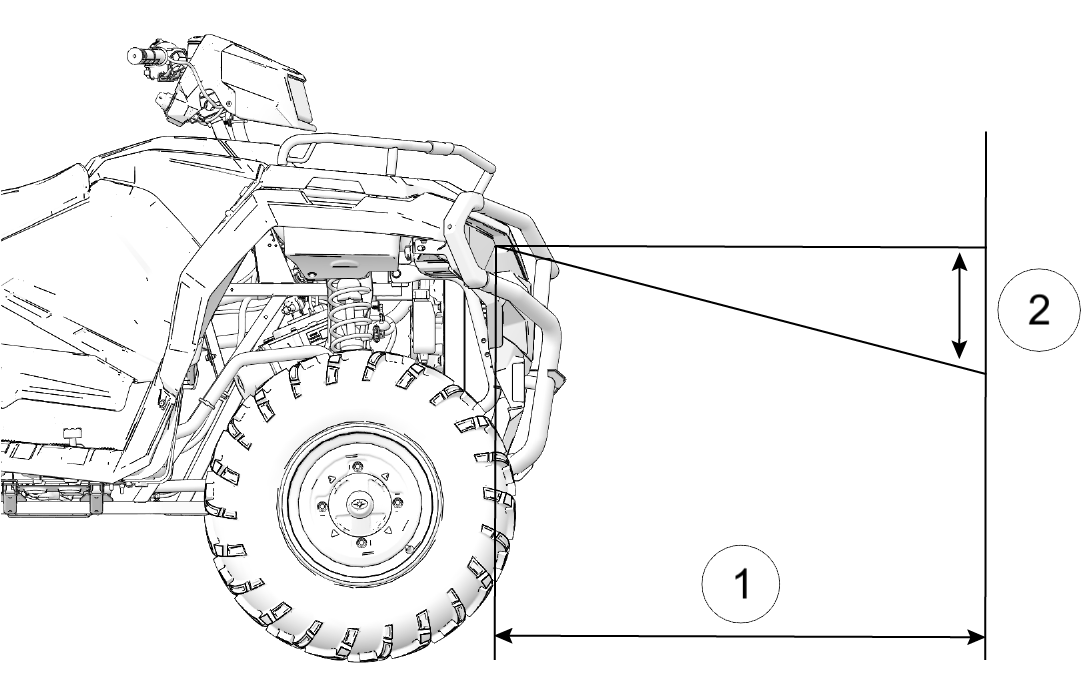

  1. Place the vehicle on a level surface with the front bumper lights approximately 23 ft (7 m) from a wall 1.

  2. Put the transmission in PARK (P).

  3. Load the vehicle with the equivalent weight of a rider.

  4. Measure the distance from the floor to the center of each front bumper light and make a mark on the wall at the same height.

  5. Turn the ignition ON and turn the front bumper lights to low beam.

  6. Observe the headlight aim on the wall 2. The horizontal line, separating the lit-zone from the unlit-zone should be aimed 8 in (20 cm) below the mark placed on the wall in step 4.

  7. Unlock the front rack latches 1 and open the front rack.

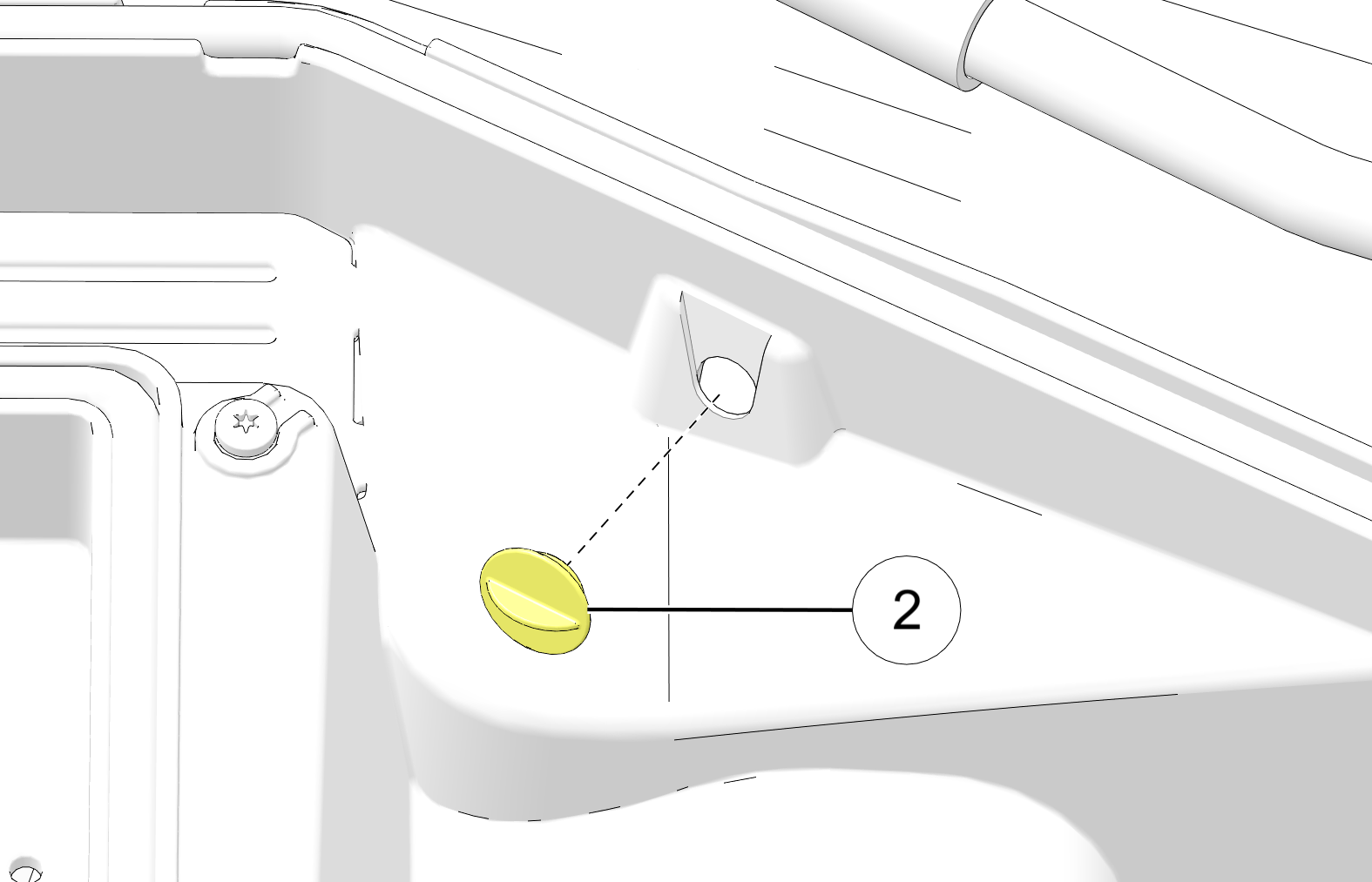

  8. Remove the compartment plug 2 from the front cab.

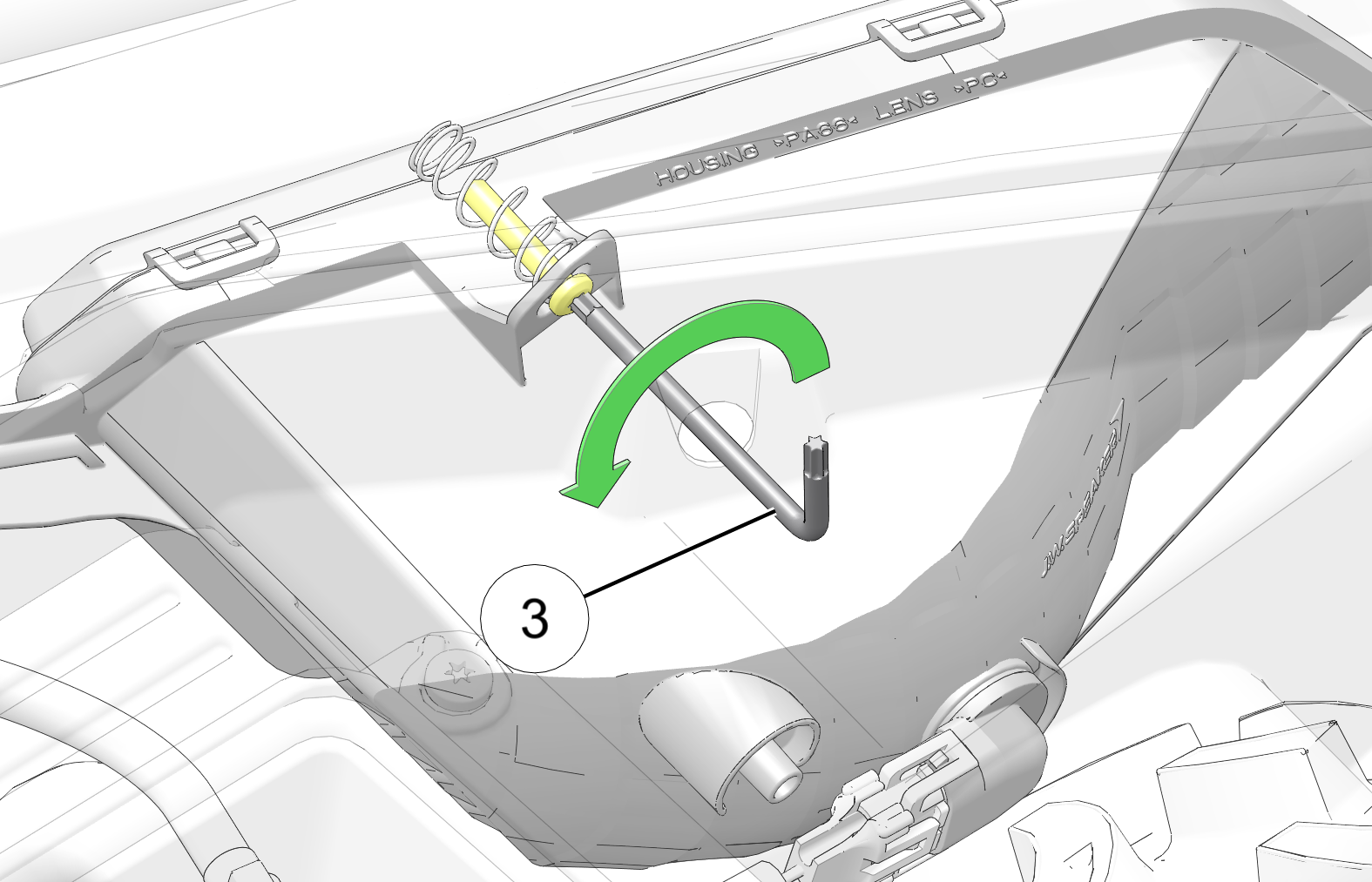

  9. Insert the Torx® wrench tool 3 (included in your vehicle’s tool kit) through the compartment plug hole to access the screw on the back of the front bumper light. Loosen the screw.

  10. Tilt the front bumper light upward or downward.

  11. Tighten the screw.

  12. Repeat steps for the other front bumper light.
