All Wheel Drive System
IMPORTANT
Switching to AWD or ADC mode (if equipped)
while the rear wheels are spinning may cause severe drive shaft and
gearcase damage. Always switch to AWD or ADC mode (if equipped) while
the rear wheels have traction or are at rest.

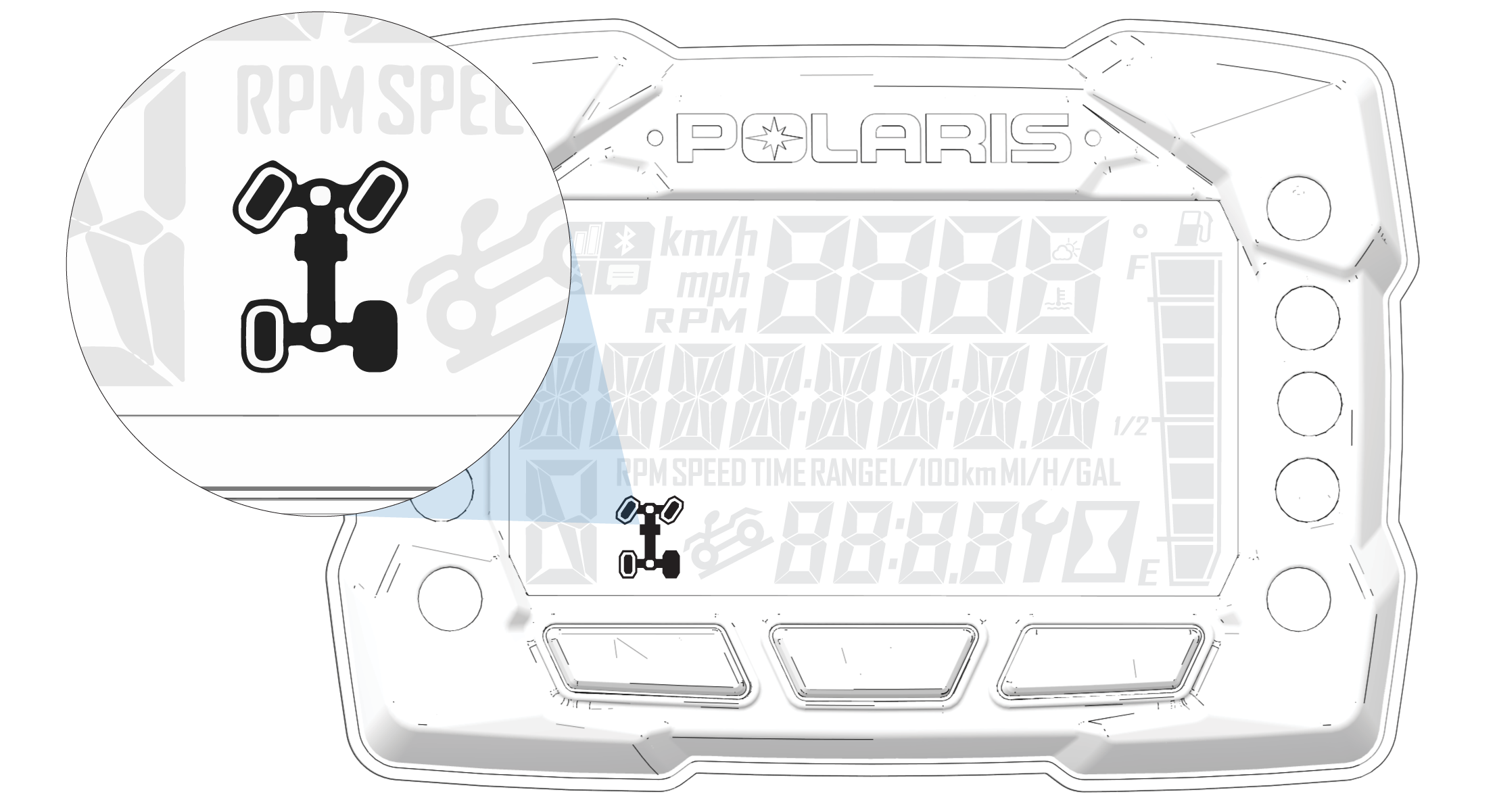

The All Wheel Drive (AWD) system is controlled by the Driveline Switch. Engage AWD before getting into conditions where AWD may be needed. If the rear wheels are spinning, release the throttle before switching to AWD.
 |
 |

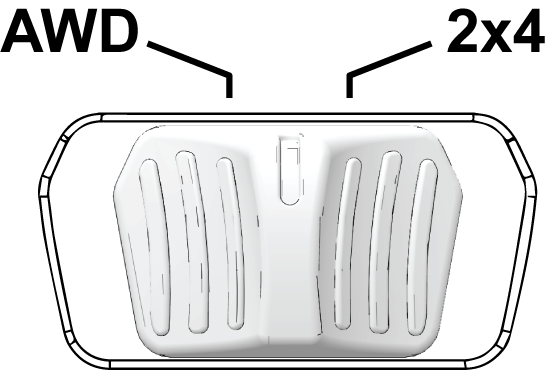

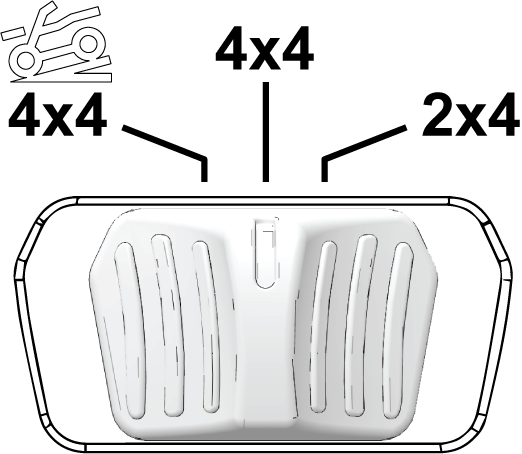

| AWD Models | ADC Models |
