Radiator Coolant

To ensure that the coolant maintains its ability to protect the engine, we recommend that the system be completely drained every five years and fresh Antifreeze 50/50 Premix added.

Any time the cooling system has been drained for maintenance or repair, replace the coolant with fresh Antifreeze 50/50 Premix. If the recovery bottle has run dry, check the level in the radiator. Add coolant as needed.

CAUTION
Escaping steam can cause burns. Never remove the pressure cap while the engine is warm or hot. Always allow the engine to cool before removing the pressure cap.

  1. Unlock the front rack latches and open the front rack.

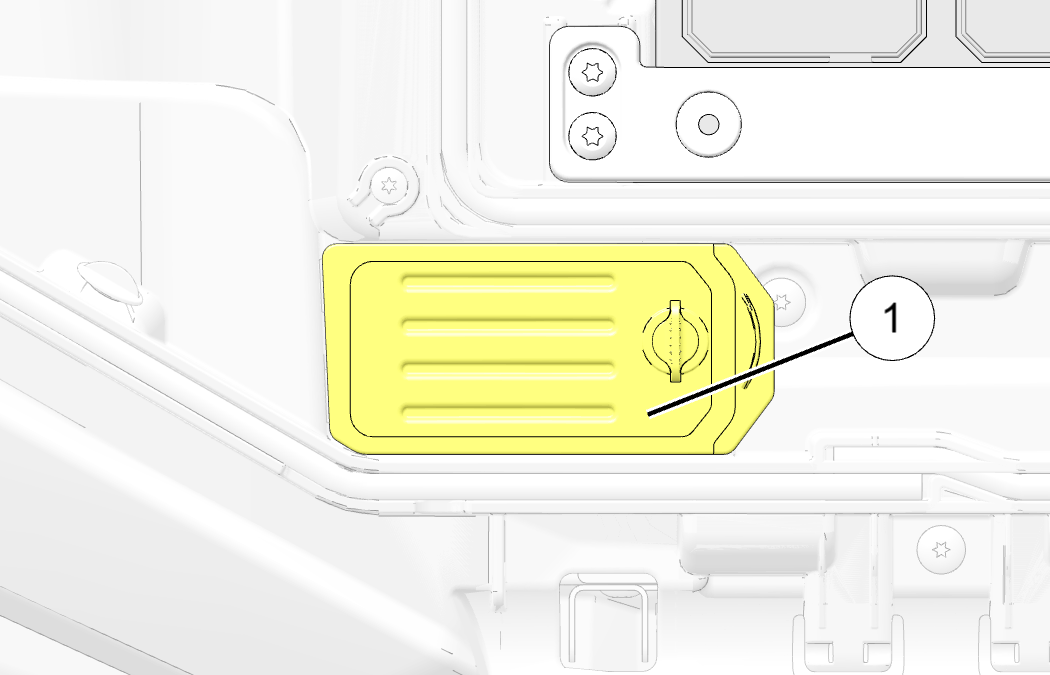

  2. Locate the radiator cap access cover 1 and open the cover.

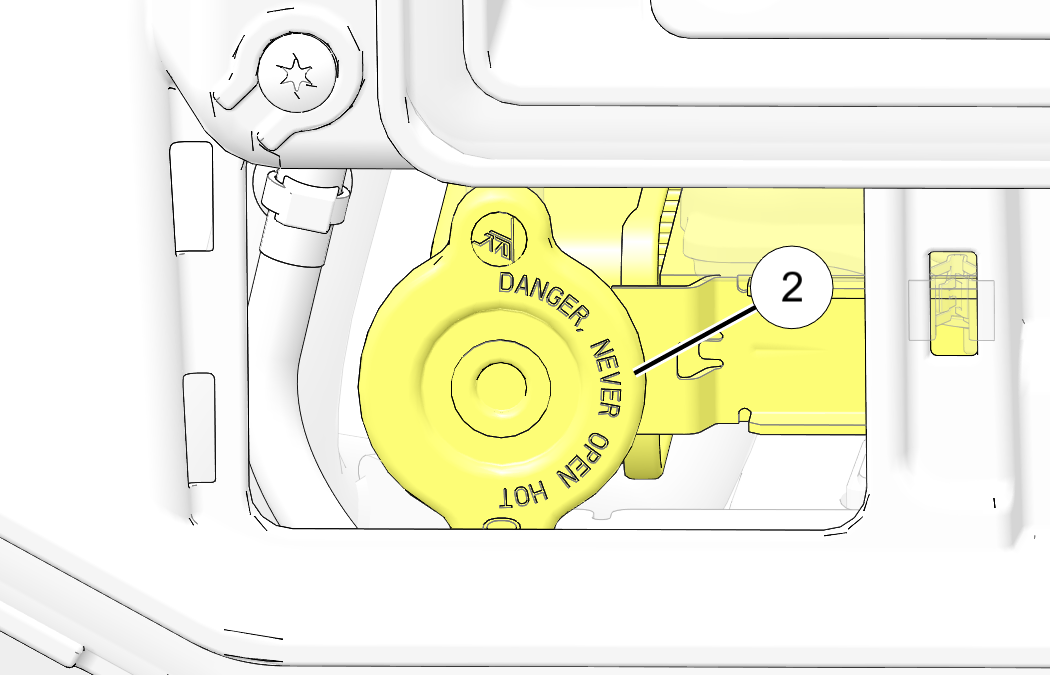

  1. Remove the pressure cap 2.

  1. Use a funnel to slowly add the proper amount of recommended coolant through the radiator filler neck.

  2. Install the pressure cap. Use of a non-standard pressure cap will not allow the recovery system to function properly. Your Polaris dealer can provide the correct replacement part.

  3. Close the radiator cap access cover and front rack.
