Suspension Spring Preload Adjustment
NOTICE
The rear shock absorber springs are adjustable
on all models. The front shock absorber springs are only adjustable
on dual a-arm suspension models.

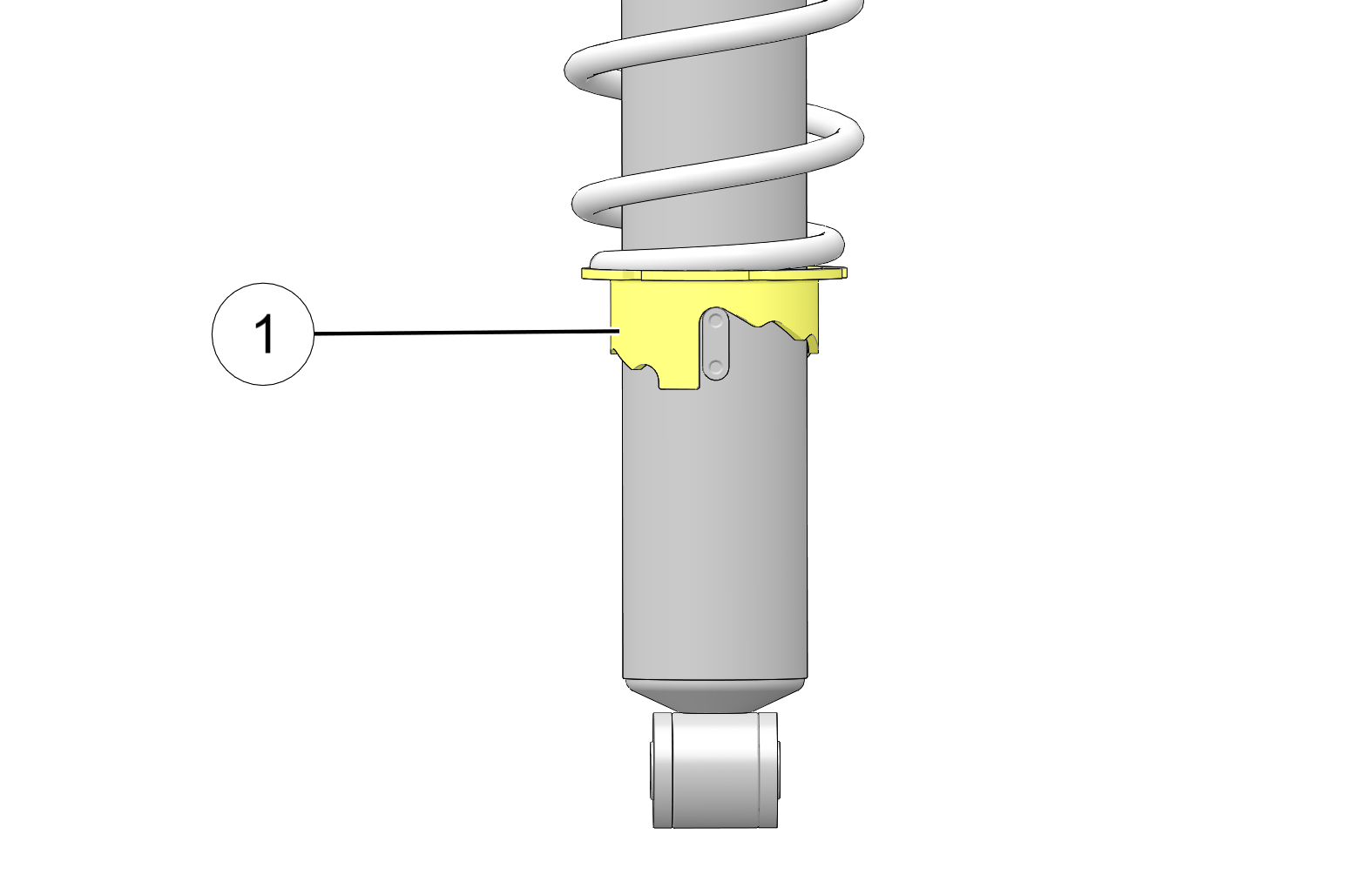

Rotate the adjuster cam 1 either direction to increase or decrease spring tension. Always adjust both the left and right sides equally.
Vehicle loads affect suspension spring pre-load requirements. Use the shock spanner wrench (included in your vehicle’s toolkit) to adjust pre-load as necessary to avoid bottoming of the shocks.
Shock Spanner Wrench:
PN 2871095-329
