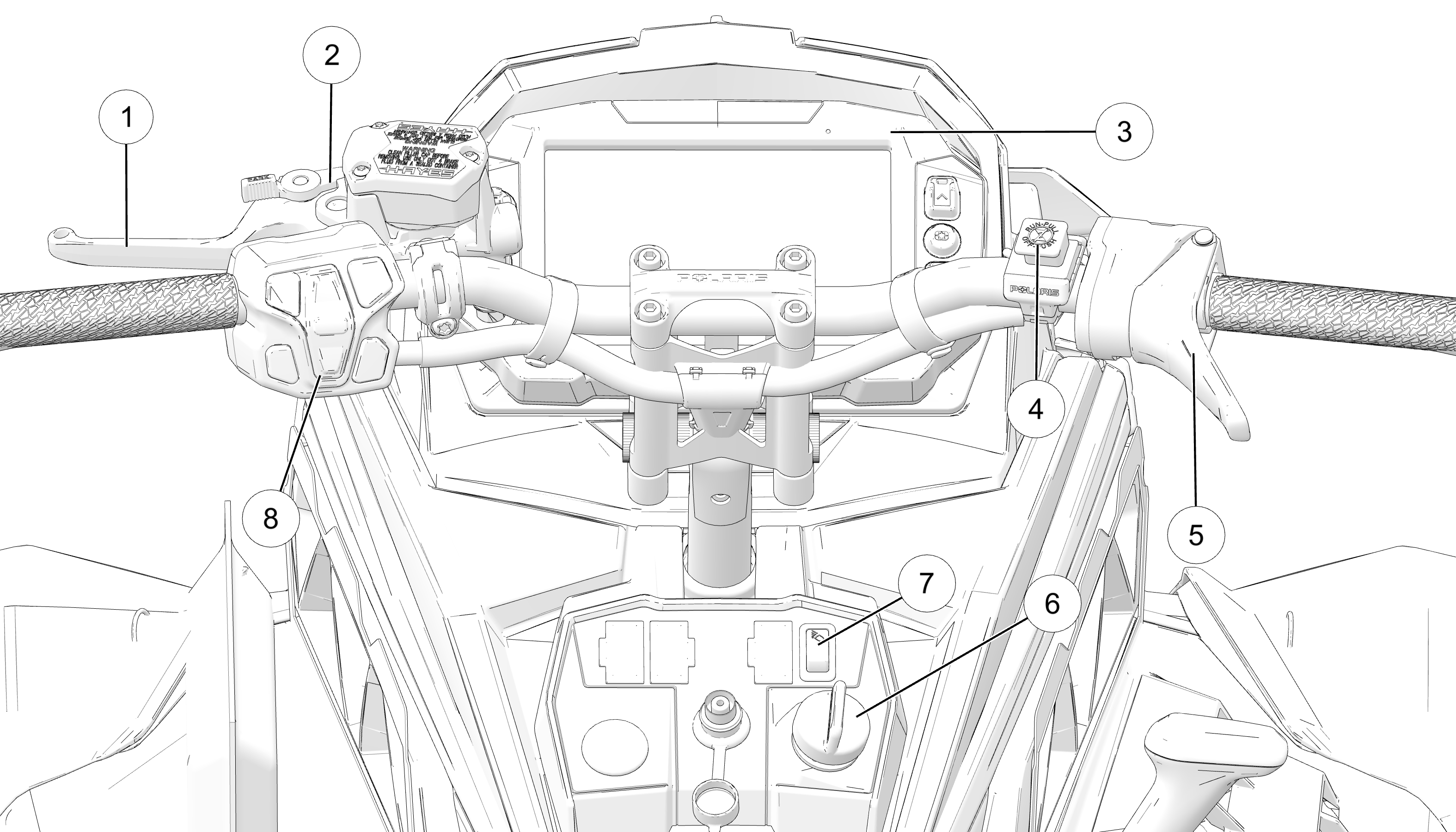

Controls

  • 1 Brake Lever

  • 2 Temporary Brake Lock

  • 3 Instrument Cluster

  • 4 Engine Stop Switch

  • 5 Throttle Control

  • 6 Ignition Switch

  • 7 Rear Work Light

  • 8 Left Hand Controls

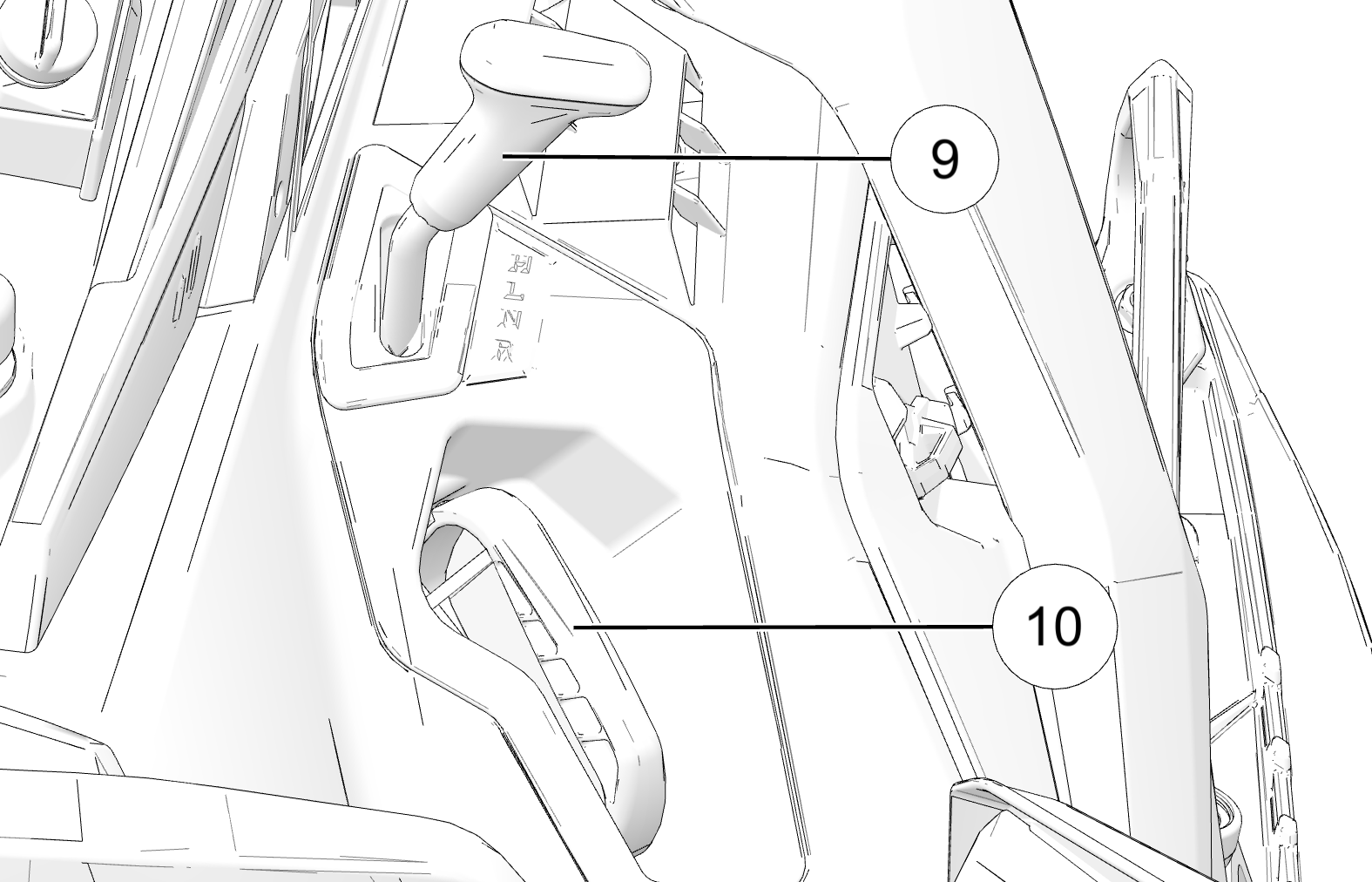

  • 9 Gear Shifter

  • 10 Recoil Starter Handle

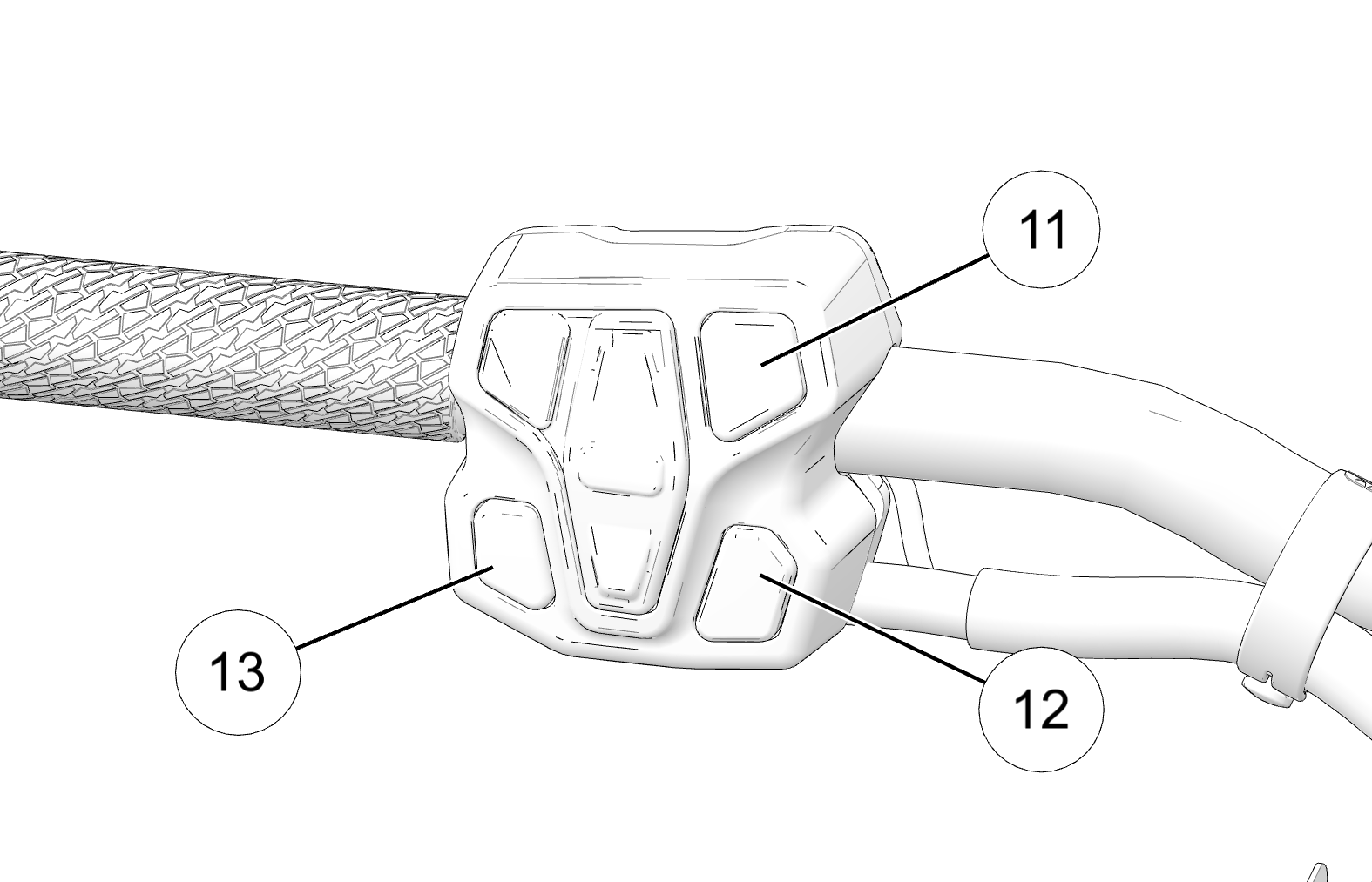

  • 11 Heated Grips Button

  • 12 Reverse Override Switch

  • 13 Headlight Dimmer Button

Not shown: Mirrors (if equipped)
Parent topic: Component Location
