Riser Angle

Riser angle can be adjusted to suit rider preference.

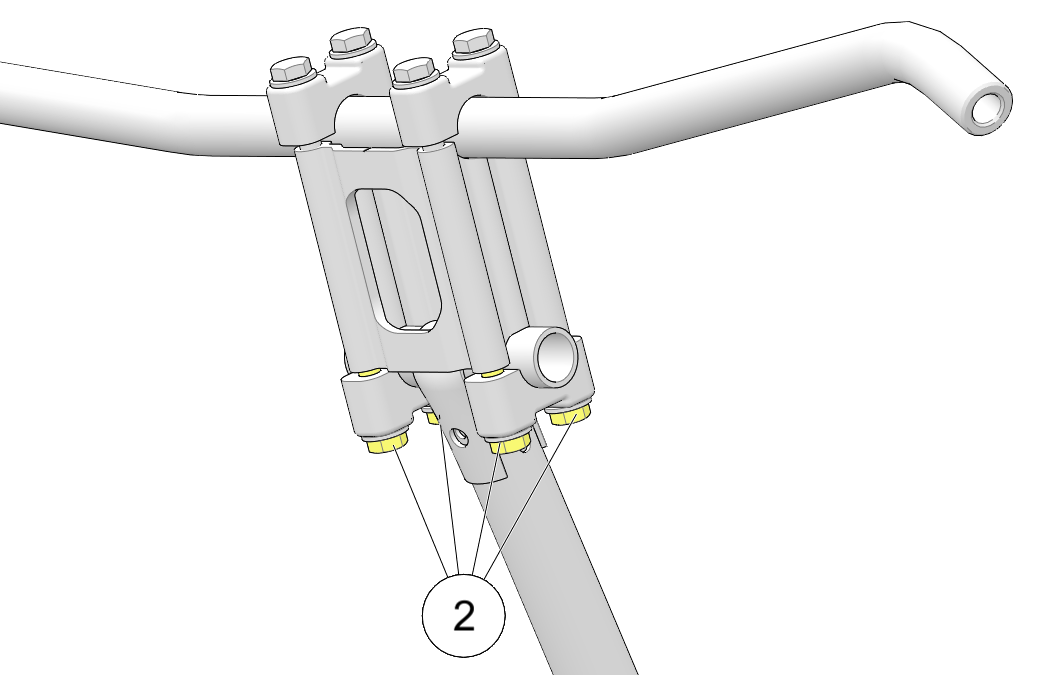

  1. Loosen the four bolts on the bottom of the adjuster block 2. If necessary, pry the blocks apart with a screwdriver.

  2. Adjust the riser forward or rearward to the desired position.

  3. Torque the bolts to specification.

    TORQUE

    Handlebar Riser Bolts:

    11 ft-lbs (15 N·m)

Parent topic: Handlebar Settings
