Drive Belt Removal

  1. Stop the engine after operating in a forward motion.

  2. Turn the ignition key off. Wait for the engine to come to a complete stop.

  3. Lock the temporary brake lock.

  4. Remove the left side panel.

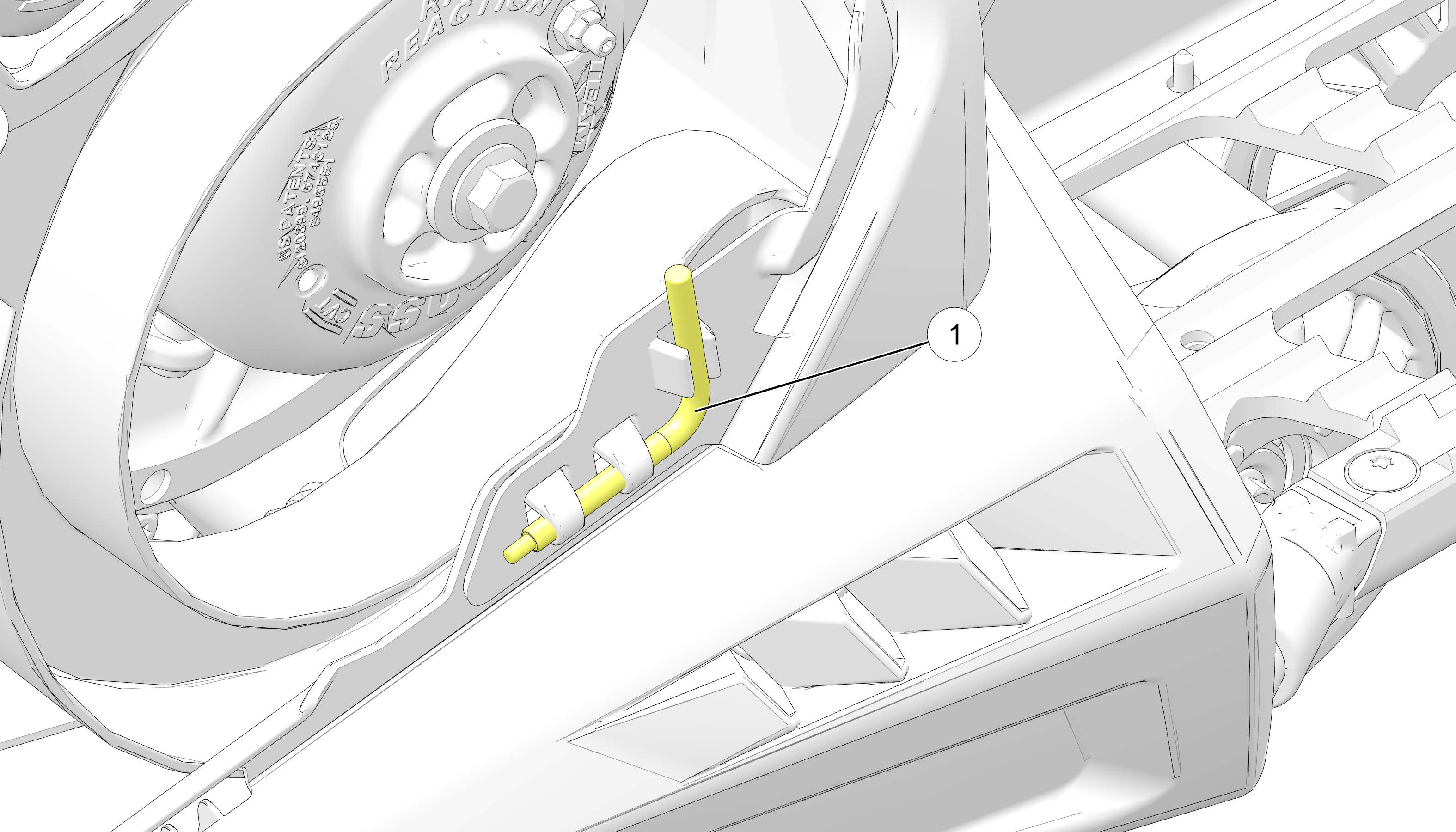

  5. Retrieve the L-wrench 1.

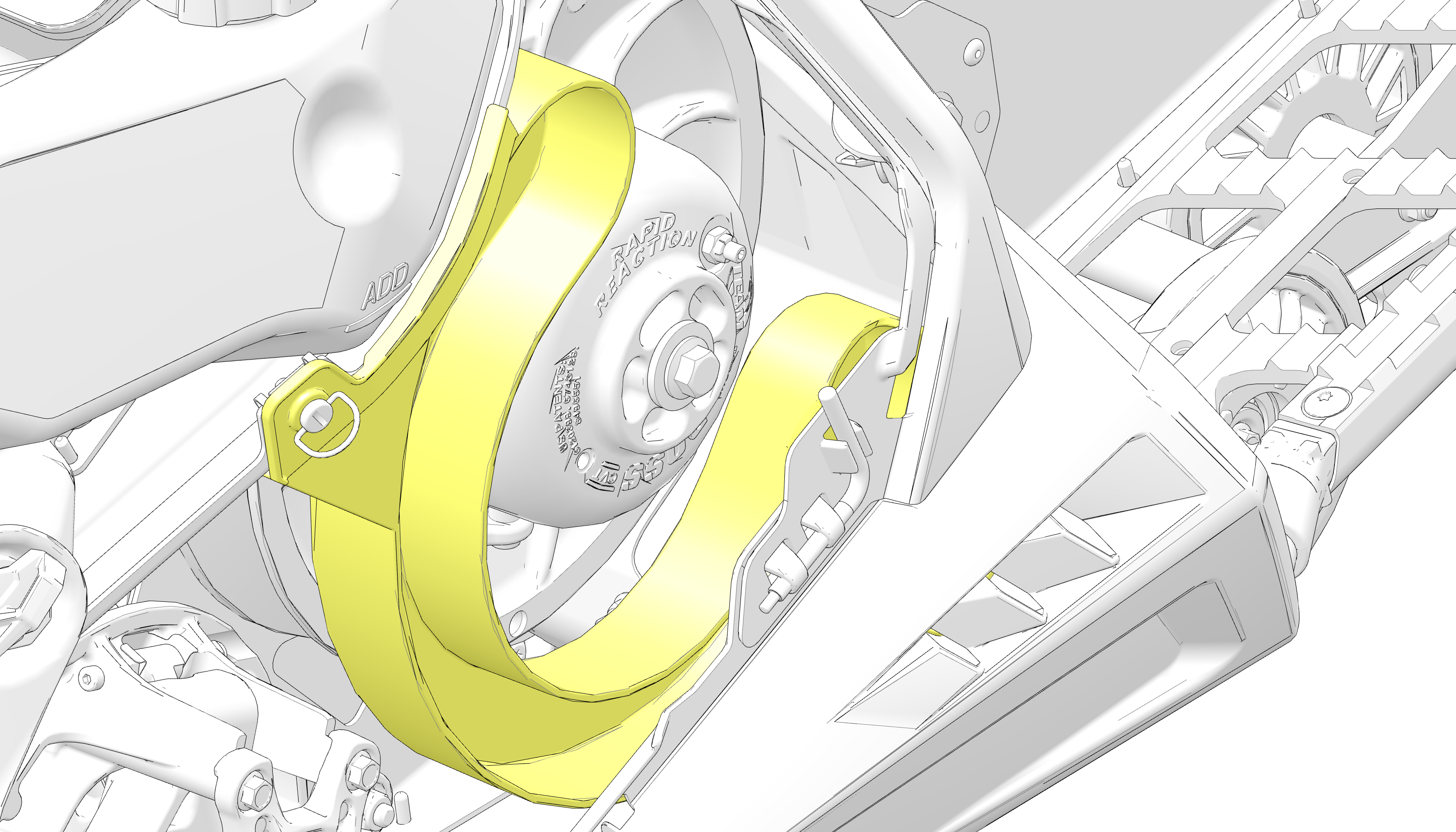

  6. Remove the spare belt holder.

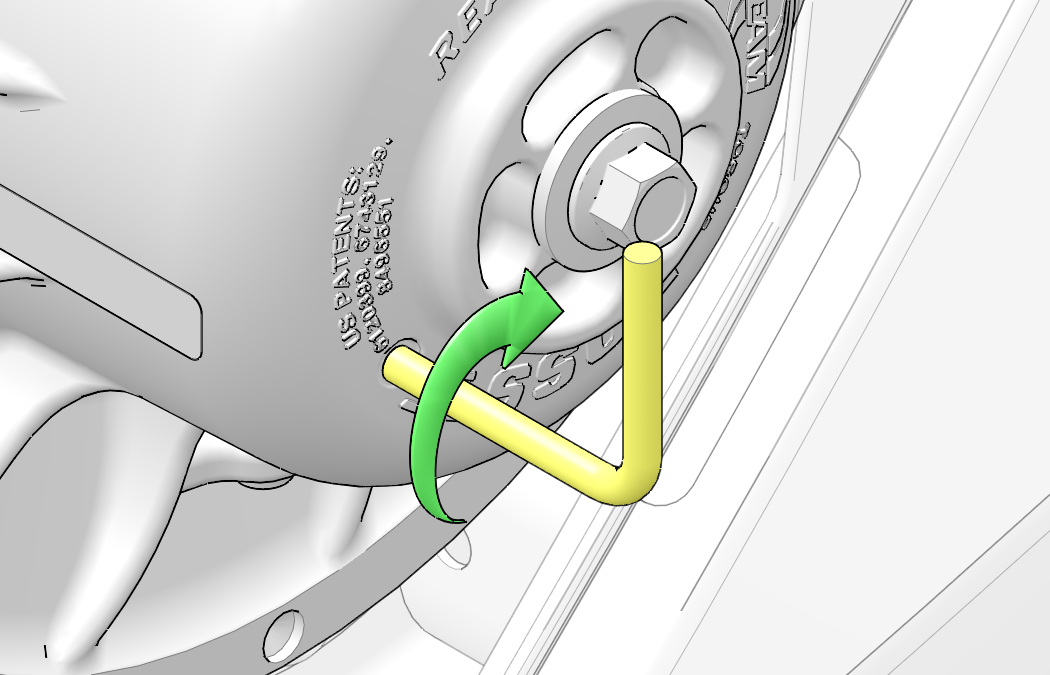

  7. Install the L-wrench into the open threaded hole in the outer sheave of the clutch.

  8. Turn the wrench clockwise until the sheaves open far enough to remove the belt.

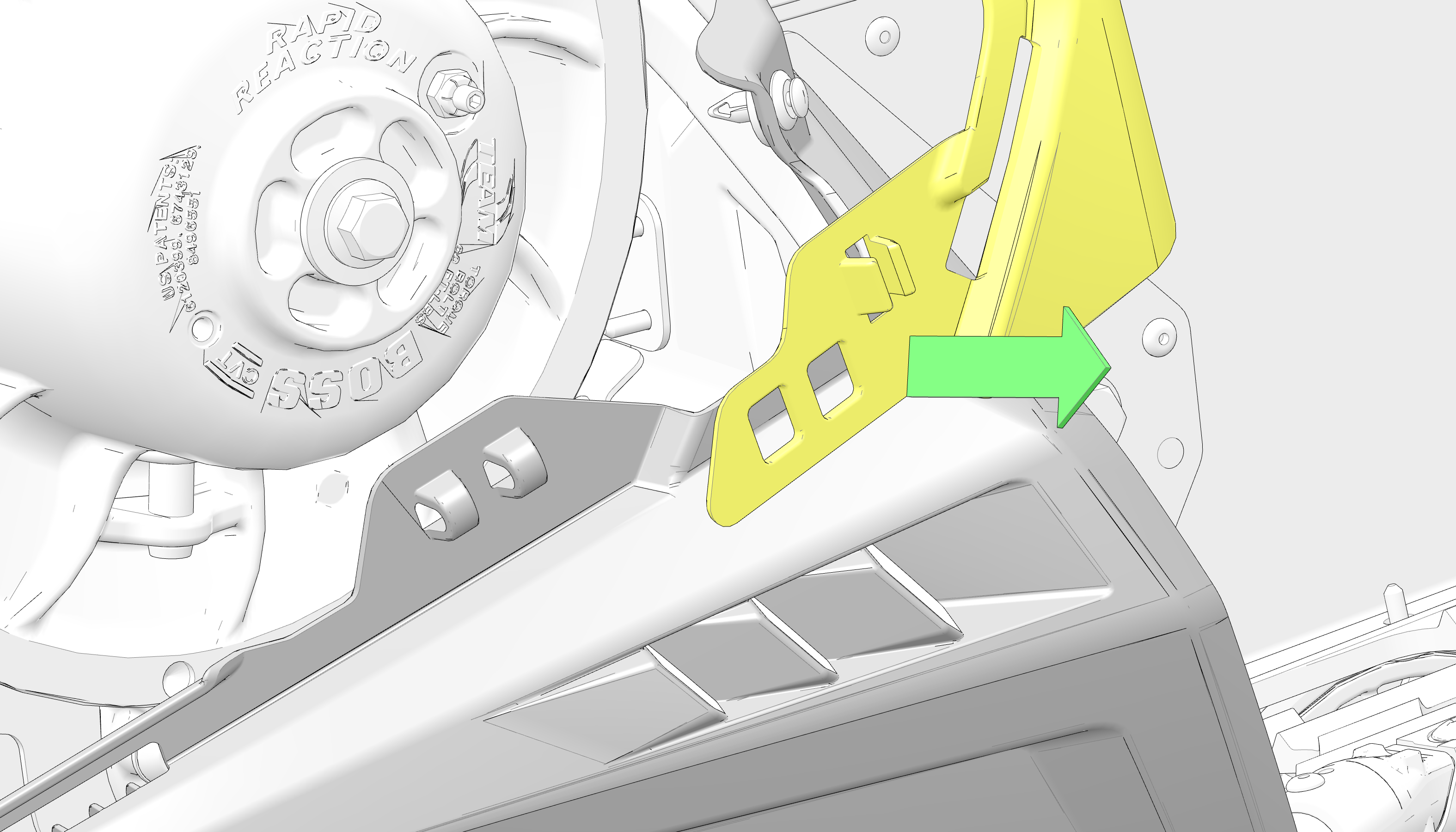

  9. Flex the console outward.

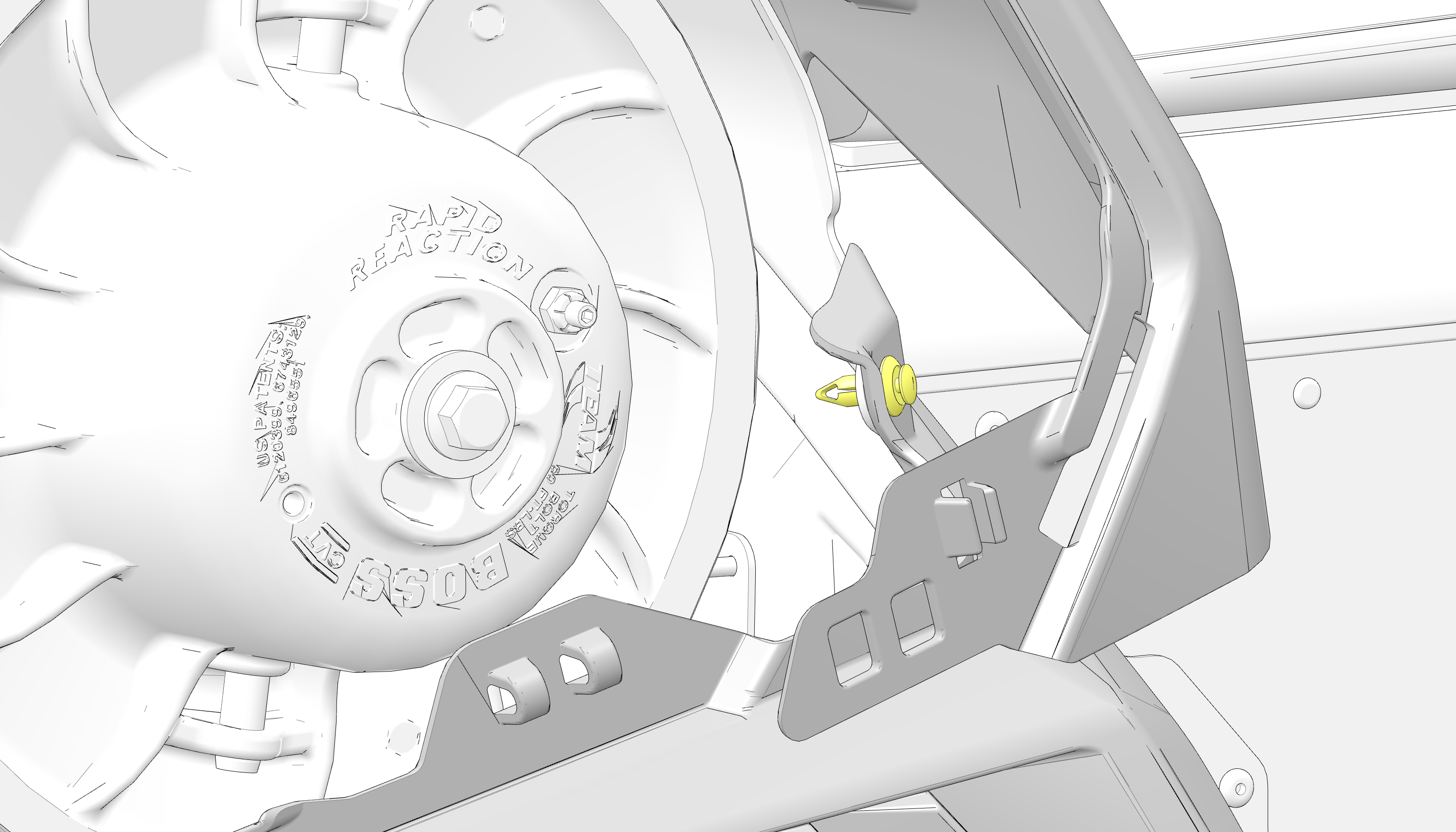

  10. Remove fender push bolt.

  11. Gently flex the fender outward.

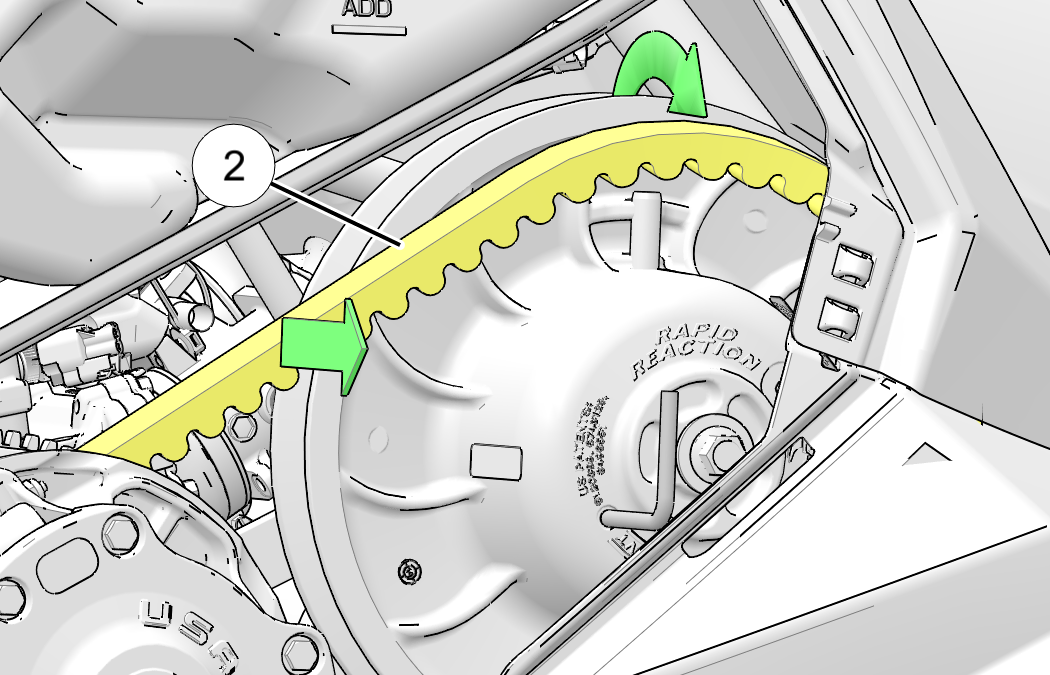

  12. Firmly grasp the belt 2 midway between and beneath the clutches and pull outward and rearward to remove it from the driven and then drive clutch.

Parent topic: Clutch System
