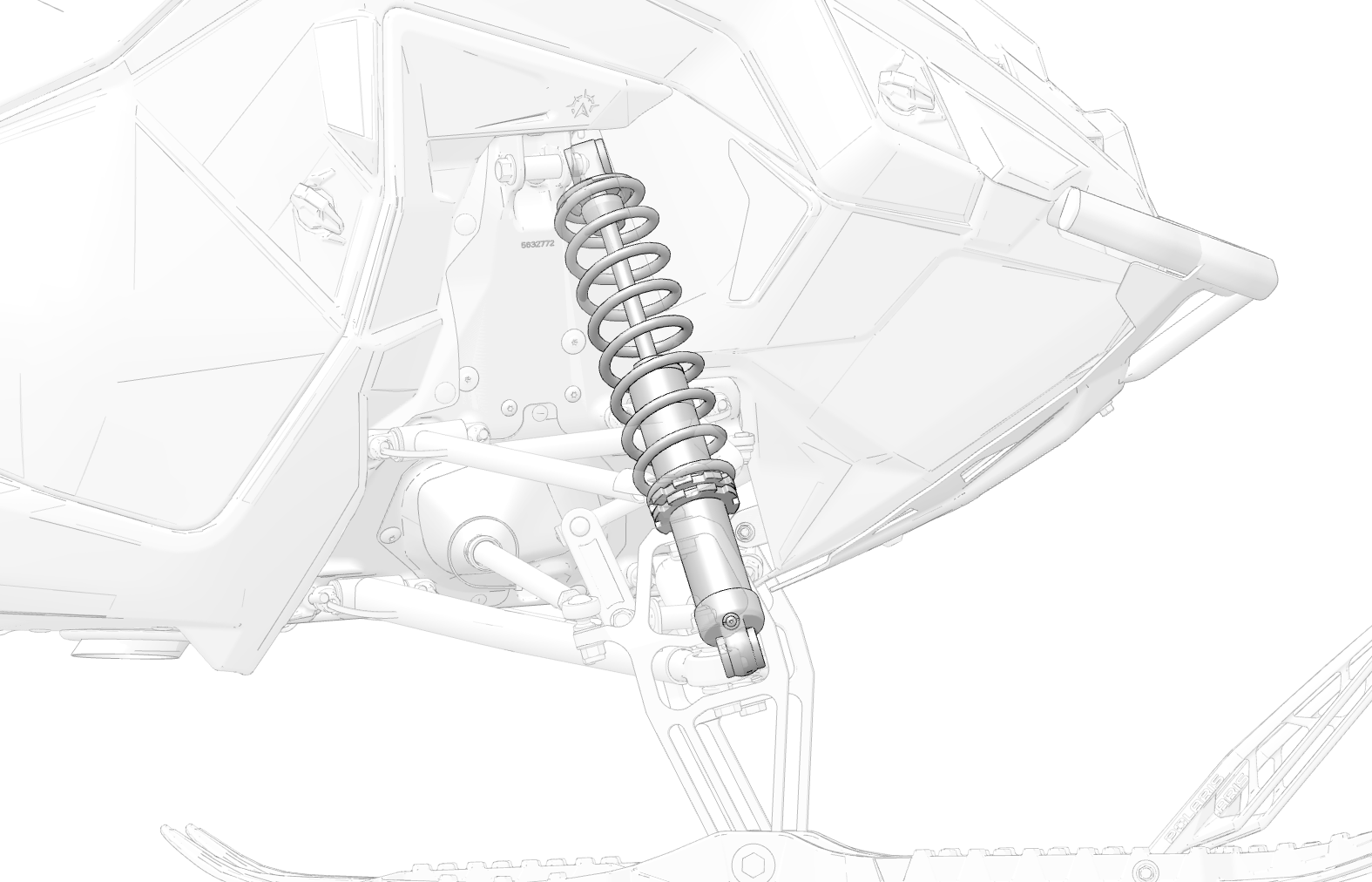

Front Suspension (IFS) Factory Shock Settings
 |
 |
Always perform shock spring preload adjustments with the weight of the vehicle removed from the shock and with the shock at full extension.
|
650 Titan SP |
850 Nordic Pro |
|
|---|---|---|
|

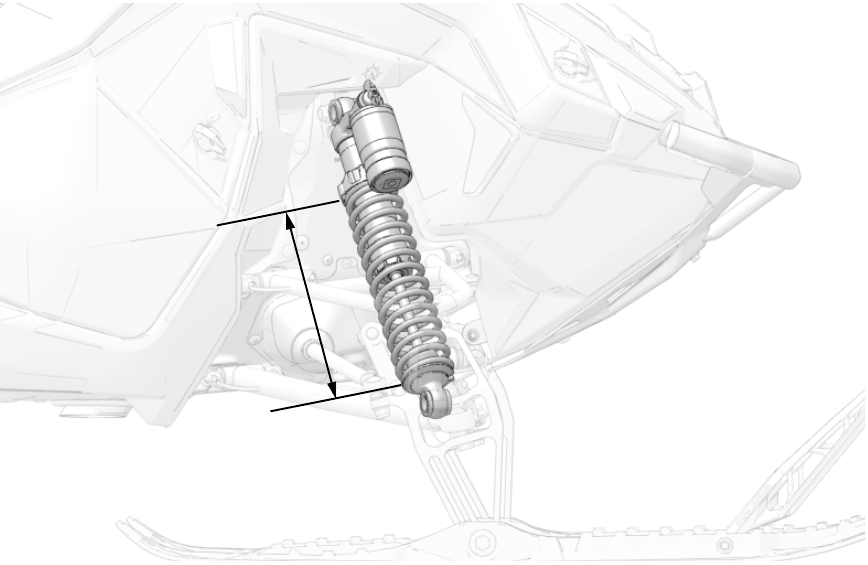

Factory Installed Length |
10.125 in (25.7 cm) |
10.43 in (25.7 cm) |
|
Minimum Installed Length |
9.3 in (23.62 cm) |
8.77 in (22.28 cm) |
|
Maximum Installed Length |
10.375 in (26.35 cm) |
10.675 in (27.11 cm) |
|
Clicker Position |
— |
2 (Middle) |
