Hood/Side Panel

CAUTION
The hood and side panels of the snowmobile protect the operator from moving parts. Never operate a snowmobile with the hood or side panels open or removed. Always ensure that the hood and side panels are securely in place before starting the engine.

Side Panels

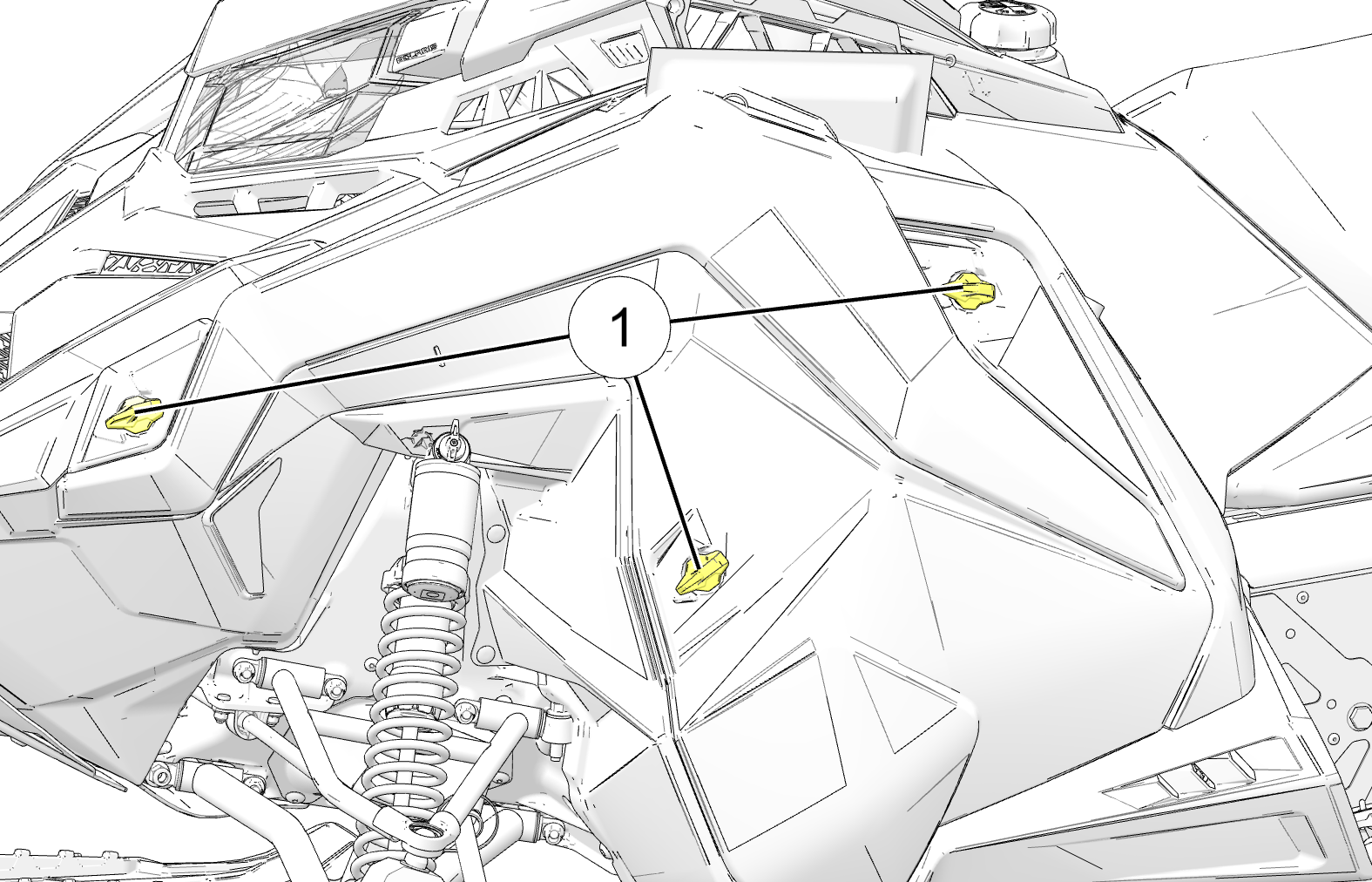

To open a side panel, rotate the three 1/4 turn fasteners 1 at the upper edges of the side panel. Release the side panel strap at the lower edge of the panel.

To remove an open side panel, pull the panel outward to release the tabs at the lower edge of the panel.


Hood

To remove the hood, do the following:

  1. Remove the left and right side panels.

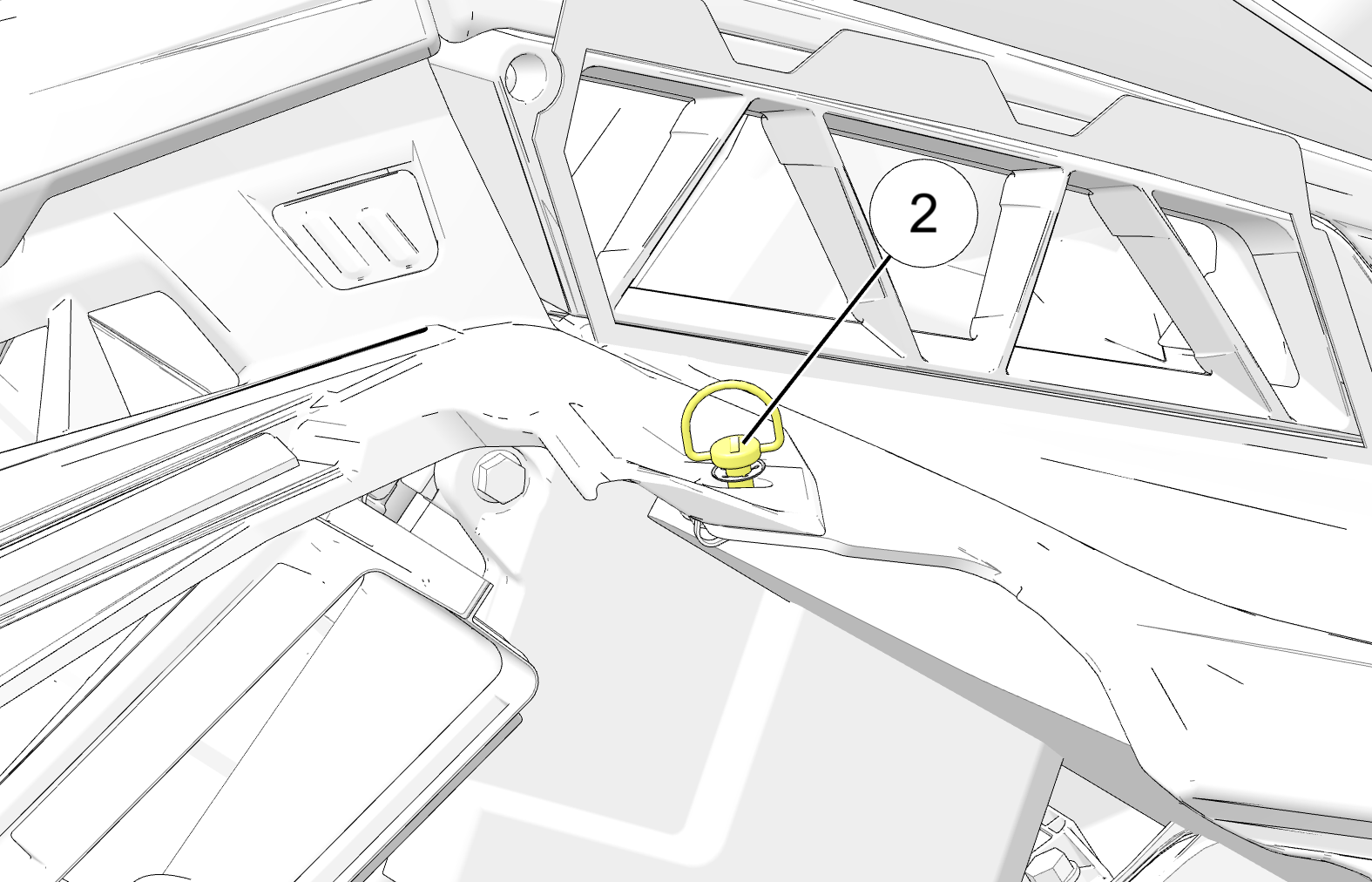

  2. Rotate the 1/4 turn fasteners 2 at the rear corners of the hood.

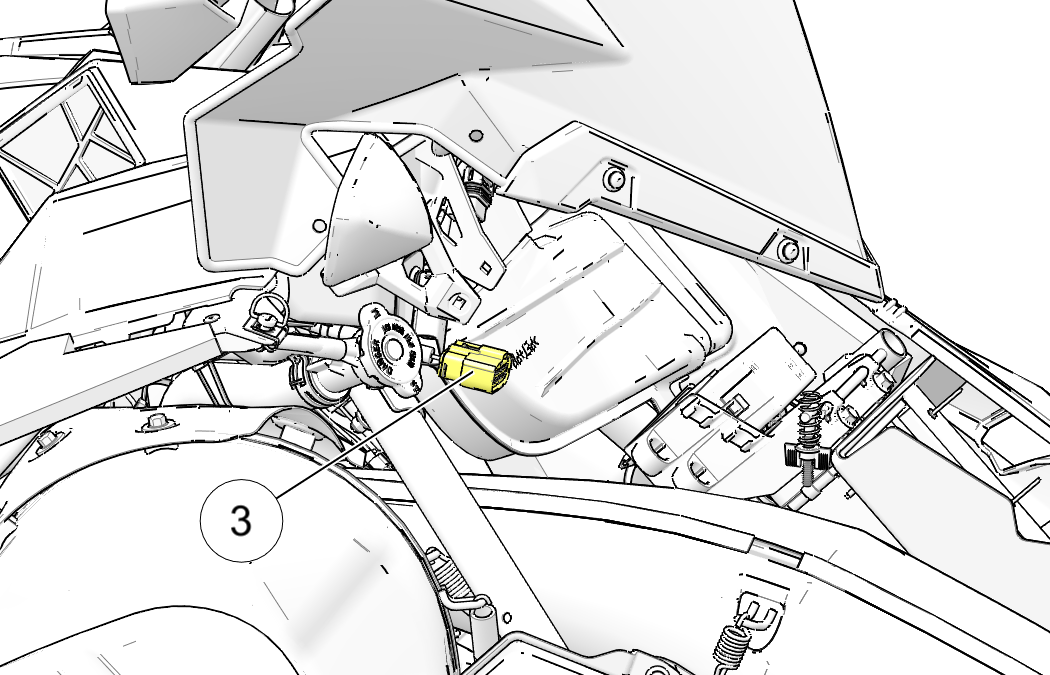

  3. Disconnect the hood wire harness connector 3.

  4. Remove the hood assembly from the vehicle.
