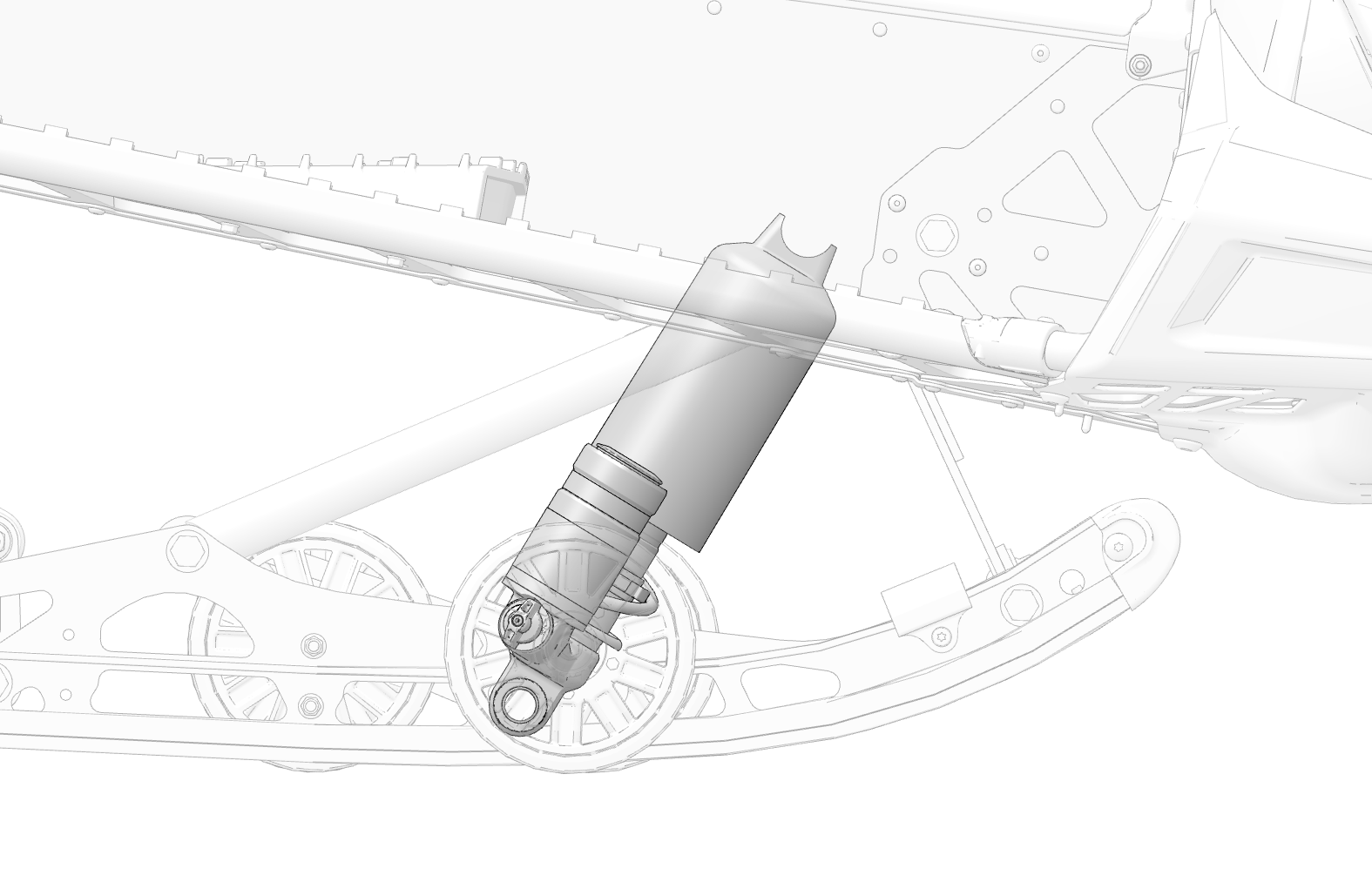

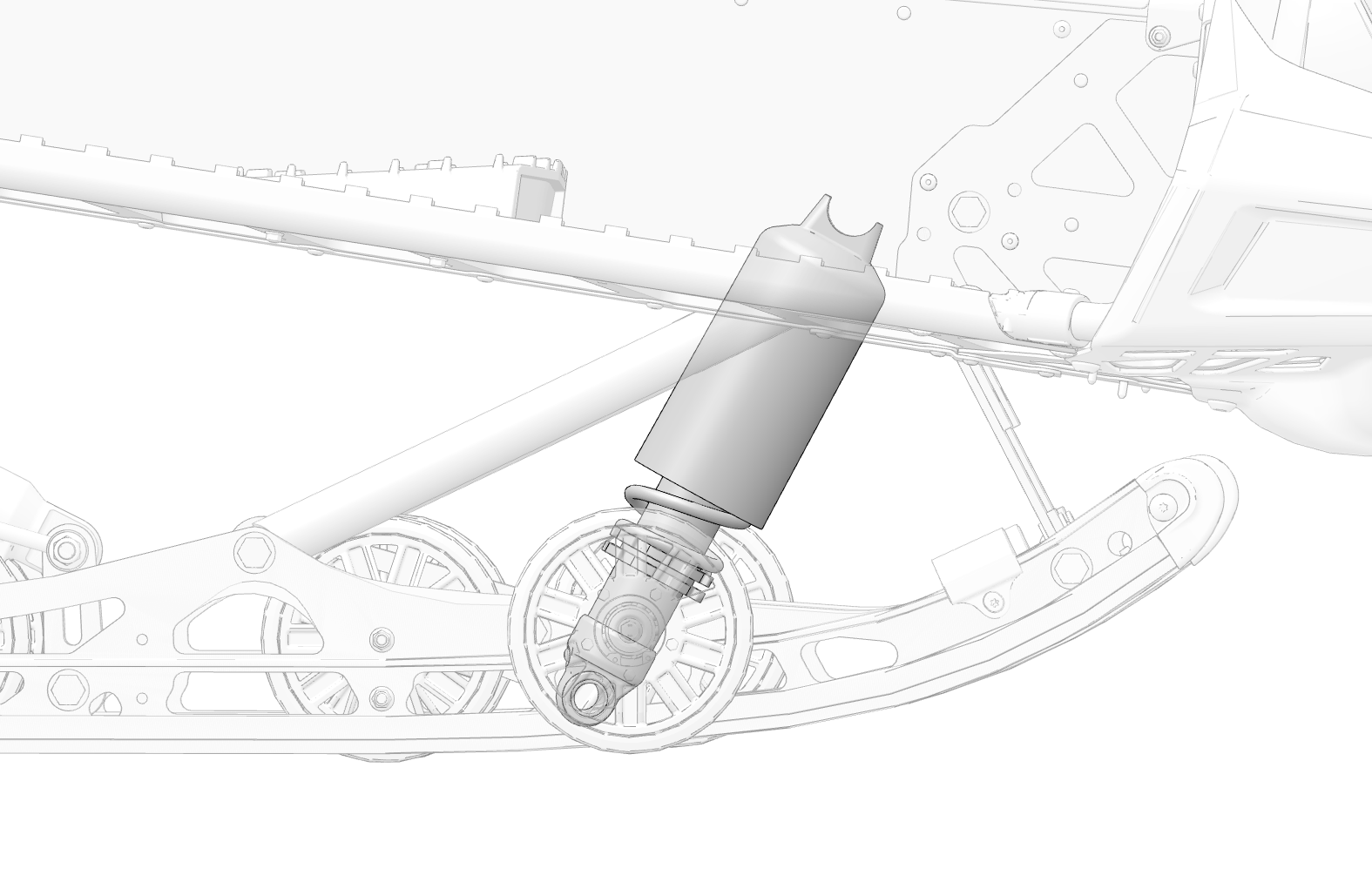

Front Track Shock Settings

Always perform shock spring preload adjustments with the weight of the vehicle removed from the shock and with the shock at full extension.

	650 Titan SP 650 / 850 Titan Adventure	850 Nordic Pro
Factory Installed Length	7.75 in (19.7 cm)	7.75 in (19.7 cm)
Minimum Installed Length	7.45 in (18.92 cm)	7.75 in (19.7 cm)
Maximum Installed Length	8.625 in (21.91 cm)	8.625 in (21.91 cm)
Clicker Position	—	2 (Middle)
