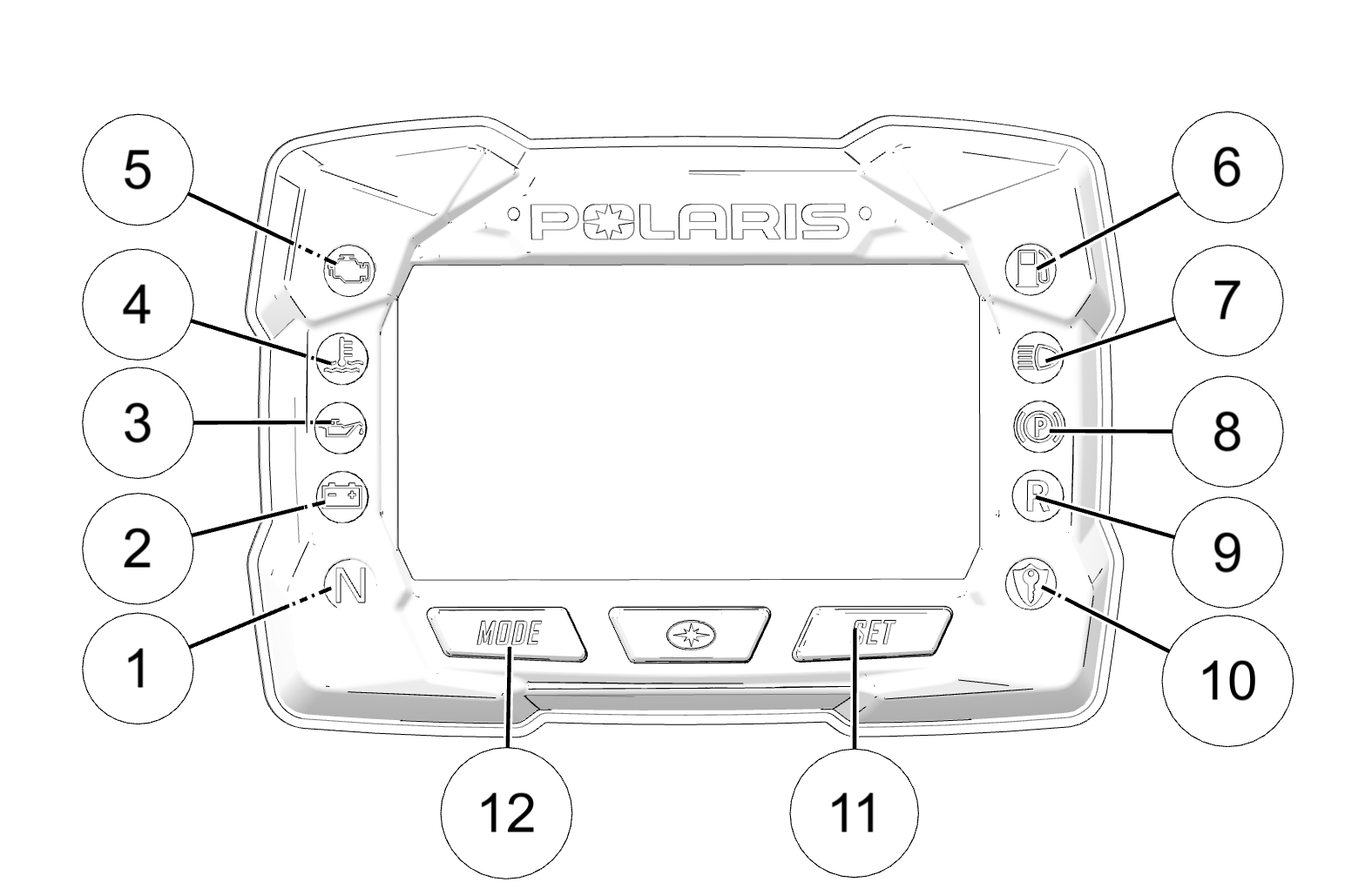

Standard Instrument Cluster

  • 1 Check Engine

  • 2 Engine Hot

  • 3 Low Oil

  • 4 Low Battery Voltage

  • 5 Playback

  • 6 Low Fuel

  • 7 High Beam

  • 8 Temporary Brake Lock

  • 9 Reverse

  • 10 Security

  • 11 SET Button

  • 12 MODE Button

NOTICE

Certain products will damage the lens and other plastic surfaces. Do not use alcohol to clean the instrument cluster. Immediately clean off any gasoline that splashes on the instrument cluster.

The instrument cluster contains indicator lights and the rider information center. The information center can be controlled by the SET button 11 and MODE button 12 on the instrument cluster.

In this section:

  1. Indicator Lamps
  2. Rider Information Center
  3. Security System (Ignition Lock System)
  4. Diagnostic Display Mode
