Torsion Spring Adjustments

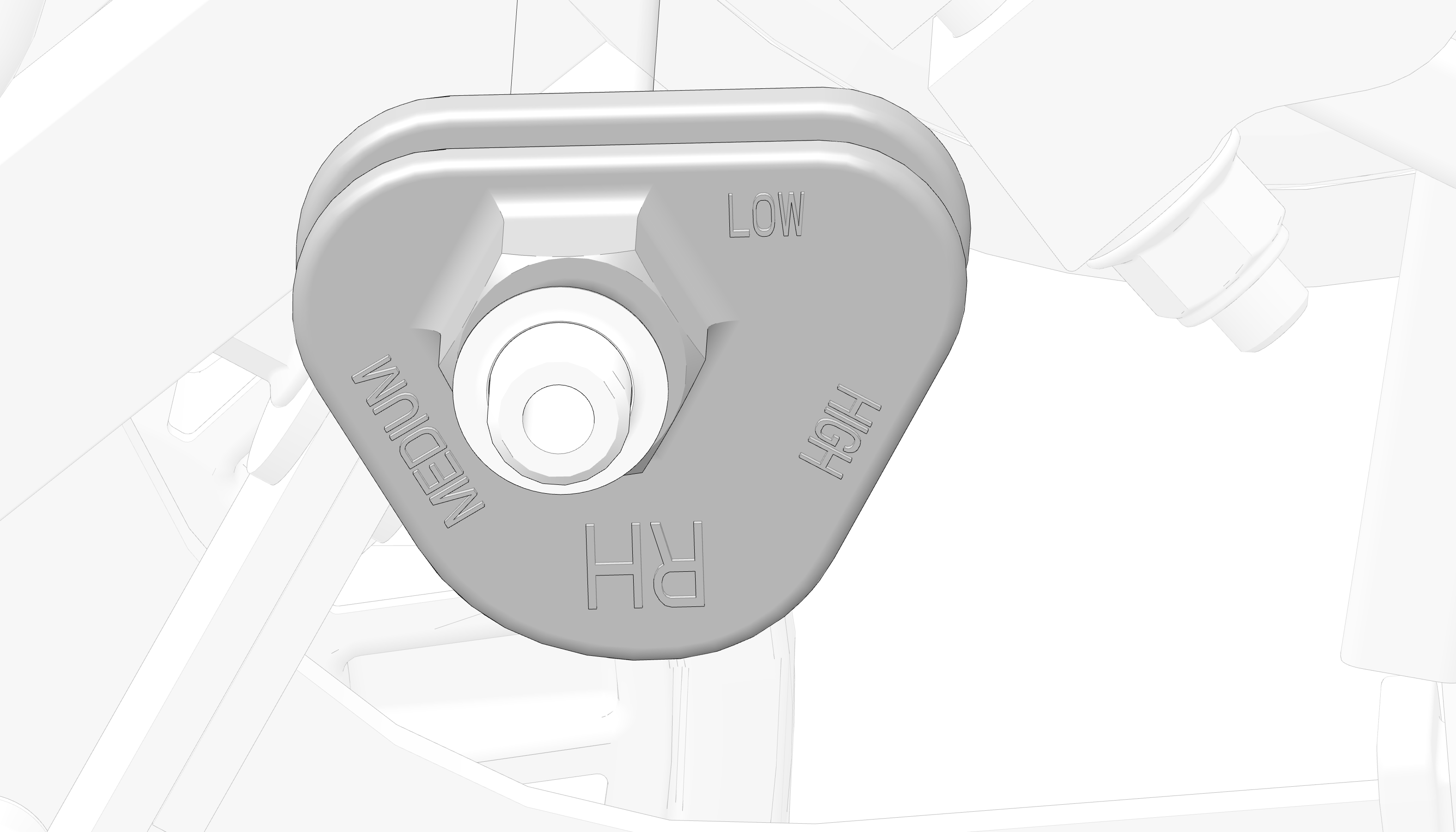

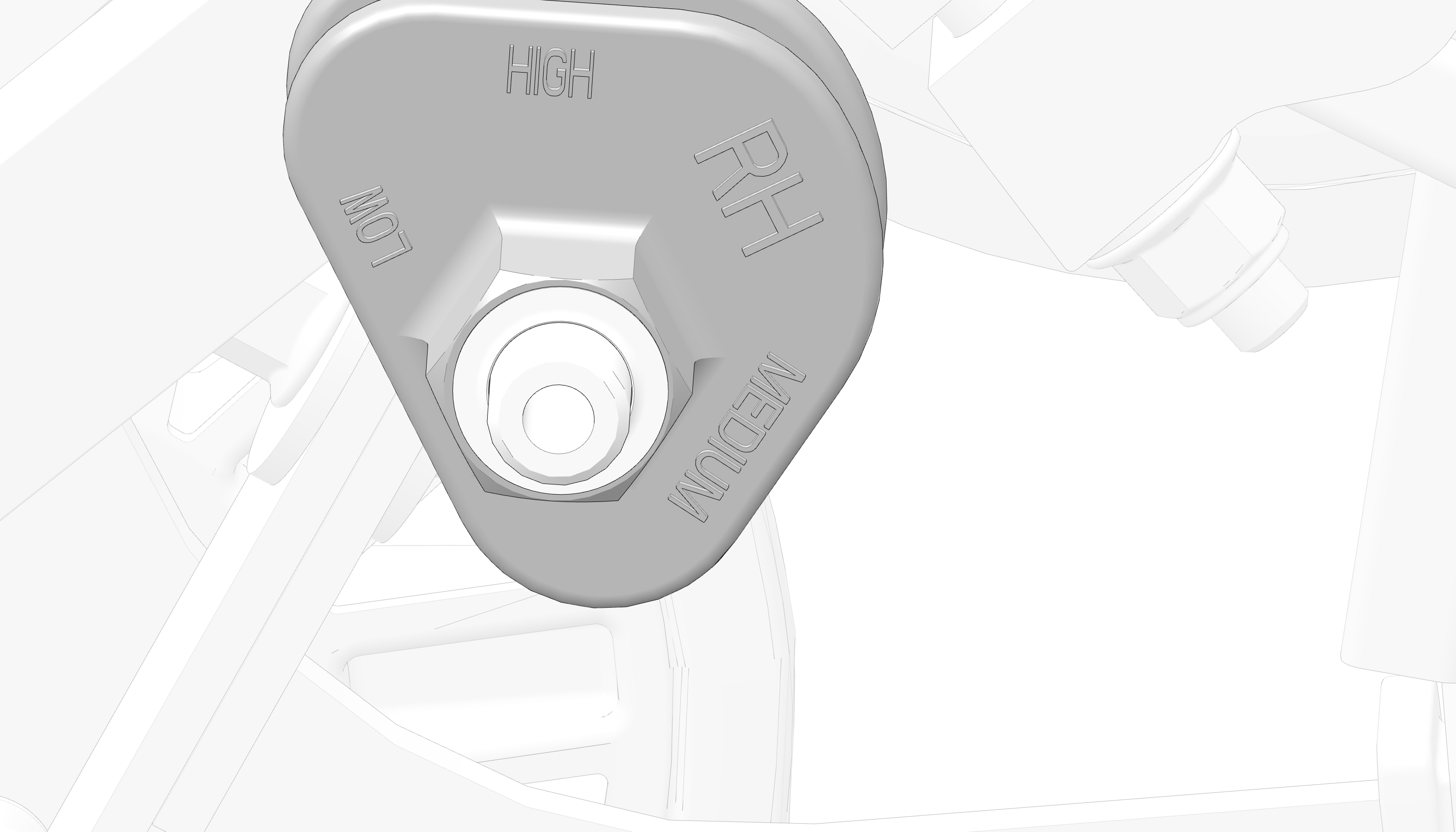

To adjust rear torsion spring preload, rotate the three-position cam using the engine spark plug tool. Adjustment is easiest when the cam is rotated from low to medium, and then to high. Rotating directly from low to high will require significantly more effort. Different rate torsion springs are available if a firmer ride is desired. See your authorized POLARIS dealer for more information.
 |
 |
 |
|
Soft |
Medium |
Firm |
All Matryx vehicles are equipped with standard stock rear track suspension springs. To customize your ride, rear torsion spring kits can be installed to accommodate your particular total rider weight range.
Titan / Voyageur 155 Torsion Spring Chart
| Kit Number | Part Number Description | Model Used (Stock) | Spring Description | Weight Range |
|---|---|---|---|---|
|
2891587 |
K-Spring UTL MD |
Voyageur 155 |
Utility Medium Duty |
0-250 lb |
|
2891618 |
K-Spring UTL HD |
Titan |
Utility Heavy Duty |
150-300 lb |
|
2891517 |
K-Spring UTL XHD |
Accessory only |
Utility Extra Heavy Duty |
300+ lb |
