Throttle Block Alignment

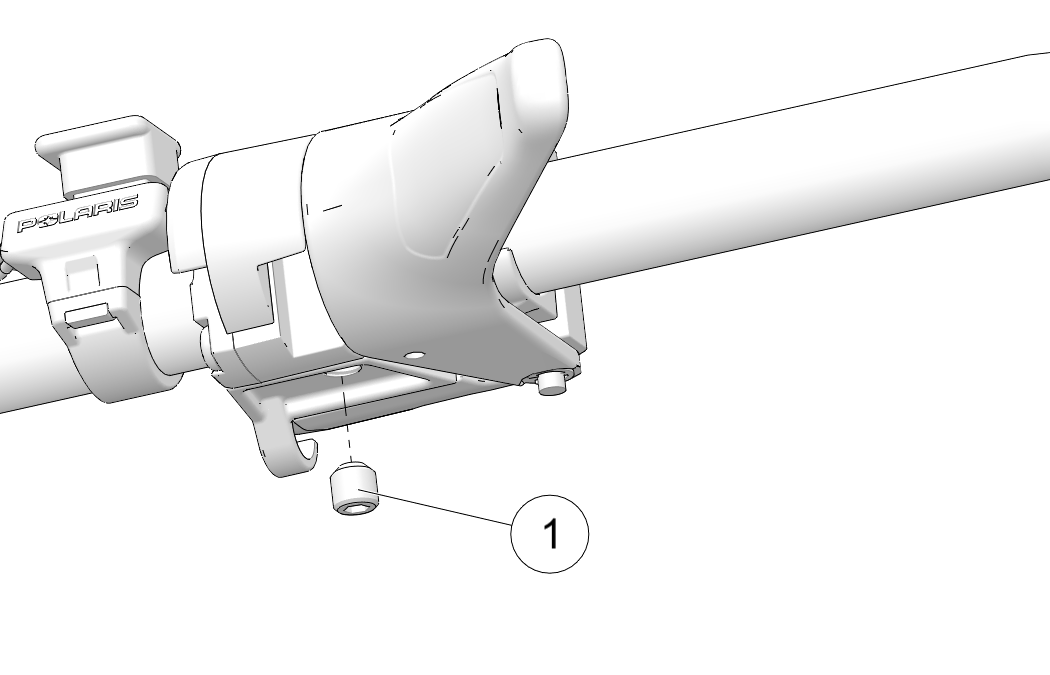

  1. Slightly loosen the set screw 1 on the bottom of the housing.

  2. Move the control block to the desired position.

    NOTICE

    Take care to avoid damaging hand warmer wires when moving components.

  3. Torque the screw to specification. Do not over-torque.

    TORQUE

    Throttle Block Set Screw:

    27 in-lbs (3 N·m)

  4. With the engine off, test throttle lever movement after tightening the screw. See Throttle Safety Switch.

Parent topic: Handlebar Settings
