Battery Installation

  1. Put the battery in the vehicle.

  2. Put dielectric grease on the battery terminal fasteners.

  3. Connect the red (positive) battery cable. Torque to specification.

    TORQUE

    Battery Terminal Fastener:

    36 in-lbs (4 N·m)

  4. Connect the black (negative) battery cable. Torque to specification.

    TORQUE

    Battery Terminal Fastener:

    36 in-lbs (4 N·m)

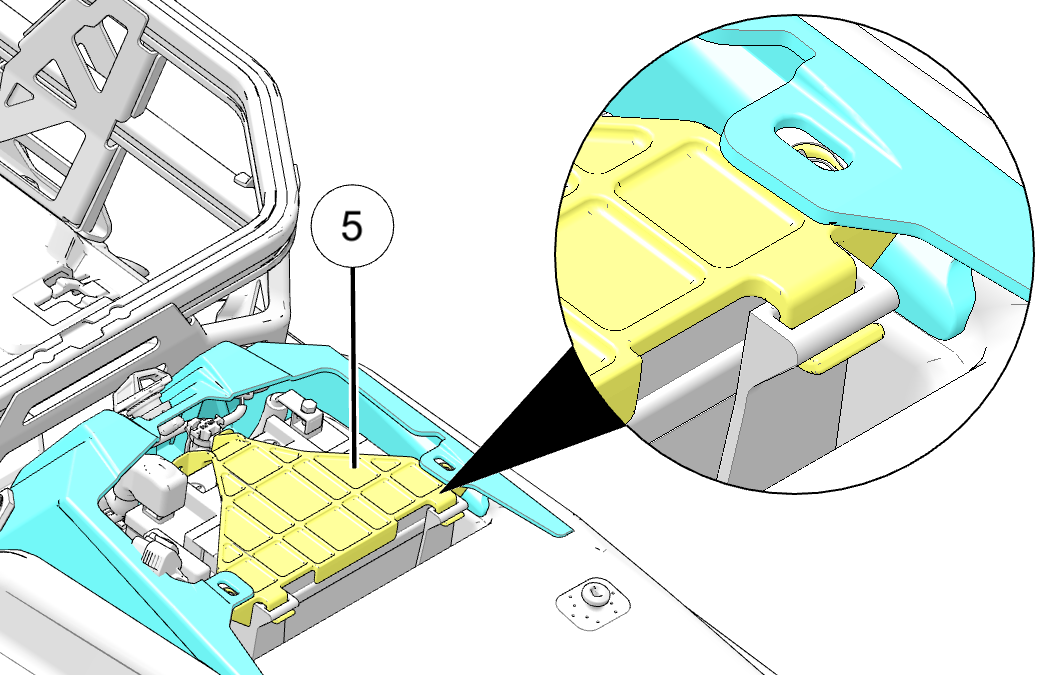

  5. Put the battery box cover 5 in the vehicle.

    STOP!

    Make sure the tabs are hooked into the battery box, and make sure the battery box cover is under the rear tank trim.

  6. Connect the accessory wire harness 3 to the retainer 4 or, if equipped with an accessory, connect the accessory wire harness to the accessory.

    NOTICE

    The rear tank trim and the cargo rack are transparent in this graphic to improve clarity.

  7. Install the battery box cover screw 2. Torque to specification.

    TORQUE

    Battery Box Cover Screw:

    13 in-lbs (1.5 N·m)

  8. Install the rear tank trim screws 1. Torque to specification.

    TORQUE

    Fuel Tank Trim Screw:

    35 in-lbs (4 N·m)

  9. Install the driver seat.

  10. Install the passenger seat.
