Spare Belt Holder / Tools

A driven clutch L-wrench and a spare belt holder are provided with the snowmobile. The spare belt holder has provisions for two spark plugs and is secured to the front bumper with the spark plug wrench. Open the left side panel and hood to access the tools.

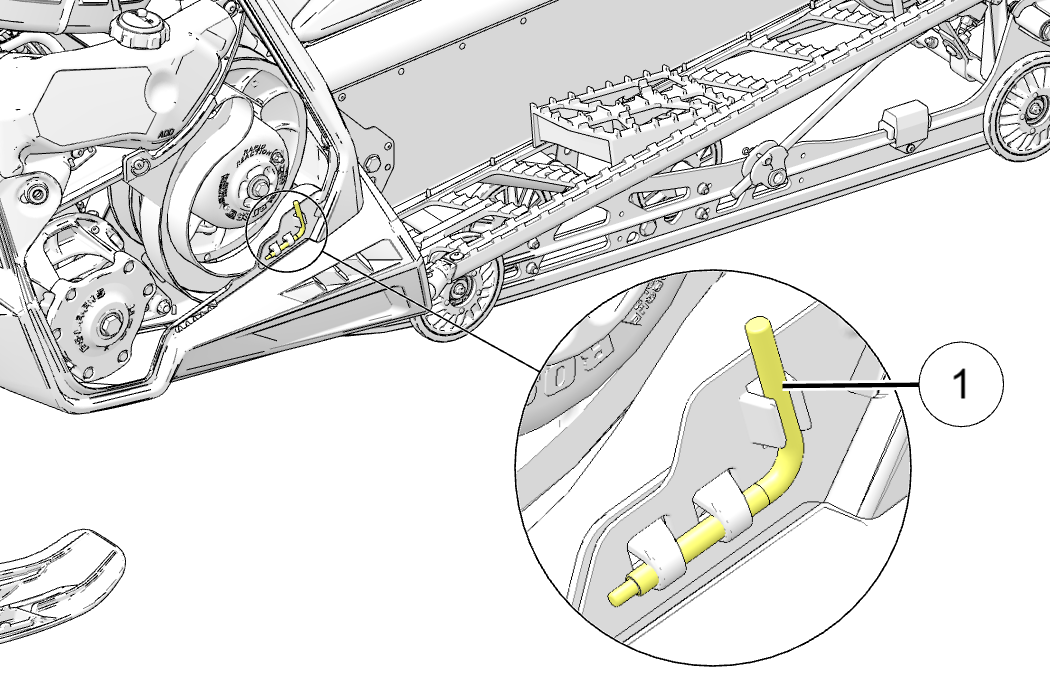

The L-wrench 1 (located under the left side panel) is used to open and close the driven clutch when working with the drive belt. The L-wrench, when properly engaged in the bracket, secures the fender to the console. To retrieve the L-wrench, rotate it counterclockwise and slide it upward from the bracket. When the L-wrench is not in use, return it to the bracket and rotate it clockwise.

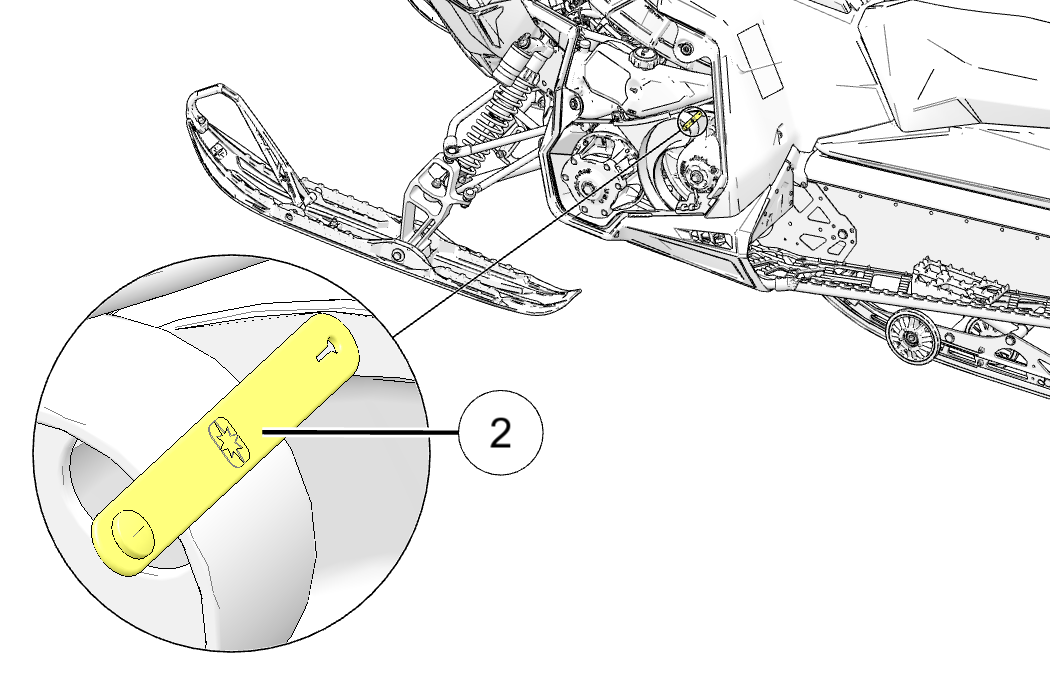

If you have a spare belt, use the spare belt strap 2 (located under the left side panel) to hold the belt in place.

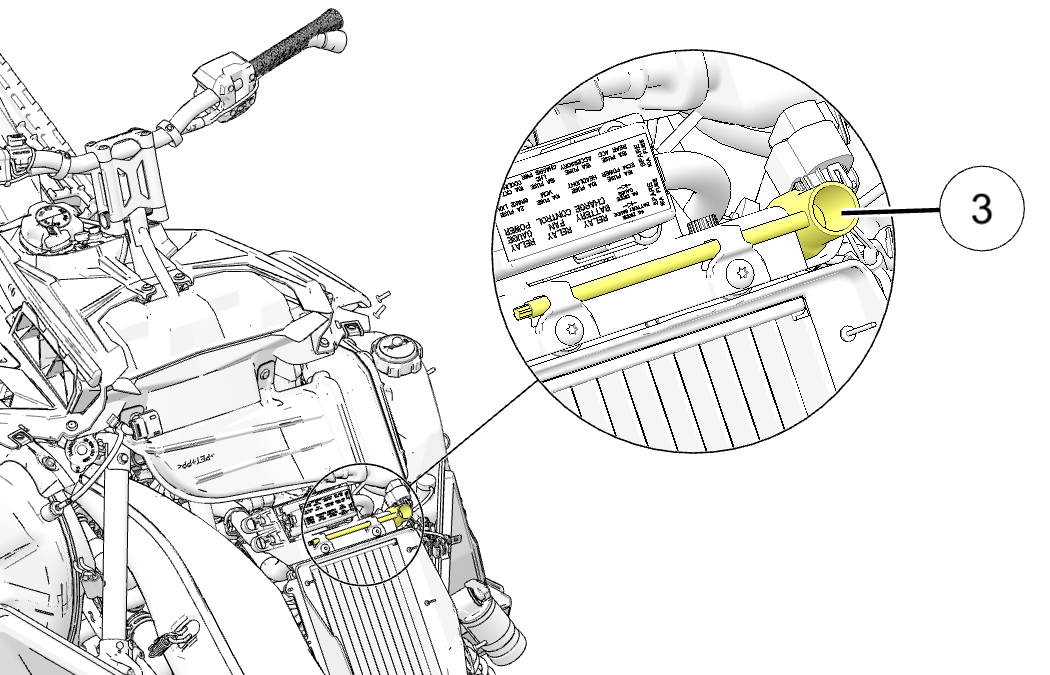

To retrieve the spark plug wrench 3 (located under the hood), rotate the wrench counterclockwise and slide it outward from the bracket. When the wrench is not in use, return it to the bracket and rotate it clockwise.

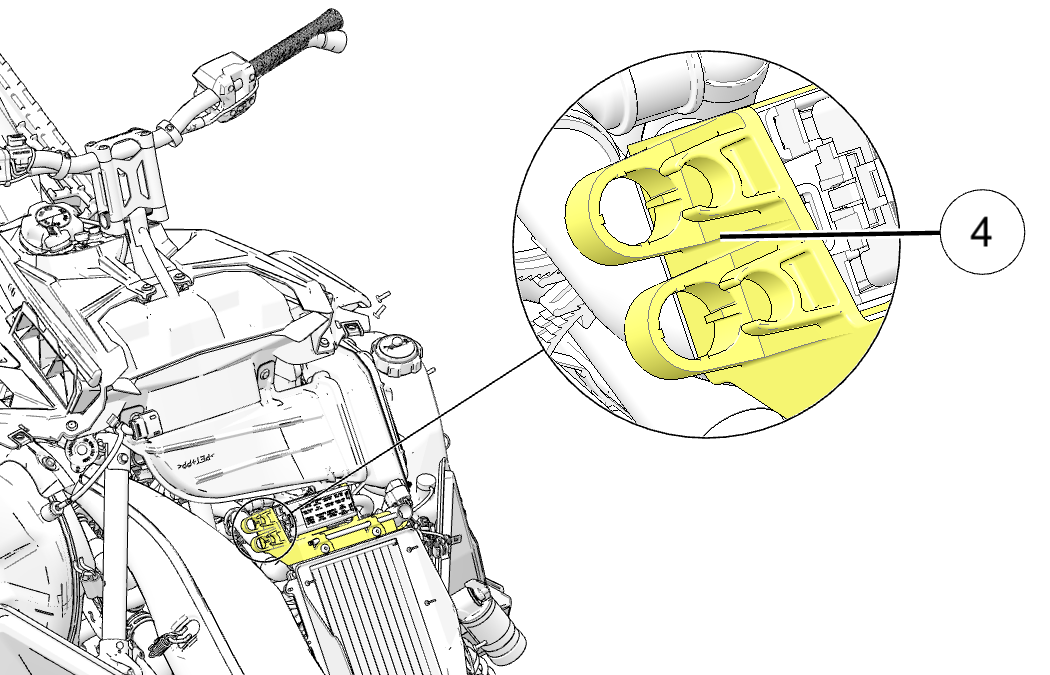

The spark plug case 4 (located under the hood), can hold spare spark plugs. The spare spark plugs are not included with the vehicle from the factory.

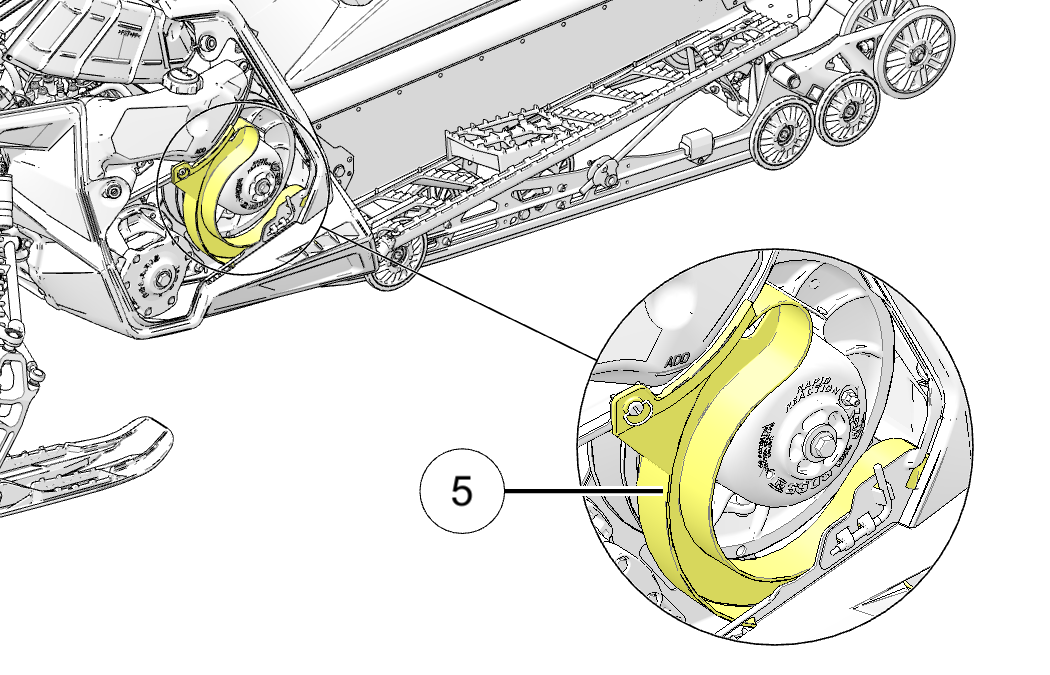

The spare belt holder 5 (located under the left side panel) is attached to the clutch guard.

Use the following procedure to remove the spare belt holder from the snowmobile.

1. Remove the left side panel.

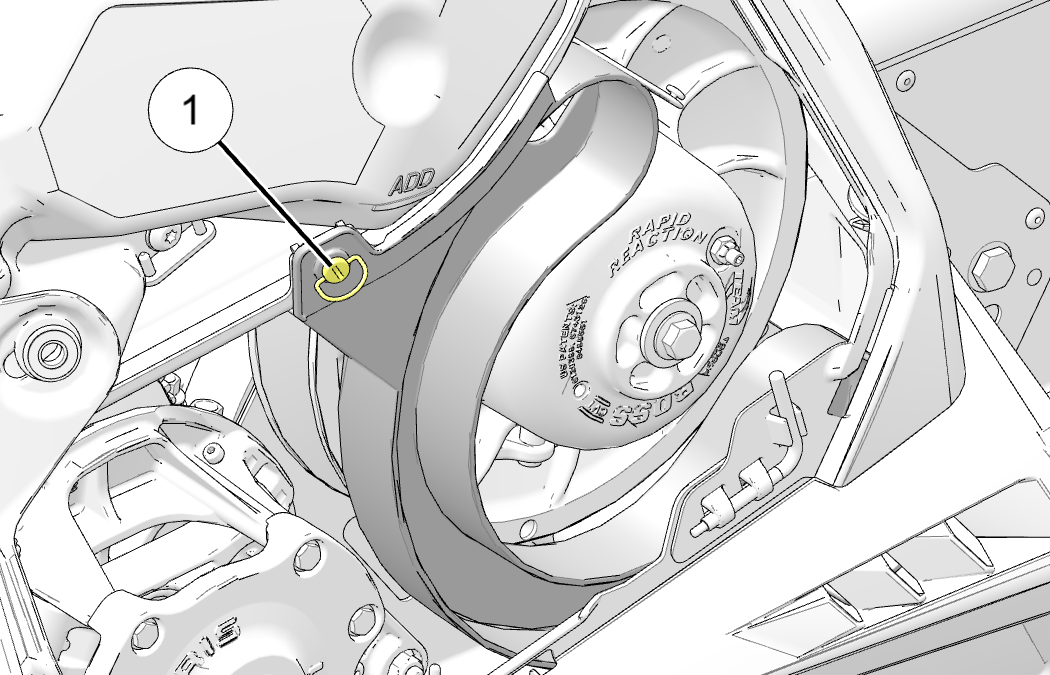

2. Rotate the 1/4 turn fastener 1 at the top of the spare belt holder.

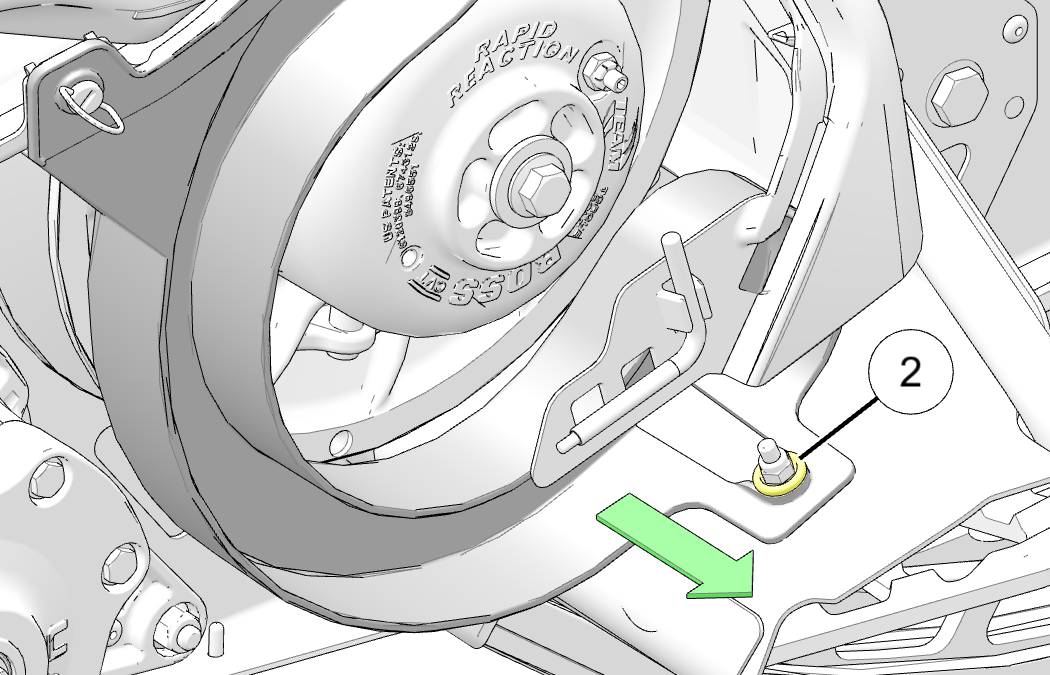

3. Slide the spare belt holder outward to release it from the mount 2 on the footrest.

   NOTICE

   Fender has been hidden for image clarity.



4. Lift upward and remove the spare belt holder.

5. Reinstall the drive belt into the spare belt holder.

6. Install and align spare belt holder mounting points.

7. Slide the belt holder inward to secure it to the mount on the footrest.

8. Rotate the 1/4 turn fastener to secure the spare belt holder.
