IMPORTANT

The Owner's Manual for this vehicle contains warnings, instructions and other information you must read and fully understand before safely riding or performing maintenance on this vehicle. Always follow the warnings and instructions in Owner's Manual.

Click the link above for the Table Of Contents, or download a full PDF of the Owner Manual in the Owner Support area of Polaris.com.

Engine Stop Switch Alignment

CAUTION

The stop switch must be positioned in an easily accessible location.

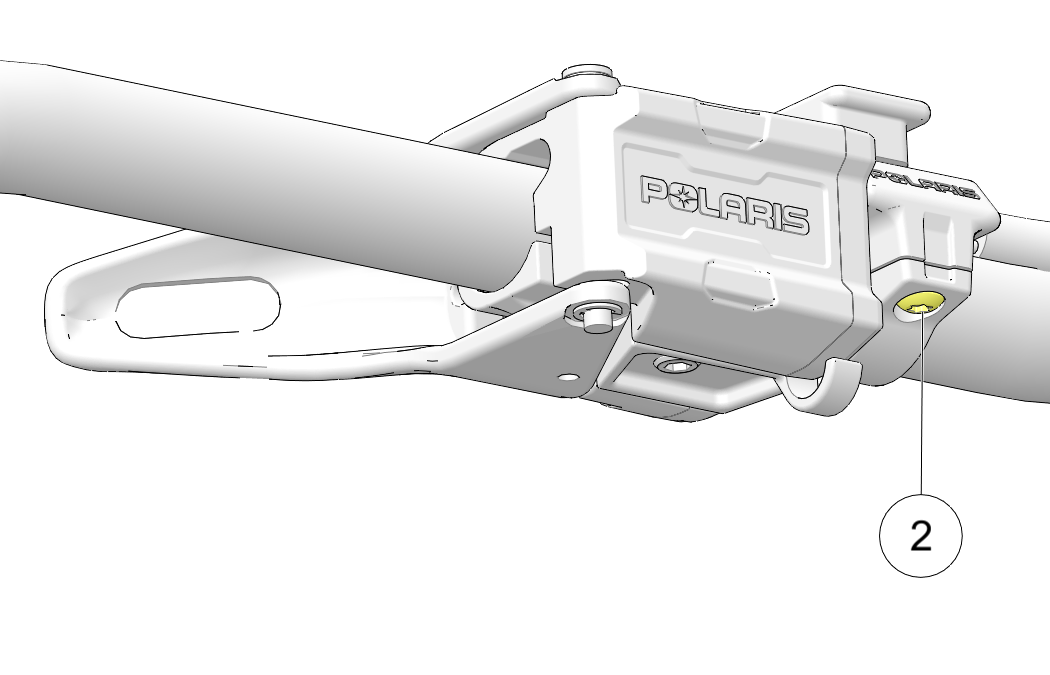

  1. Slightly loosen the set screw on the bottom of the housing 2.

  2. Move the switch to the desired position.

  3. Tighten the screw to specification. Do not over-torque.

TORQUE

Stop Switch Set Screw:

20 in-lbs (2.3 N·m)

Parent topic: Handlebar Settings
