Limiter Strap Adjustment

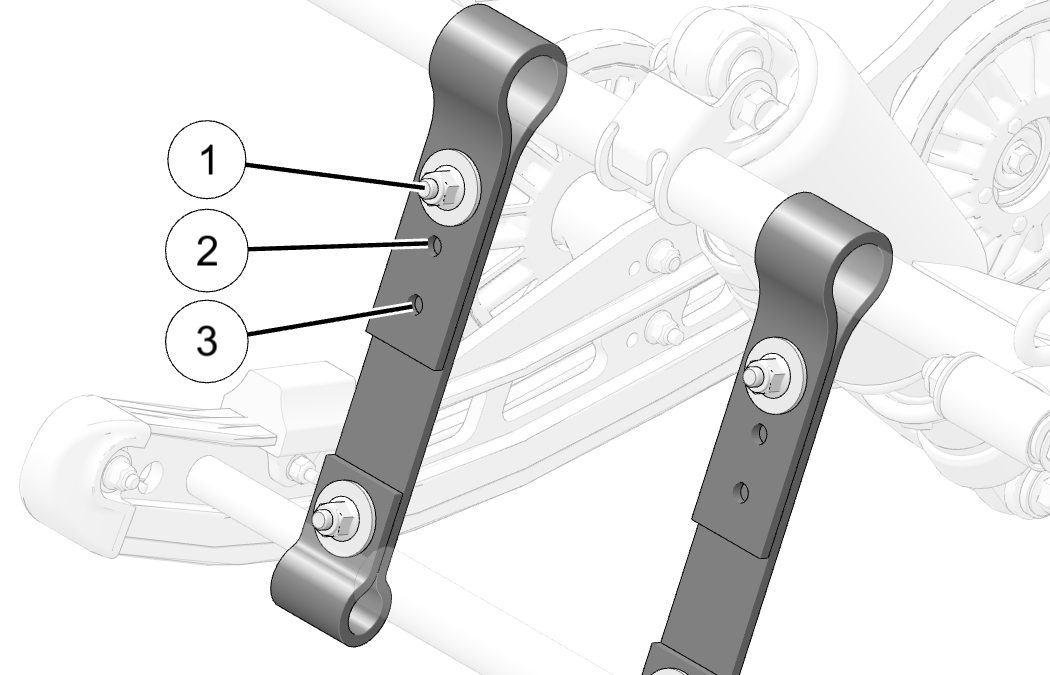

The front torque arm limiter straps
are factory set at position 1.
The front torque arm limiter strap setting should NOT be changed
from position 1. If the fasteners have been removed for rear
suspension service, make sure to torque the limiter strap nuts to
specification.
TORQUE
Limiter Strap Nut:
12 ft-lbs (16 N·m)
IMPORTANT
Do NOT change the front torque arm limiter strap setting.
