Drive Belt Deflection Inspection

Measure belt deflection with both clutches at rest and in their full neutral position.

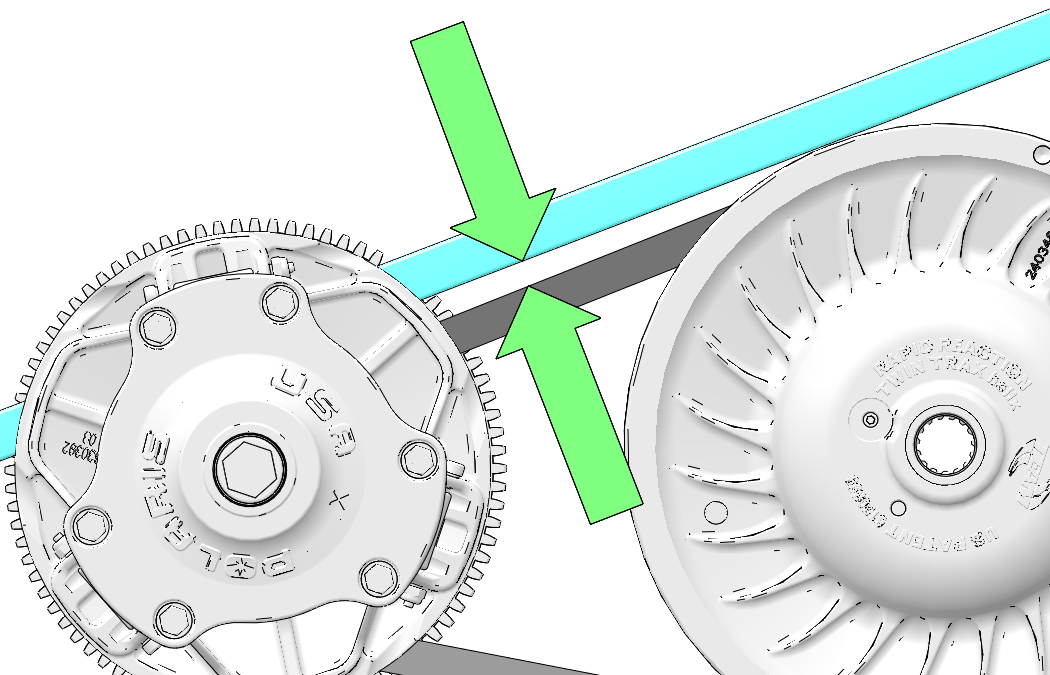

Put a straight edge on the belt and apply downward pressure on the belt while measuring at point. This measurement should be 1.25 in (31.75 mm).
